FSC-BT1026 programming user guide

Introduction

Description

This design guide is suitable for engineers to develop FSC-BT1026 series Bluetooth modules, also suitable for BT806、BT802、BT1006 series modules

Module Default Settings

Name	FSC-BT1026-XXXX
LE-Name	FSC-BT1026-LE-XXXX
Pin Code	0000
Secure Simple Pairing Mode	ON
UART Baudrate	115200/8/N/1

Hardware Description

Pin Diagram

FSC-BT1006 as an example:

Pin Description

Pin	Pin Name	Type	Pin Descriptions
4	I2S_CLK	I/O	I2S BCLK
5	I2S_IN	I	I2S DATA IN
6	I2S_OUT	O	I2S DATA OUT
7	I2S_WS	I/O	I2S SYNC
8	RESET	I	External reset input: active Low
13	UART_TX	O	UART TX
14	UART_RX	I	UART RX
15	UART_CTS	I/O	UART CTS
16	UART_RTS	I/O	UART RTS(default: PA mute pin)
17	LED0	I/O	Output square wave in pairing mode, output high level when bluetooth is connected
18	LED1	I/O	SPP/GATT is not connected to output low level, connected to output high level
32	GND	GND	GND
33	VDD	VDD	Power supply for I/O ports, DC 3.3V
34	VREG_IN	I	Typically connected to an ON/OFF push button
36	VDD_IO	I	pio supply
43	MIC_LP	Audio	MIC0/Line_IN differential L input, positive
44	MIC_LN	Audio	MIC0/Line_IN differential L input, negative
45	MIC_BIAS	Audio	MIC Power Supplies
46	SPK_RN	Audio	Headphone/speaker differential R output, negative
47	SPK_RP	Audio	Headphone/speaker differential R output, positive
48	SPK_LN	Audio	Headphone/speaker differential L output, negative
49	SPK_LP	Audio	Headphone/speaker differential L output, positive
51	EXT_ANT	ANT	Change the 0 ohm resistance near the antenna, you can connect an external Bluetooth antenna

Hardware Design Notes

The simple test of the module only needs to connect VDD/VDD_IO/VREG_IN/GND/UART_RX/UART_TX to use
VREG_IN defaults to ON/OFF push button. Power on: short press for 1 second. Power off: long press for 3 seconds.
If no ON/OFF push button is required, the power-on delay is 100ms before pulling up VREG
After drawing the schematic diagram, please send it to Feasycom for review,so as to avoid the Bluetooth distance not reaching the best effect

Function Description

Profiles & Features

SPP (Serial Port Profile)
GATTS (Generic Attribute Profile LE-Peripheral role)
GATTC (Generic Attribute Profile LE-Central role)
HFP-HF (Hands-Free Profile)
HFP-AG (Hands-Free-AG Profile)
A2DP-Sink (Advanced Audio Distribution Profile)
A2DP-Source (Advanced Audio Distribution Profile)
AVRCP-Controller (Audio/Video remote controller Profile)
AVRCP-Target (Audio/Video remote controller Profile)
HID-DEVICE (Human Interface Profile)
PBAP (Phonebook Access Profile)

GATT Default service and characteristic

Type	UUID	Characteristic	Description
Service	0xFFF0		throughput services
Write	0xFFF2	Write，Write Without Response	app send to module
Notify	0xFFF1	Notify	module send to app

Command Description

Terms

Throughout this specification:
Content between { } is optional
Content behind << represents a COMMAND from Host
Content behind >> represents a RESPONSE/EVENT to Host

Command Format

AT+Command{=Param1{,Param2{,Param3…}}}<CR><LF>

All commands start with “AT”, end with <CR><LF>
<CR> means “carriage return”, corresponds to hex value 0x0D
<LF> means “line feed”, corresponds to hex value 0x0A
If Command has Parameter, Parameter follows behind ‘=’
If Command has multiple Parameters, Parameter must be separated by ‘,’
If Command has Response, Response starts with <CR><LF>, ends with <CR><LF>
Module will always report command’s execution result by using “OK” for success or “ERROR” for failure

Example:Read module’s BR/EDR local name
<< AT+NAME
>> +NAME=FSC-BT1026-XXXX
>> OK

Example:Pick up an incoming call when no call incoming actually
<< AT+HFPANSW
>> ERROR

Event Format

<CR><LF>+Indication{=Param1{,Param2{,Param3…}}}<CR><LF>

All Events start with <CR><LF>, end with <CR><LF>
If Event has Parameter, Parameter follow behind ‘=’
If Event has multiple Parameters, Parameter must be separated by ‘,’

Example: Received “1234567890” from mobile phone via SPP profile
>> +SPPDATA=10,1234567890

Example: Dial number “10086” using a mobile phone when HFP connected
>> +HFPSTAT=4
>> +HFPAUDIO=1
>> +HFPCID=10086
>> +HFPSTAT=6

Commands Table

General Commands

AT+HELP - Firmware Function/Command Summary

Command	AT+HELP
Response	<FIRMWARE FUNCTION: appropriate working scenario > <OTA PATH: latest suitable firmware path on server for upgrade On-The-Air> <ENABLED PROFILES: LINKS: ON/OFF> … … <COMMAND SUMMARY: DESCRIPTION: PROFILE CATEGORY>
Description	Using help command to get the basic summary information

AT+VER - Get Firmware Version

Command	AT+VER
Response	+VER=Param1,Param2,Param3
`Param1`	Module type
`Param2`	Firmware version
`Param3`	Firmware Compile time

Example:
<< AT+VER
>> +VER=BT1036,V2.6.1,20220922
>> OK

AT+BAUD - Get/Set Uart Baudrate

Command	AT+BAUD{=Param}
`Param`	9600/19200/38400/57600/115200(default)/230400/460800/921600
Response	+BAUD=Param
Description	Module will change baudrate to target value immediately or after reboot depending on firmware

Example:Read module’s baudrate
<< AT+BAUD
>> +BAUD=115200
>> OK

<< AT+BAUD=921600
>> OK
Module switch baudrate to 921600 immediately, host change baudrate as well, query module’s name at new baudrate
<< AT+NAME
>> +NAME=FSC-BT1036-1F26
>> OK

AT+I2SCFG - Get/Set I2S Settings

Command	AT+I2SCFG{=Param}
`Param`	A base-10 representation of a bit field, default:0, for each bit
`BIT[0]`	0:disable; 1:enable
`BIT[1]`	0:master; 1:slave
`BIT[2]`	0:FS=48000Hz;1:FS=44100Hz
`BIT[3]`	0:left justified; 1:right justified
`BIT[4]`	0:data 1 bit delay; 1:data no delay
`BIT[5-6]`	00: bit depth=16bits 01: bit depth=24bits 10: bit depth=32bits
`BIT[7]`	0:WS at high level，SD data is right channel 1:WS at high level，SD data is left channel
Response	+I2SCFG=Param
Note	BIT[4] is valid only at the condition of BIT[3]=0. BIT[7] Partial firmware support

Example:usual configuration and description

1	I2S Master; Sample rate=48000Hz; Resolution=16bits; Bit clock= 48000162ch=1.536Mhz
3	I2S Slave; Sample rate=48000Hz; Resolution=16bits; Bit clock= 48000162ch=1.536Mhz
65	I2S Master; Sample rate=48000Hz; Resolution=32bits; Bit clock= 48000322ch=3.072Mhz
67	I2S Slave; Sample rate=48000Hz; Resolution=32bits; Bit clock= 48000322ch=3.072Mhz

AT+SPDIFCFG - SPDIF Format Configuration

Command	AT+SPDIFCFG{=Param}
`Param`	0-Disable SPDIF for audio output 1-Enable SPDIF for audio output

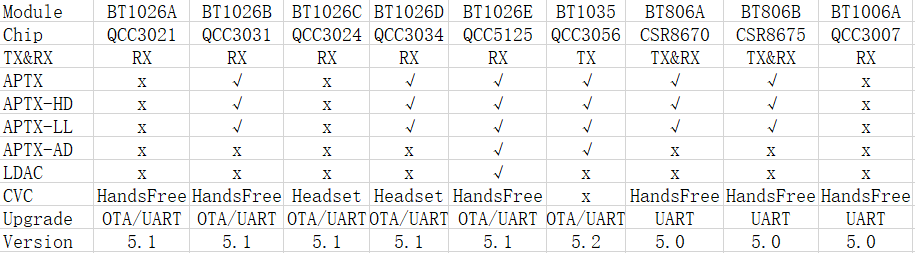

Description	SPDIF output only support: BT802、BT806、BT1026A、BT1026C、BT1026E If the audio output is spdif, the I2S configuration is invalid.

AT+MICGAIN - Get/Set Analog Input Gain

Command	AT+MICGAIN{=Param}
`Param`	Gain (‘+’ / ‘-‘)
Description	Adjust input gain

AT+SPKVOL - Get/Set Analog Output Volume

Command	AT+SPKVOL{=Param}
`Param`	Volume (‘+’ / ‘-’, default:15)
Description	Adjust Output volume, Adjust A2DP volume when play music,adjust HFP volume when talking

AT+REBOOT - Soft Reboot

Command	AT+REBOOT
Response	OK
Description	Module release all Bluetooth connections with remote device then reboot

AT+RESTORE - Restore Factory Settings

Command	AT+RESTORE
Response	OK
Description	Module restore all factory settings then reboot

AT+BTEN - Bluetooth On/Off

Command	AT+BTEN{=Param}
`Param`	0-Power off 1-Power on
Note	This command does not save data upon power loss.

AT+PROFILE - Bluetooth Profile Selection

Command	AT+PROFILE{=Param}
`Param`	A base-10 representation of a bit field, for each bit:
`BIT[0]`	SPP (Serial Port Profile)
`BIT[1]`	GATT Server (Generic Attribute Profile)
`BIT[2]`	GATT Client (Generic Attribute Profile)
`BIT[3]`	HFP-HF (Hands-Free Profile Handsfree)
`BIT[4]`	HFP-AG (Hands-Free Profile Audio Gateway)
`BIT[5]`	A2DP Sink (Advanced Audio Distribution Profile)
`BIT[6]`	A2DP Source (Advanced Audio Distribution Profile)
`BIT[7]`	AVRCP Controller (Audio/Video remote controller Profile)
`BIT[8]`	AVRCP Target (Audio/Video remote controller Profile)
`BIT[9]`	HID Keyboard (Human Interface Profile)
`BIT[10]`	PBAP Server (Phonebook Access Profile)
Response	+PROFILE=Param
Description	GATT Server and Client, HFP Sink and Source, A2DP Sink and Source, AVRCP Controller and Target cannot be enabled simultaneously because of mutual exclusion.

Example:Read current profile selection
<< AT+PROFILE
>> +PROFILE=1195
Example:Enable SPP, GATT Server, HFP Source, A2DP Source profile, disable the others
<< AT+PROFILE=83
>> OK
Example:Enable SPP, A2DP Sink, disable the others
<< AT+PROFILE=33
>> OK

AT+AUTOCONN - Turn On/Off Power On Auto Reconnect

Command	AT+AUTOCONN{=Param}
`Param`	(0~15, default:3) (0) Turn Off (1-15) Turn on and reconnect times
Response	+AUTOCONN=Param
Description	Module will attempt to connect last device after power on if set.

AT+STAT - Get All Profile State

Command	AT+STAT
Response	+STAT=Param1, Param2, Param3…
`Param1`	DEVSTAT
`Param2`	SPPSTAT
`Param3`	GATTSTAT
`Param4`	HFPSTAT
`Param5`	A2DPSTAT
`Param6`	AVRCPSTAT
`Param7`	HIDSTAT
`Param8`	PBSTAT

AT+DEVSTAT - Read Device State

Command	AT+DEVSTAT
Response	+DEVSTAT=Param
`Param`	A base-10 representation of a bit field, for each bit:
`BIT[0]`	0: Power Off; 1: Power On
`BIT[1]`	0: BR/EDR Not Discoverable; 1: BR/EDR Discoverable
`BIT[2]`	0: BLE Not Advertising; 1: BLE Advertising
`BIT[3]`	0: BR/EDR Not Scanning; 1: BR/EDR Scanning
`BIT[4]`	0: BLE Not Scanning; 1: BLE Scanning

Example:usual combination and description

0	Device power off
1	Device power on
3	Device power on, BR/EDR Discoverable
5	Device power on, BR/EDR Not Discoverable, BLE Advertising
7	Device power on, BR/EDR Discoverable, BLE Advertising
13	Device power on, BR/EDR Not Discoverable, BLE Advertising, Scanning nearby BR/EDR devices

AT+ADDR - Get BR/EDR MAC Address

Command	AT+ADDR
Response	+ADDR=Param
`Param`	Module’s BR/EDR MAC address (12 Bytes ASCII)

Example:
<< AT+ADDR
>> +ADDR=DC0D30010203
>> OK

AT+LEADDR - Get BLE MAC Address

Command	AT+LEADDR
Response	+LEADDR=Param
`Param`	Module’s LE MAC address (12 Bytes ASCII)

AT+NAME - Get/Set BR/EDR Local Name

Command	AT+NAME{=Param1{,Param2}}
`Param1`	BR/EDR local name(1~31 Bytes ASCII)
`Param2`	MAC address suffix(0/1,default:1) 0: Disable suffix 1: Enable suffix “-XXXX” (lower 4 bytes of MAC address) after local name
Response	+NAME=Param
Description	Write local name if parameter exist, otherwise read current local name

Example:Read current BR/EDR local name
<< AT+NAME
>> +NAME=FSC-BT1036-XXXX
>> OK

Example:Change module’s BR/EDR local name to “ABC”,and disable suffix
<< AT+NAME=ABC,0
>> OK

Example:Change module’s BR/EDR local name to “ABC” and enable suffix
<< AT+NAME=ABC,1
>> OK

AT+LENAME - Get/Set BLE Local Name

Command	AT+LENAME{=Param1{,Param2}}
`Param1`	BLE local name(1~25 Bytes ASCII)
`Param2`	MAC address suffix(0/1,default:1) 0-Disable suffix 1-Enable suffix “-XXXX” (lower 4 bytes of MAC address) after local name
Response	+LENAME=Param

AT+SSP - Get/Set BR/EDR Pairing Mode

Command	AT+SSP{=Param}
`Param`	Pairing mode (0~3, default:2) (0) Legacy pairing, use pin code for pairing (1) Secure simple pairing, auto pairing (2) Secure simple pairing, display yes/no in pairing
Response	+SSP=Param
Note	need reboot

AT+PIN - Get/Set BR/EDR Pin Code

Command	AT+PIN{=Param}
`Param`	Pin code(4~15 Bytes ASCII, default:0000)
Response	+PIN=Param
Description	Pin code only work in legacy pairing mode, see AT+SSP

Example:Read module’s pin code
<< AT+PIN
>> +PIN=0000
>> OK

Example: Change module’s pin code to “1234”
<< AT+PIN=1234
>> OK

AT+COD: Get/Set Device Class

Command	AT+COD=Param
`Param`	Class of device(6 bytes ASCII, default:240408 Handsfree device)
Response	+COD=Param

Related configuration reference: COD.

AT+PAIR: Get/Set BR/EDR/BLE Visibility

Command	AT+PAIR=Param
`Param`	Mode(0-1) 0: Leave BR/EDR/BLE discoverable mode (stop advertising/broadcasting) 1: Enter BR/EDR/BLE discoverable mode (start advertising/broadcasting)
Description	Module will always be discoverable if no device connected (BR/EDR or BLE), and be undiscoverable if connected with remote device, unless received this command

AT+SCAN - Scan Nearby Devices

Command	AT+SCAN=Param
`Param`	scan type(0~1) 0: Stop scan 1: Scan nearby BR/EDR devices
Description	Format description reference: +SCAN - Scan Result

AT+PLIST - Get/Delete Paired List

Command	AT+PLIST{=Param}
`Param`	(0/1~8/12 Bytes MAC address) (0) Clear all paired record (1~8) Clear specific paired record with index (MAC) Clear specific paired record with MAC address
Response1	+PLIST=Param1, Param2, Param3{,Param4}
`Param1`	(1~8) Paired device’s index
`Param2`	(MAC) Paired device’s MAC address
`Param3`	(UTF8) Paired device’s name
Response2	+PLIST=E End of the paired record

Example:Read module’s paired record
<< AT+PLIST
>> +PLIST=1,1C5CF226D773, iPhone12
+PLIST=2, A0BC30075421, Samsung S8
+PLIST=E
>> OK

Example:Clear module’s paired record
<< AT+PLIST=0
>> OK

AT+DSCA - Release All Connections

Command	AT+DSCA
Description	Module release all Bluetooth connections with remote device

AT+TPMODE - Turn On/Off Throughput Mode

Command	AT+TPMODE{=Param}
`Param`	Throughput mode(0~1，default:0） 0: Turn Off 1: Turn On
Response	+TPMODE=Param
Description	When SPP/GATT profile connected and throughput mode is on, the AT command will be de-active, every byte received via physical UART will be sent to air, vice visa

AT+AUXCFG - Audio Input Mode Configuration

Command	AT+AUXCFG=Param1
`Param1`	mode(0-3,default:) 0: BT Mode 1: LineIn Mode 2: Spdif Mode 3: I2S Mode
Description	This command is used to configure the input mode of the module, BT1006A, BT1026C, BT1026D do not support spdif After BT1026A, BT1026B,are set to spdif, PA_MUTE pin will be modified to 20 pin

Example:Set LineIn mode input
<< AT+AUXCFG=1
>> OK
Some old firmware use AT+LINECFG=1 command to set

AT+PRINT - Turn on/off reporting data

Command	AT+PRINT{=Param}
`Param`	0-off 1-on 。 default: Open report data

AT+TONEPLAY - play tone

Command	AT+TONEPLAY{=Param}
`Param`	tone(0-94)

AT+MUTEPIO - Set PA_MUTE pin

Command	AT+MUTEPIO{=Param}
`Param`	PIO(0-63, 1026C default:PIO23)

AT+MICMUTE - mute MIC

Command	AT+MICMUTE=Param
`Param`	0-unmute 1-mute
Description	mute mic when call active

AT+SPKMUTE - mute Speaker

Command	AT+MICMUTE=Param
`Param`	0-unmute 1-mute

HFP Commands

AT+HFPSTAT - Read HFP State

Command	AT+HFPSTAT
Response	+HFPSTAT=Param
Description	Format description reference: +HFPSTAT - HFP State

AT+HFPRES - Get/Set HFP Sample Rate

Command	AT+HFPRES{=Param}
`Param`	Sample rate (Hz) for HFP voice call, 0:16k 1-48K
Response	+HFPRES=Param

AT+HFPCONN - Establish HFP Connection

Command	AT+HFPCONN{=Param}
`Param`	MAC address of target device (12 Bytes ASCII)
Description	Reconnect to last HFP device if parameter not exist

Example:Connect to last HFP device
<< AT+HFPCONN
>> OK
Example:Connect to specific HFP device with MAC address
<< AT+HFPCONN=1C5CF226D773
>> OK

AT+HFPDISC - Release HFP Connection

Command	AT+HFPDISC
Description	Release current HFP connection with remote device

AT+HFPDIAL - Dial/Redial Phone Number

Command	AT+HFPDIAL{=Param}
`Param`	Phone number (1~25 Bytes ASCII)
Description	Dial specific number if parameter exist, otherwise redial

Example:Redial
<< AT+HFPDIAL
>> OK
Example:Dial number “075527924639”
<< AT+HFPDIAL=075527924639
>> OK

AT+HFPDTMF - Send DTMF code

Command	AT+HFPDTMF{=Param}
`Param`	*DTMF (0~9/#/)**

Example:Send DTMF code “#” while talking
<< AT+HFPDTMF=#
>> OK

AT+HFPANSW - Pick Up Incoming Call

Command	AT+HFPANSW
Description	Pick up an incoming call

AT+HFPCHUP - Reject/Hung up Call

Command	AT+HFPCHUP
Description	Reject incoming call or hung up outgoing/active call

AT+HFPADTS - Transfer Voice Audio Between Local and Remote Device

Command	AT+HFPADTS=Param
`Param`	0: Transfer voice audio from module to remote device 1: Transfer voice audio from remote device to module
Description	Transfer voice audio between module and remote device by default if no parameter set

AT+HFPVR - Start/Stop Voice Recognition of Remote Device

Command	AT+HFPVR=Param
`Param`	0-Stop 1-Start
Description	Start/Stop Voice Recognition of Remote Device (such as Siri for iOS devices)

AT+HFPSCO - HFP SCO Configuration

Command	AT+HFPSCO=Param
`Param`	0-default 1-always to HF 2-always to AG

AT+HFPBATT - Send device battery level

Command	AT+HFPBATT=Param
`Param`	level(0-9)

A2DP/AVRCP Commands

AT+A2DPSTAT - Read A2DP State

Command	AT+A2DPSTAT
Response	+A2DPSTAT=Param
Description	Format description reference: +A2DPSTAT - A2DP State

AT+A2DPCONN - Establish A2DP Connection

Command	AT+A2DPCONN{=Param}
`Param`	MAC address of target device (12 Bytes ASCII)
Description	Reconnect to last A2DP device if parameter not exist

AT+A2DPDISC - Release A2DP Connection

Command	AT+A2DPDISC
Description	Release current A2DP connection with remote device

AT+A2DPCFG - Read/Write A2DP Configuration

Command	AT+A2DPCFG=Param
`Param`	A base-10 representation of a bit field, for each bit
`BIT[0]`	0: Disable AAC Codec 1: Enable AAC Codec
`BIT[1]`	0: Disable APTX Codec 1: Enable APTX Codec
`BIT[2]`	0: Disable APTX-LL Codec 1: Enable APTX-LL Codec
`BIT[3]`	0: Disable APTX-HD Codec 1: Enable APTX-HD Codec
`BIT[4]`	0: Disable APTX-AD Codec 1: Enable APTX-AD Codec
`BIT[5]`	0: Disable LDAC Codec 1: Enable LDAC Codec

Example:Read current A2DP configuration
<< AT+A2DPCFG
>> +A2DPCFG=0
>> OK
Example::Set A2DP configuration to: Only enable AAC Codec
<< AT+A2DPCFG=1
>> OK

AT+A2DPDEC - Read A2DP Decoder

Command	AT+A2DPDEC
Response	+A2DPDEC=Param
`Param`	1:SBC 3:AAC 5:APTX 7:APTX-HD 8:APTX-LL 9:APTX-AD 10:LDAC

AT+A2DPENC - Read A2DP Encoder

Command	AT+A2DPENC
Response	+A2DPENC=Param
`Param`	1:SBC 3:AAC 5:APTX 7:APTX-HD 8:APTX-LL 9:APTX-AD 10:LDAC

AT+A2DPAUDIO - Establish/Release A2DP Audio Connection

Command	AT+A2DPAUDIO{=Param}
`Param`	0-Release A2DP audio connection with remote a2dp sink device 1-Establish A2DP audio connection with remote a2dp sink device
Note	A2DP SOURCE only supported

AT+AVRCPSTAT - Read AVRCP State

Command	AT+AVRCPSTAT
Response	+AVRCPSTAT=Param
Description	Format description reference: +AVRCPSTAT - AVRCP State

AT+AVRCPCFG - Get/Set AVRCP Configuration

Command	AT+AVRCPCFG{=Param}
`Param`	A base-10 representation of a bit field, default:3, for each bit:
`BIT[0]`	Auto get track ID3 information (title, artist, album) on track changed.default:1
`BIT[1-3]`	Auto get track play progress if value > 0. default:5 second

Example: Read AVRCP configuration
<< AT+AVRCPCFG
>> +AVRCPCFG=1
OK
Example: Get track play progress every 1 second
<< AT+AVRCPCFG=3
>> OK

AT+PLAYPAUSE - Track Play/Pause

Command	AT+PLAYPAUSE
Description	Send play or pause command to remote media player according to current play status

AT+PLAY - Track Play

Command	AT+PLAY
Description	Send play command to remote media player

AT+PAUSE - Track Pause

Command	AT+PAUSE
Description	Send pause command to remote media player

AT+STOP - Track Stop

Command	AT+STOP
Description	Send stop command to remote media player

AT+FORWARD - Track Forward

Command	AT+FORWARD
Description	Send forward command to remote media player

AT+BACKWARD - Track Backward

Command	AT+BACKWARD
Description	Send backward command to remote media player

AT+FFWD - Track FastForward

Command	AT+FFWD=Param
`Param`	0-Fast Forward Release, 1-Fast Forward Press
Description	Send fast forward command to remote media player

AT+RWD - Track Rewind

Command	AT+RWD=Param
`Param`	0-Rewind Release, 1-Rewind Press
Description	Send rewind command to remote media player

PBAP Commands

AT+PBSTAT - Read PBAP state

Command	AT+PBSTAT
Response	+PBATAT=Param
Description	Format description reference: +PBSTAT - PBAP State

AT+PBCONN - Establish PBAP Connection

Command	AT+PBCONN{=Param}
`Param`	MAC address of target device (12 Bytes ASCII)
Description	Module will use current HFP device’ MAC address if parameter not exist For some firmware release, module will establish PBAP connection automatically on received command AT+PBDOWN

AT+PBDISC - Release PBAP Connection

Command	AT+PBDISC
Description	Release current PBAP connection with remote device

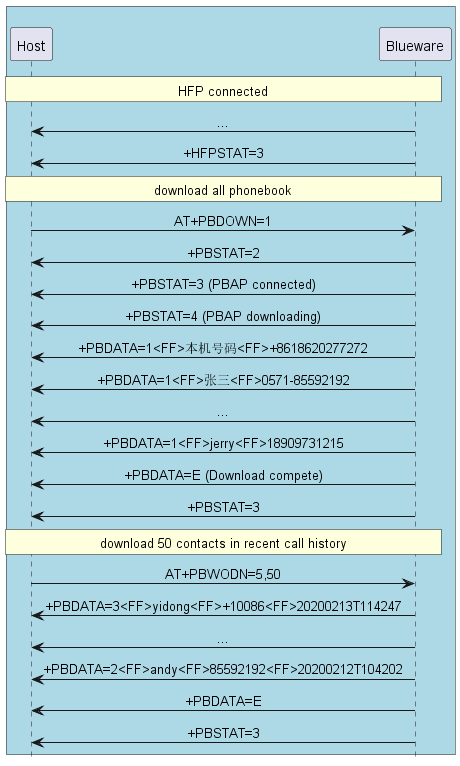

AT+PBDOWN - Download Phonebook

Command	Param1{,Param2}
`Param1`	Phonebook type(0-5) (0) Phonebook (SIM Storage) (1) Phonebook (Phone Storage) (2) Received call log (3) Dialed call log (4) Missed call log (5) All call log
`Param2`	Max items (1~65535, default:3000 for phonebook; 50 for call log)
Description	For some phones (e.g. iPhone), the contact download permission must be turned on in phone’s Bluetooth settting refer to application note for more description: Phonebook downloading

SPP Commands

AT+SPPSTAT - Read SPP State

Command	AT+SPPSTAT
Response	+SPPATAT=Param
Description	Format description reference: +SPPSTAT - SPP State

AT+SPPCONN - Establish SPP Connection

Command	AT+SPPCONN{=Param}
`Param`	MAC address of target device (12 Bytes ASCII)

AT+SPPDISC - Release SPP Connection

Command	AT+SPPDISC
Description	Release current SPP connection with remote device

AT+SPPSEND - Send Data Via SPP

Command	AT+SPPSEND=Param1,Param2
`Param1`	Payload length (1~492)
`Param2`	Payload (1~492 Bytes UTF8)
Description	If throughput mode is on, this command is de-active

Example: Send data “1234567890” to remote device via SPP
<< AT+SPPSEND=10,1234567890
>> OK

GATT Commands

AT+GATTSTAT - Read GATT State

Command	AT+GATTSTAT
Response	+GATTATAT=Param
Description	Format description reference: +GATTSTAT - GATT State

AT+GATTDISC - Release GATT Connection

Command	AT+GATTDISC
Description	Release current GATT connection with remote device

AT+GATTSEND - Send Data Via GATT

Command	AT+GATTSEND=Param1,Param2
`Param1`	Payload length (1~492)
`Param2`	Payload (1~492 Bytes UTF8)
Description	If throughput mode is on, this command is de-active

Example: Send data “1234567890” to remote device via GATT
<< AT+SPPSEND=10,1234567890
>> OK

HID Commands

AT+HIDSTAT - Read HID State

Command	AT+HIDSTAT
Response	+HIDATAT=Param
Description	Format description reference: +HIDSTAT - HID State

AT+HIDCONN - Establish HID Connection

Command	AT+HIDCONN{=Param}
`Param`	MAC address of target device (12 Bytes ASCII)

AT+HIDDISC - Release HID Connection

Command	AT+HIDDISC
Description	Release current HID connection with remote device

AT+HIDMODE - Get/Set HID Input Mode

Command	AT+HIDMODE{=Param}
`Param`	HID keyboard input mode (0~1), default 1 (0) Hex key code (1) Ascii key code (English)
Note	Module can support various keyboard language with specify firmware, such as:TURKEY SPAIN PORTUGAL FRANCE GERMANY ITALY CZECH JAPAN

AT+HIDREL - Read/write HID key value auto release

Command	AT+HIDREL{=Param}
`Param`	HID Key value auto release(0~1), default 1 (0) manual release (1) auto release
Note	If HIDREL=0, the user needs to send \x00 \x00 to manually send the bounce key

AT+HIDDLY - Get/Set HID Report Period

Command	AT+HIDDLY{=Param}
`Param`	HID report period in millisecond, default 10 ms

AT+HIDSEND - Send HID Keyboard Report

Command	AT+HIDSEND=Param1,Param2
`Param1`	Report length
`Param2`	Report payload
Note	For special key code: 0x0D -> ENTER 0x08 -> BACKSPACE 0x09 -> TAB 0x20 -> SPACE

Example: Send key code ‘A’ to remote device (on AT+HIDMODE=1)
>> AT+HIDSEND=1,A
<< OK
Example: Send key code ‘A’ to remote device (on AT+HIDMODE=0)
<< AT+HIDSEND=4, x00 x04
>> OK
Note: As payload is hex value, hence actual command is:
41 54 2B 48 49 44 53 45 4E 44 3D 34 2C 00 04 0d 0a
Where:
00 : modifier
04 : key code
Module will auto send debounce key code by itself

AT+HIDCMD - Send HID User Report

Command	AT+HIDCMD=Param
`Param`	2 bytes hid user report e.g., for iPhone: Play/Pause: 00 CD Stop: 00 B7 Forward: 00 B5 Backward: 00 B6 Fast Forward: 00 B3 Rewind:00 B4 Record:00 B2 VolumpUp:00 E9 VolumpDn:00 EA Mute:00 E2 On screen keyboard Toggle:01 AE

Example: Send Volume Up to iPhone
<< AT+HIDCMD= x00 xE9
>> OK
Note: As the payload is hex value, hence actual command is:
41 54 2B 48 49 44 43 4D 44 3D 00 E9 0D 0A

Events Table

General Events

+SCAN - Scan Result

Format1	+SCAN =Param1,Param2,Param3, Param4,Param5,Param6
`Param1`	Index
`Param2`	Device address type (0~2) (0) LE public address (1) LE random address (2) BR/EDR address
`Param3`	MAC address (12 Bytes ASCII)
`Param4`	RSSI (-127 ~ -1)
`Param5`	Size of Param6 if exist
`Param6`	Device Name for BR/EDR devices or advertising data for LE devices

Example: Scan BR/EDR nearby devices
<< AT+SCAN=1
>> OK
>> +SCAN=1,3,B019C66209FA,-32,9,wt-iphone
>> +SCAN=2,0,DC0D30000053,-74,5,BW226
>> +SCAN=3,0,00158354F994,-43,9,LAPTOP-3L

+PAIRED - Pair Result

Format	+PAIRED=Param
`Param`	MAC address (12 Bytes ASCII) of current pairing device

HFP Events

+HFPSTAT - HFP State

Format	+HFPSTAT=Param
`Param1`	(0~6) (0) Unsupported (1) Standby (2) Connecting (3) Connected (4) Outgoing call (5) Incoming call (6) Active call

+HFPDEV - HFP Remote Device Information

Format	+HFPDEV=Param1{,Param2}
`Param1`	(12 Bytes ASCII), Remote MAC address of current HFP connection
`Param2`	(UTF8), Remote device name of current HFP connection

Example: HFP connect success with device

>> +HFPDEV=1C5CF226D774, iPhone

+HFPCID - Incoming/Outgoing Call Number

Format	+HFPCID=Param
`Param`	(1~25 Bytes ASCII), Call number

Example: Dial number 10086
<< AT+HFPDIAL=10086
>> +HFPSTAT=4
>> +HFPCID=10086
>> +HFPCIE=China Mobile
>> +HFPAUDIO=1

Example: Incoming call with number 13265463800
>> +HFPSTAT=5
>> +HFPCID=13265463800
>> +HFPCIE=Jerry
>> +HFPAUDIO=1

+HFPCIE - Incoming/Outgoing Call Name

Format	+HFPCIE=Param
`Param`	(UTF8), Call name
Note	This event is supported by IOS mobile phones, but not supported by most Android phones

+HFPAUDIO - HFP Voice Audio State

Format	+HFPAUDIO=Param
`Param`	(0) HFP voice audio disconnected, audio input/output routed to remote device (1) HFP voice audio connected, audio input/output routed to module

+HFPSIG - HFP Remote Device Network Signal Strength

Format	+HFPSIG=Param
`Param`	(0~5)Network signal strength of remote device

+HFPROAM - HFP Remote Device Roaming State

Format	+HFPROAM=Param
`Param`	(0/1) Roaming state of remote device

+HFPBATT - HFP Remote Device Battery Level

Format	+HFPBATT=Param
`Param`	(0~5) Battery level of remote device

+HFPNET - HFP Remote Device Network Operator Selection

Format	+HFPNET=Param
`Param`	（UTF8）Network operator selection of remote device

+HFPMANU - HFP Remote Device Manufacture

Format	+HFPMANU=Param
`Param`	（UTF8）Manufacture name of remote device

+HFPNUM - HFP Remote Device Phone Subscriber Number

Format	+HFPNUM=Param
`Param`	(ASCII)Phone subscriber number of remote device

+HFPIBR - HFP Remote Device In-band-ring Support

Format	+HFPIBR=Param
`Param`	(0/1) In-band-ring support
Description	Report whether the current connected phone support in-band-ring

A2DP/AVRCP Events

+A2DPSTAT - A2DP State

Format	+A2DPSTAT=Param
`Param`	(0) Unsupported (1) Standby (2) Connecting (3) Connected (4) Streaming

+A2DPDEV - A2DP Remote Device Information

Format	+A2DPDEV=Param1{,Param2}
`Param1`	(12 Bytes ASCII), Remote device’s MAC address of current A2DP connection
`Param2`	(UTF8), Remote device’s name of current A2DP connection

+AVRCPSTAT - AVRCP State

Format	+AVRCPSTAT=Param
`Param`	(0) Unsupported (1) Standby (2) Connecting (3) Connected

+PLAYSTAT - Media Player State

Format	+PLAYSTAT=Param
`Param`	(0) Stopped (1) Playing (2) Paused (3) Fast Forwarding (4) Fast Rewinding

+TRACKSTAT - Media Player Play Progress

Format	+TRACKSTAT=Param1,Param2,Param3
`Param1`	(0~4), Media Player State, see +PLAYSTAT
`Param2`	(Decimal ASCII),Elapsed time of current track in millisecond
`Param3`	(Decimal ASCII),Total time of current track in millisecond

Example: Read media player play progress every 1s
>> +TRACKSTAT=1,54000,322000
>> +TRACKSTAT=1,55000,322000
>> +TRACKSTAT=1,56000,322000

+TRACKINFO - Media Track Information

Format	+TRACKINFO=Param1,Param2,Param3
`Param1`	title
`Param2`	artist
`Param3`	album

Example: Phone playing song “Creep-Radio Head”

>> +TRACKINFO=Creep , Radiohead , Pablo Honey

Phonebook Access Events

+PBSTAT - PBAP State

Format	+PBSTAT=Param
`Param`	(0) Unsupported (1) Standby (2) Connecting (3) Connected (4) Downloading

+PBCNT - Phonebook Entries of Remote Device

Format	+PBCNT=Param
`Param`	Phonebook entries of remote device

+PBDATA - Phonebook Data

Format1	+PBDATA=Param1<FF>Param2<FF>Param3{<FF>Param4}
`Param1`	Type (0) Phonebook (SIM Storage) (1) Phonebook (Phone Storage) (2) Received call log (3) Dialed call log (4) Missed call log
`Param2`	Name
`Param3`	Number
`Param4`	(15 Bytes ASCII), Call time if current download type is call log Format: Year(4Bytes) Month(2Bytes) Day(2Bytes) T(1Byte) Hour(2Bytes) Minute(2Bytes) Second(2Bytes). e.g. 20161012T152826 represents 2016/10/12/15/28/26
Format2	+PBDATA=E: Download complete
Description	Call time may not exist for some mobile phones

Example: Download all phonebook

<< AT+PBDOWN=1

>> +PBCNT=234

+PBDATA=1<FF>Jack<FF>18219146201
+PBDATA=1<FF>kenan<FF>8613771972680
……
+PBDATA=E

Example: Download 10 dialed call log

<< AT+PBDOWN=3,10

>> +PBDATA=3<FF>China Mobile<FF>10086<FF>20171013T103516

+PBDATA=3<FF>Jerry<FF>18688967507<FF>20171012T152826
……
+PBDATA=E

SPP Events

+SPPSTAT - SPP State

Format	+SPPSTAT=Param
`Param`	(0) Unsupported (1) Standby (2) Connecting (3) Connected

+SPPDATA - SPP Received Incoming Data

Format	+SPPDATA=Param1,Param2
`Param1`	Payload length
`Param2`	Payload

Example: Received data “1234567890” from remote device via SPP

<< +SPPDATA=10,1234567890

GATT Events

+GATTSTAT - GATT State

Format	+GATTSTAT=Param
`Param`	(0) Unsupported (1) Standby (2) Connecting (3) Connected

+GATTDATA - GATT Received Incoming Data

Format	+SPPDATA=Param1,Param2
`Param1`	Payload length
`Param2`	Payload

Example: Received data “1234567890” from remote device via GATT

<< +GATTDATA=10,1234567890

HID Events

+HIDSTAT - HID State

Format	+HIDSTAT=Param
`Param`	(0) Unsupported (1) Standby (2) Connecting (3) Connected

Application scenarios

profiles initializing and change parameter

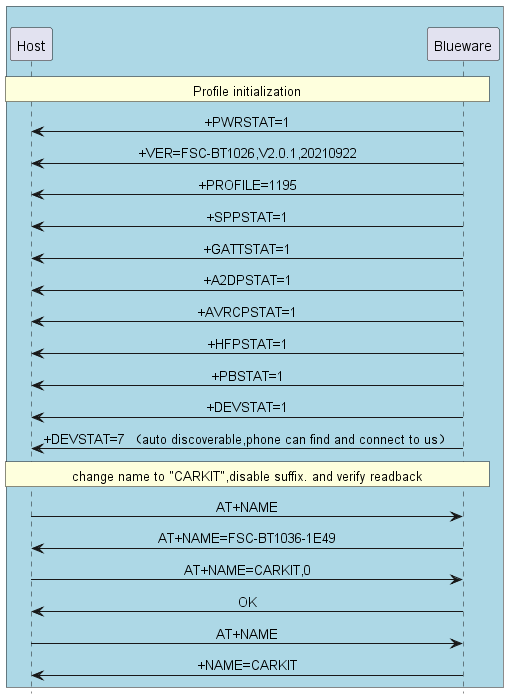

The following figure shows Profile initialization and name modification

MCU change device name CARKIT reference code:

void change_name(void)
{
    uart_send("AT+NAME\r\n");
    if(uart_read("+NAME",name_buf))
    {
        if(memcmp(name_buf,"CARKIT",6))
        {
            uart_send("AT+NAME=CARKIT,0\r\n");      //defalut disable MAC address suffix
            uart_send("AT+NAME\r\n"); // read bt name
            if(uart_read("+NAME",name_buf))
            {
                if(memcmp(name_buf,"CARKIT",6))
                {
                    //change name fail
                }
                else
                {
                    //change name success
                }
            }
        }
    }
}

Note

modify any parameters, it is recommended to query first and then modify the final verification

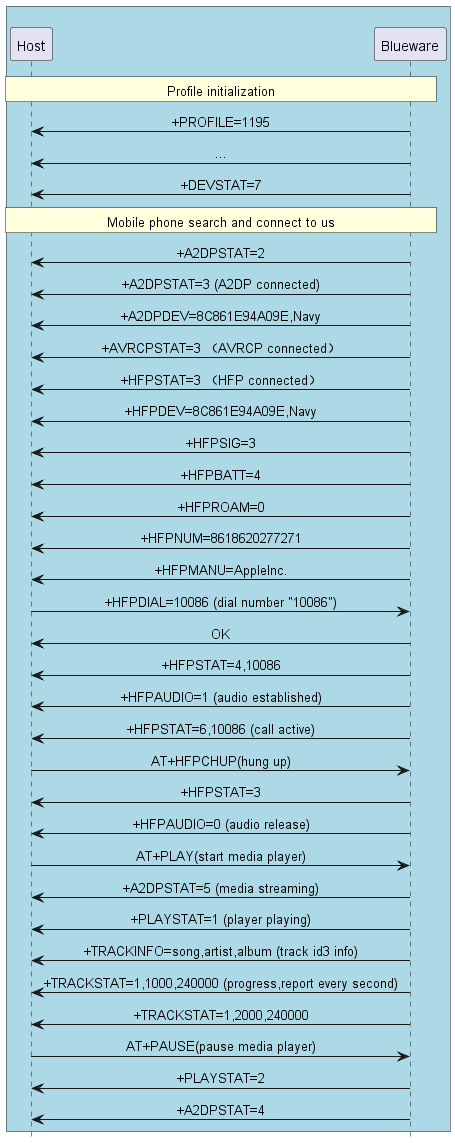

Sink mode connection

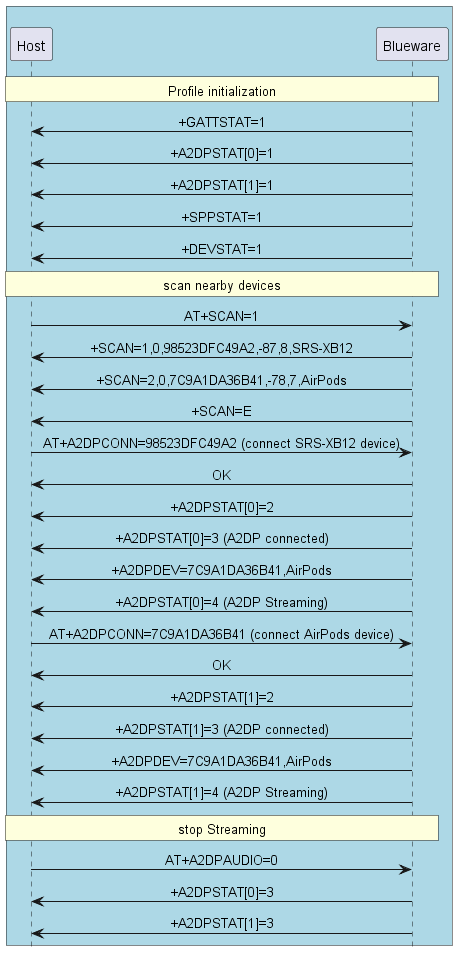

Source mode connection
