BT1058 programming user guide

Introduction

Description

This design guide is suitable for engineers to develop BT1058 series Bluetooth modules

Module Default Settings

Name	FSC-BT1058-XXXX
LE-Name	FSC-BT1058-LE-XXXX
Pin Code	0000
Secure Simple Pairing Mode	ON
UART Baudrate	115200/8/N/1

Hardware Description

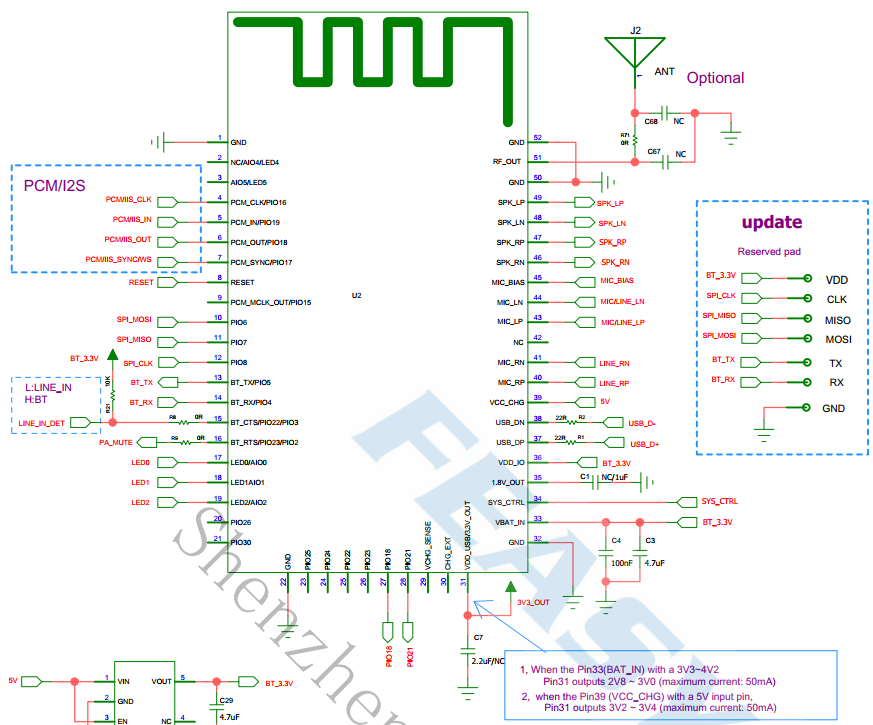

Pin Diagram

FSC-BT1058 as an example:

Pin Description

Pin	Pin Name	Type	Pin Descriptions
4	I2S_CLK	I/O	I2S BCLK
5	I2S_IN	I	I2S DATA IN
6	I2S_OUT	O	I2S DATA OUT
7	I2S_WS	I/O	I2S SYNC
8	RESET	I	External reset input: active Low
13	UART_TX	O	UART TX
14	UART_RX	I	UART RX
15	UART_CTS	I/O	UART CTS
16	UART_RTS	I/O	UART RTS(default: PA mute pin)
17	LED0	I/O	Output square wave in pairing mode, output high level when bluetooth is connected
18	LED1	I/O	BIS is not connected to output low level, connected to output high level
32	GND	GND	GND
33	VDD	VDD	Power supply for I/O ports, DC 3.3V
34	VREG_IN	I	Typically connected to an ON/OFF push button
36	VDD_IO	I	pio supply
43	MIC_LP	Audio	MIC0/Line_IN differential L input, positive
44	MIC_LN	Audio	MIC0/Line_IN differential L input, negative
45	MIC_BIAS	Audio	MIC Power Supplies
46	SPK_RN	Audio	Headphone/speaker differential R output, negative
47	SPK_RP	Audio	Headphone/speaker differential R output, positive
48	SPK_LN	Audio	Headphone/speaker differential L output, negative
49	SPK_LP	Audio	Headphone/speaker differential L output, positive
51	EXT_ANT	ANT	Change the 0 ohm resistance near the antenna, you can connect an external Bluetooth antenna

Hardware Design Notes

The simple test of the module only needs to connect VDD/VDD_IO/VREG_IN/GND/UART_RX/UART_TX to use
After drawing the schematic diagram, please send it to Feasycom for review,so as to avoid the Bluetooth distance not reaching the best effect

Function Description

Profiles & Features

SPP (Serial Port Profile)
GATTS (Generic Attribute Profile LE-Peripheral role)
GATTC (Generic Attribute Profile LE-Central role)
HFP-HF (Hands-Free Profile)
HFP-AG (Hands-Free-AG Profile)
A2DP-Sink (Advanced Audio Distribution Profile)
A2DP-Source (Advanced Audio Distribution Profile)
AVRCP-Controller (Audio/Video remote controller Profile)
AVRCP-Target (Audio/Video remote controller Profile)
HID-DEVICE (Human Interface Profile)
PBAP (Phonebook Access Profile)
MAP (Message Access Profile)
LEA (LE Audio)

GATT Default service and characteristic

Type	UUID	Characteristic	Description
Service	0xFFF0		throughput services
Write	0xFFF2	Write，Write Without Response	app send to module
Notify	0xFFF1	Notify	module send to app

Command Description

Terms

Throughout this specification:
Content between { } is optional
Content behind << represents a COMMAND from Host
Content behind >> represents a RESPONSE/EVENT to Host

Command Format

AT+Command{=Param1{,Param2{,Param3…}}}<CR><LF>

All commands start with “AT”, end with <CR><LF>
<CR> means “carriage return”, corresponds to hex value 0x0D
<LF> means “line feed”, corresponds to hex value 0x0A
If Command has Parameter, Parameter follows behind ‘=’
If Command has multiple Parameters, Parameter must be separated by ‘,’
If Command has Response, Response starts with <CR><LF>, ends with <CR><LF>
Module will always report command’s execution result by using “OK” for success or “ERROR” for failure

Example:Read module’s BR/EDR local name
<< AT+NAME
>> +NAME=FSC-BT1058-XXXX
>> OK

Example:Pick up an incoming call when no call incoming actually
<< AT+HFPANSW
>> ERROR

Event Format

<CR><LF>+Indication{=Param1{,Param2{,Param3…}}}<CR><LF>

All Events start with <CR><LF>, end with <CR><LF>
If Event has Parameter, Parameter follow behind ‘=’
If Event has multiple Parameters, Parameter must be separated by ‘,’

Example: Received “1234567890” from mobile phone via SPP profile
>> +SPPDATA=10,1234567890

Example: Dial number “10086” using a mobile phone when HFP connected
>> +HFPSTAT=4
>> +HFPAUDIO=1
>> +HFPCID=10086
>> +HFPSTAT=6

Commands Table

General Commands

AT+HELP - Firmware Function/Command Summary

Command	AT+HELP
Response	<FIRMWARE FUNCTION: appropriate working scenario > <OTA PATH: latest suitable firmware path on server for upgrade On-The-Air> <ENABLED PROFILES: LINKS: ON/OFF> … … <COMMAND SUMMARY: DESCRIPTION: PROFILE CATEGORY>
Description	Using help command to get the basic summary information

AT+VER - Get Firmware Version

Command	AT+VER
Response	+VER=Param1,Param2,Param3
`Param1`	Module type
`Param2`	Firmware version
`Param3`	Firmware Compile time

Example:
<< AT+VER
>> +VER=BT1058,V1.0.7,20250412
>> OK

AT+BAUD - Get/Set Uart Baudrate

Command	AT+BAUD{=Param}
`Param`	9600/19200/38400/57600/115200(default)/230400/460800/921600
Response	+BAUD=Param
Description	Module will change baudrate to target value immediately or after reboot depending on firmware

Example:Read module’s baudrate
<< AT+BAUD
>> +BAUD=115200
>> OK

<< AT+BAUD=921600
>> OK
Module switch baudrate to 921600 immediately, host change baudrate as well, query module’s name at new baudrate
<< AT+NAME
>> +NAME=FSC-BT1058-1F26
>> OK

AT+I2SCFG - Get/Set I2S Settings

Command	AT+I2SCFG{=Param}
`Param`	A base-10 representation of a bit field, default:0, for each bit
`BIT[0]`	0:disable; 1:enable
`BIT[1]`	0:master; 1:slave
`BIT[2]`	0:FS=48000Hz;1:FS=44100Hz
`BIT[3]`	0:left justified; 1:right justified
`BIT[4]`	0:data 1 bit delay; 1:data no delay
`BIT[5-6]`	00: bit depth=16bits 01: bit depth=24bits 10: bit depth=32bits
`BIT[7]`	0:WS at high level，SD data is right channel 1:WS at high level，SD data is left channel
Response	+I2SCFG=Param
Note	BIT[4] is valid only at the condition of BIT[3]=0. BIT[7] Partial firmware support

Example:usual configuration and description

1	I2S Master; Sample rate=48000Hz; Resolution=16bits; Bit clock= 48000162ch=1.536Mhz
3	I2S Slave; Sample rate=48000Hz; Resolution=16bits; Bit clock= 48000162ch=1.536Mhz
65	I2S Master; Sample rate=48000Hz; Resolution=32bits; Bit clock= 48000322ch=3.072Mhz
67	I2S Slave; Sample rate=48000Hz; Resolution=32bits; Bit clock= 48000322ch=3.072Mhz

AT+SPDIFCFG - SPDIF Format Configuration

Command	AT+SPDIFCFG{=Param}
`Param`	0-Disable SPDIF for audio output 1-Enable SPDIF for audio output

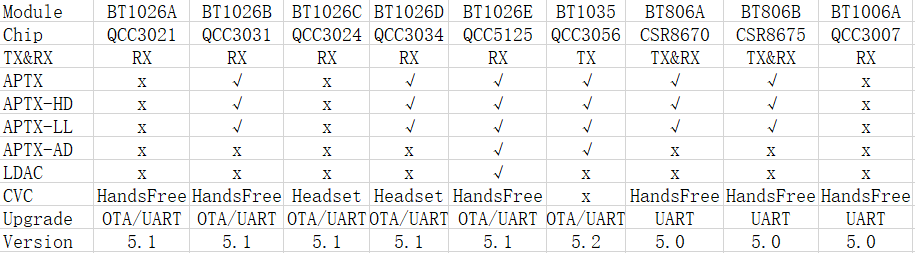

Description	SPDIF output only support: BT1058、BT806、BT1026A、BT1026B、BT1026E If the audio output is spdif, the I2S configuration is invalid.

AT+SPKVOL - Get/Set Analog Output Volume

Command	AT+SPKVOL{=Param}
`Param`	Volume (‘+’ / ‘-’/ 0-15, default:15)
Description	Adjust Output volume, Adjust A2DP volume when play music,adjust HFP volume when talking

AT+REBOOT - Soft Reboot

Command	AT+REBOOT
Response	OK
Description	Module release all Bluetooth connections with remote device then reboot

AT+RESTORE - Restore Factory Settings

Command	AT+RESTORE
Response	OK
Description	Module restore all factory settings then reboot

AT+BTEN - Bluetooth On/Off

Command	AT+BTEN{=Param}
`Param`	0-Power off 1-Power on

AT+PROFILE - Bluetooth Profile Selection

Command	AT+PROFILE{=Param}
`Param`	A base-10 representation of a bit field, for each bit:
`BIT[0]`	SPP (Serial Port Profile)
`BIT[1]`	GATT Server (Generic Attribute Profile)
`BIT[2]`	GATT Client (Generic Attribute Profile)
`BIT[3]`	HFP-HF (Hands-Free Profile Handsfree)
`BIT[4]`	HFP-AG (Hands-Free Profile Audio Gateway)
`BIT[5]`	A2DP Sink (Advanced Audio Distribution Profile)
`BIT[6]`	A2DP Source (Advanced Audio Distribution Profile)
`BIT[7]`	AVRCP Controller (Audio/Video remote controller Profile)
`BIT[8]`	AVRCP Target (Audio/Video remote controller Profile)
`BIT[9]`	HID Keyboard (Human Interface Profile)
`BIT[10]`	PBAP Server (Phonebook Access Profile)
`BIT[11]`	Map Server (Message Access Profile)
`BIT[12]`	Bis Source (Le audio broadcast source)
`BIT[13]`	Bis Sink (Le audio broadcast sink)
`BIT[14]`	CIS Source (Le audio unicast source)
`BIT[15]`	CIS Sink (Le audio unicast sink)
Response	+PROFILE=Param
Description	GATT Server and Client, HFP Sink and Source, A2DP Sink and Source, AVRCP Controller and Target cannot be enabled simultaneously because of mutual exclusion.

Example:Read current profile selection
<< AT+PROFILE
>> +PROFILE=9385
Example:Enable SPP, GATT Server, HFP Source, A2DP Source profile, disable the others
<< AT+PROFILE=83
>> OK
Example:Enable SPP, A2DP Sink, disable the others
<< AT+PROFILE=33
>> OK

AT+AUTOCONN - Turn On/Off Power On Auto Reconnect

Command	AT+AUTOCONN{=Param}
`Param`	(0~15, default:3) (0) Turn Off (1-15) Turn on and reconnect times
Response	+AUTOCONN=Param
Description	Module will attempt to connect last device after power on if set.

AT+STAT - Get All Profile State

Command	AT+STAT
Response	+STAT=Param1, Param2, Param3…
`Param1`	DEVSTAT
`Param2`	SPPSTAT
`Param3`	GATTSTAT
`Param4`	HFPSTAT
`Param5`	A2DPSTAT
`Param6`	AVRCPSTAT
`Param7`	CISSTAT
`Param8`	PBSTAT
`Param9`	BISSTAT

AT+DEVSTAT - Read Device State

Command	AT+DEVSTAT
Response	+DEVSTAT=Param
`Param`	A base-10 representation of a bit field, for each bit:
`BIT[0]`	0: Power Off; 1: Power On
`BIT[1]`	0: BR/EDR Not Discoverable; 1: BR/EDR Discoverable
`BIT[2]`	0: BLE Not Advertising; 1: BLE Advertising
`BIT[3]`	0: BR/EDR Not Scanning; 1: BR/EDR Scanning
`BIT[4]`	0: BLE Not Scanning; 1: BLE Scanning

Example:usual combination and description

0	Device power off
1	Device power on
3	Device power on, BR/EDR Discoverable
5	Device power on, BR/EDR Not Discoverable, BLE Advertising
7	Device power on, BR/EDR Discoverable, BLE Advertising
13	Device power on, BR/EDR Not Discoverable, BLE Advertising, Scanning nearby BR/EDR devices

AT+ADDR - Get BR/EDR MAC Address

Command	AT+ADDR
Response	+ADDR=Param
`Param`	Module’s BR/EDR MAC address (12 Bytes ASCII)

Example:
<< AT+ADDR
>> +ADDR=DC0D30010203
>> OK

AT+LEADDR - Get BLE MAC Address

Command	AT+LEADDR
Response	+LEADDR=Param
`Param`	Module’s LE MAC address (12 Bytes ASCII)

AT+NAME - Get/Set BR/EDR Local Name

Command	AT+NAME{=Param1{,Param2}}
`Param1`	BR/EDR local name(1~31 Bytes ASCII)
`Param2`	MAC address suffix(0/1,default:1) 0: Disable suffix 1: Enable suffix “-XXXX” (lower 4 bytes of MAC address) after local name
Response	+NAME=Param
Description	Write local name if parameter exist, otherwise read current local name

Example:Read current BR/EDR local name
<< AT+NAME
>> +NAME=FSC-BT1058-XXXX
>> OK

Example:Change module’s BR/EDR local name to “ABC”,and disable suffix
<< AT+NAME=ABC,0
>> OK

Example:Change module’s BR/EDR local name to “ABC” and enable suffix
<< AT+NAME=ABC,1
>> OK

AT+LENAME - Get/Set BLE Local Name

Command	AT+LENAME{=Param1{,Param2}}
`Param1`	BLE local name(1~25 Bytes ASCII)
`Param2`	MAC address suffix(0/1,default:1) 0-Disable suffix 1-Enable suffix “-XXXX” (lower 4 bytes of MAC address) after local name
Response	+LENAME=Param

AT+SSP - Get/Set BR/EDR Pairing Mode

Command	AT+SSP{=Param}
`Param`	Pairing mode (0~1, default:0) (0) Legacy pairing, use pin code for pairing (1) Secure simple pairing, auto pairing (2) Secure simple pairing, display yes/no in pairing
Description	Because BT1058 Bluetooth 5.4 with LEA function. BT1058 BT1038 series does not support ssp 0 parameters
Response	+SSP=Param
Note	need reboot.

AT+COD: Get/Set Device Class

Command	AT+COD=Param
`Param`	Class of device(6 bytes ASCII, default:240408 Handsfree device)
Response	+COD=Param

Related configuration reference: COD.

AT+PAIR: Get/Set BR/EDR/BLE Visibility

Command	AT+PAIR=Param
`Param`	Mode(0-1) 0: Leave BR/EDR/BLE discoverable mode (stop advertising/broadcasting) 1: Enter BR/EDR/BLE discoverable mode (start advertising/broadcasting)
Description	Module will always be discoverable if no device connected (BR/EDR or BLE), and be undiscoverable if connected with remote device, unless received this command

AT+PLIST - Get/Delete Paired List

Command	AT+PLIST{=Param}
`Param`	(0/1~6/12 Bytes MAC address) (0) Clear all paired record (1~6) Clear specific paired record with index (MAC) Clear specific paired record with MAC address
Response1	+PLIST=Param1, Param2, Param3{,Param4}
`Param1`	(1~6) Paired device’s index
`Param2`	(MAC) Paired device’s MAC address
`Param3`	(UTF8) Paired device’s name
Response2	+PLIST=E End of the paired record

Example:Read module’s paired record
<< AT+PLIST
>> +PLIST=1,1C5CF226D773, iPhone12
+PLIST=2, A0BC30075421, Samsung S8
+PLIST=E
>> OK

Example:Clear module’s paired record
<< AT+PLIST=0
>> OK

AT+DSCA - Release All Connections

Command	AT+DSCA
Description	Module release all Bluetooth connections with remote device

AT+TPMODE - Turn On/Off Throughput Mode

Command	AT+TPMODE{=Param}
`Param`	Throughput mode(0~1，default:0） 0: Turn Off 1: Turn On
Response	+TPMODE=Param
Description	When SPP/GATT profile connected and throughput mode is on, the AT command will be de-active, every byte received via physical UART will be sent to air, vice visa

AT+AUXCFG - Audio Input Mode Configuration

Command	AT+AUXCFG=Param1
`Param1`	mode(0-4,default:0) 0: BT Mode 1: LineIn Mode 2: Spdif Mode 3: I2S Mode 4: USB Mode
Description	This command is used to configure the input mode of the module, BT1006A, BT1026C, BT1026D do not support spdif After BT1026A, BT1026B,are set to spdif, PA_MUTE pin will be modified to 20 pin BT1058 V1.0.7 does not support spdif, I2S input

Example:Set LineIn mode input
<< AT+AUXCFG=1
>> OK
Some old firmware use AT+LINECFG=1 command to set

AT+MUTEPIO - Set PA_MUTE pin

Command	AT+MUTEPIO{=Param}
`Param`	PIO(0-63, 1026C default:PIO23， BT1058 default:PIO2)

AT+LINEPIO - Set LineIn Pin

Command	AT+LINEPIO{=Param}
`Param`	PIO(0-63, BT1058 default:PIO26)
Description	Active low

AT+MICMUTE - mute MIC

Command	AT+MICMUTE=Param
`Param`	0-unmute 1-mute
Description	mute mic when call active

AT+SPKMUTE - mute Speaker

Command	AT+MICMUTE=Param
`Param`	0-unmute 1-mute

HFP Commands

AT+HFPSTAT - Read HFP State

Command	AT+HFPSTAT
Response	+HFPSTAT=Param
Description	Format description reference: +HFPSTAT - HFP State

AT+HFPRES - Get/Set HFP Sample Rate

Command	AT+HFPRES{=Param}
`Param`	Sample rate (Hz) for HFP voice call, 0:16k 1-48K
Response	+HFPRES=Param
Note	BT1058 V1.0.1 does not support this command function

AT+HFPCONN - Establish HFP Connection

Command	AT+HFPCONN{=Param}
`Param`	MAC address of target device (12 Bytes ASCII)
Description	Reconnect to last HFP device if parameter not exist

Example:Connect to last HFP device
<< AT+HFPCONN
>> OK
Example:Connect to specific HFP device with MAC address
<< AT+HFPCONN=1C5CF226D773
>> OK

AT+HFPDISC - Release HFP Connection

Command	AT+HFPDISC
Description	Release current HFP connection with remote device

AT+HFPDIAL - Dial/Redial Phone Number

Command	AT+HFPDIAL{=Param}
`Param`	Phone number (1~25 Bytes ASCII)
Description	Dial specific number if parameter exist, otherwise redial

Example:Redial
<< AT+HFPDIAL
>> OK
Example:Dial number “075527924639”
<< AT+HFPDIAL=075527924639
>> OK

AT+HFPDTMF - Send DTMF code

Command	AT+HFPDTMF{=Param}
`Param`	*DTMF (0~9/#/)**

Example:Send DTMF code “#” while talking
<< AT+HFPDTMF=#
>> OK

AT+HFPANSW - Pick Up Incoming Call

Command	AT+HFPANSW
Description	Pick up an incoming call

AT+HFPCHUP - Reject/Hung up Call

Command	AT+HFPCHUP
Description	Reject incoming call or hung up outgoing/active call

AT+HFPADTS - Transfer Voice Audio Between Local and Remote Device

Command	AT+HFPADTS=Param
`Param`	0: Transfer voice audio from module to remote device 1: Transfer voice audio from remote device to module
Description	Transfer voice audio between module and remote device by default if no parameter set

AT+HFPVR - Start/Stop Voice Recognition of Remote Device

Command	AT+HFPVR=Param
`Param`	0-Stop 1-Start
Description	Start/Stop Voice Recognition of Remote Device (such as Siri for iOS devices)

AT+HFPSCO - HFP SCO Configuration

Command	AT+HFPSCO=Param
`Param`	0-default 1-always to HF 2-always to AG

AT+HFPBATT - Send device battery level

Command	AT+HFPBATT=Param
`Param`	level(0-9)

A2DP/AVRCP Commands

AT+A2DPSTAT - Read A2DP State

Command	AT+A2DPSTAT
Response	+A2DPSTAT=Param
Description	Format description reference: +A2DPSTAT - A2DP State

AT+A2DPCONN - Establish A2DP Connection

Command	AT+A2DPCONN{=Param}
`Param`	MAC address of target device (12 Bytes ASCII)
Description	Reconnect to last A2DP device if parameter not exist

AT+A2DPDISC - Release A2DP Connection

Command	AT+A2DPDISC
Description	Release current A2DP connection with remote device

AT+A2DPCFG - Read/Write A2DP Configuration

Command	AT+A2DPCFG=Param
`Param`	A base-10 representation of a bit field, for each bit
`BIT[0]`	0: Disable AAC Codec 1: Enable AAC Codec
`BIT[1]`	0: Disable APTX Codec 1: Enable APTX Codec
`BIT[2]`	0: Disable APTX-LL Codec 1: Enable APTX-LL Codec
`BIT[3]`	0: Disable APTX-HD Codec 1: Enable APTX-HD Codec
`BIT[4]`	0: Disable APTX-AD Codec 1: Enable APTX-AD Codec
`BIT[5]`	0: Disable LDAC Codec 1: Enable LDAC Codec

Example:Read current A2DP configuration
<< AT+A2DPCFG
>> +A2DPCFG=0
>> OK
Example::Set A2DP configuration to: Only enable AAC Codec
<< AT+A2DPCFG=1
>> OK

AT+A2DPDEC - Read A2DP Decoder

Command	AT+A2DPDEC
Response	+A2DPDEC=Param
`Param`	1:SBC 2:AAC 3:APTX 4:APTX-HD 5:APTX-AD

AT+A2DPRES - The resampling function is enabled

Command	AT+A2DPRES
Response	+A2DPRES=Param
`Param`	0:disable 1:enable

This command is used to set the I2S audio output to fix the LRCLK to 44.1K or 48K output

AT+A2DPBIS - Classic Bluetooth to BIS broadcast stream

Command	AT+A2DPBIS
`Param`	0:close 1:open

This command works when connecting classic Bluetooth to play music while bis broadcasts. Currently,

it only supports sbc and aac encoding. It takes effect upon restart

AT+AVRCPSTAT - Read AVRCP State

Command	AT+AVRCPSTAT
Response	+AVRCPSTAT=Param
Description	Format description reference: +AVRCPSTAT - AVRCP State

AT+AVRCPCFG - Get/Set AVRCP Configuration

Command	AT+AVRCPCFG{=Param}
`Param`	A base-10 representation of a bit field, default:11, for each bit:
`BIT[0]`	Auto get track ID3 information (title, artist, album) on track changed.default:1
`BIT[1-4]`	Auto get track play progress if value > 0. default:5 second
`BIT[5]`	Enable volume synchronization Settings. Default :0

Example: Read AVRCP configuration
<< AT+AVRCPCFG
>> +AVRCPCFG=1
OK
Example: Get track play progress every 1 second
<< AT+AVRCPCFG=3
>> OK

AT+PLAYPAUSE - Track Play/Pause

Command	AT+PLAYPAUSE
Description	Send play or pause command to remote media player according to current play status

AT+PLAY - Track Play

Command	AT+PLAY
Description	Send play command to remote media player

AT+PAUSE - Track Pause

Command	AT+PAUSE
Description	Send pause command to remote media player

AT+STOP - Track Stop

Command	AT+STOP
Description	Send stop command to remote media player

AT+FORWARD - Track Forward

Command	AT+FORWARD
Description	Send forward command to remote media player

AT+BACKWARD - Track Backward

Command	AT+BACKWARD
Description	Send backward command to remote media player

AT+FFWD - Track FastForward

Command	AT+FFWD=Param
`Param`	0-Fast Forward Release, 1-Fast Forward Press
Description	Send fast forward command to remote media player

AT+RWD - Track Rewind

Command	AT+RWD=Param
`Param`	0-Rewind Release, 1-Rewind Press
Description	Send rewind command to remote media player

PBAP Commands

AT+PBSTAT - Read PBAP state

Command	AT+PBSTAT
Response	+PBATAT=Param
Description	Format description reference: +PBSTAT - PBAP State

AT+PBCONN - Establish PBAP Connection

Command	AT+PBCONN{=Param}
`Param`	MAC address of target device (12 Bytes ASCII)
Description	Module will use current HFP device’ MAC address if parameter not exist For some firmware release, module will establish PBAP connection automatically on received command AT+PBDOWN

AT+PBDISC - Release PBAP Connection

Command	AT+PBDISC
Description	Release current PBAP connection with remote device

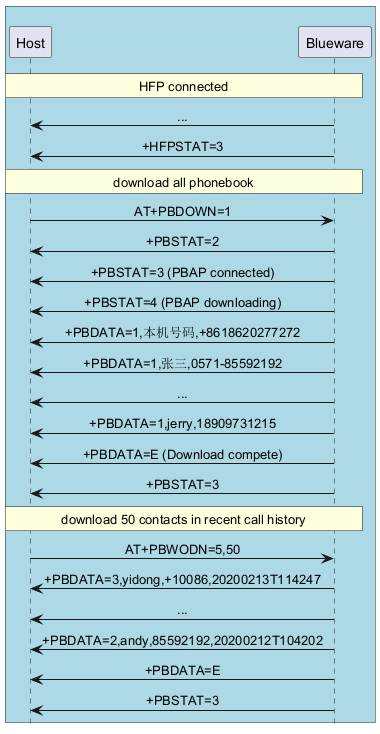

AT+PBDOWN - Download Phonebook

Command	Param1{,Param2}
`Param1`	Phonebook type(0-5) (0) Phonebook (SIM Storage) (1) Phonebook (Phone Storage) (2) Received call log (3) Dialed call log (4) Missed call log (5) All call log
`Param2`	Max items (1~65535, default:3000 for phonebook; 50 for call log)
Description	For some phones (e.g. iPhone), the contact download permission must be turned on in phone’s Bluetooth settting refer to application note for more description: Phonebook downloading

SPP Commands

AT+SPPSTAT - Read SPP State

Command	AT+SPPSTAT
Response	+SPPATAT=Param
Description	Format description reference: +SPPSTAT - SPP State

AT+SPPCONN - Establish SPP Connection

Command	AT+SPPCONN{=Param}
`Param`	MAC address of target device (12 Bytes ASCII)
Note	BT1058 V1.0.7 does not support this command function

AT+SPPDISC - Release SPP Connection

Command	AT+SPPDISC
Description	Release current SPP connection with remote device

AT+SPPSEND - Send Data Via SPP

Command	AT+SPPSEND=Param1,Param2
`Param1`	Payload length (1~492)
`Param2`	Payload (1~492 Bytes)
Description	If throughput mode is on, this command is de-active

Example: Send data “1234567890” to remote device via SPP
<< AT+SPPSEND=10,1234567890
>> OK

GATT Commands

AT+GATTSTAT - Read GATT State

Command	AT+GATTSTAT
Response	+GATTATAT=Param
Description	Format description reference: +GATTSTAT - GATT State

AT+GATTDISC - Release GATT Connection

Command	AT+GATTDISC
Description	Release current GATT connection with remote device

AT+GATTSEND - Send Data Via GATT

Command	AT+GATTSEND=Param1,Param2
`Param1`	Payload length (1~492)
`Param2`	Payload (1~492 Bytes)
Description	If throughput mode is on, this command is de-active

Example: Send data “1234567890” to remote device via GATT
<< AT+GATTSEND=10,1234567890
>> OK

BIS Commands

AT+BISSTAT - Read BIS State

Command	AT+BISSTAT
Response	+BISATAT=Param
Description	Format description reference: +BISSTAT - BIS State

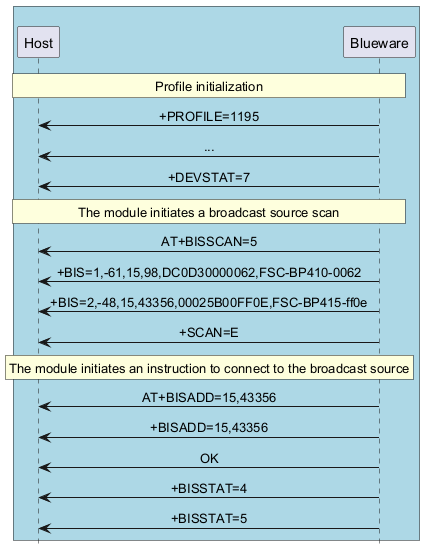

AT+BISSCAN - Scan BIS-Source devices

Command	AT+BISSCAN{=Param}
`Param`	Scan timeout

Example: AT+BISSCAN = 10. Set the scanning duration unit to:S
+BISSTAT=2
+BIS=1,-55,15,9,DC0D30000009,FSC-BP410-0009
+BIS=2,-64,15,98,DC0D30000062,FSC-BP410-0062
+BIS=3,-50,15,43356,00025B00FF0E,FSC-BP415-ff0e
+SCAN=E

AT+BISADD - Add a synchronous broadcast source

Command	AT+BISID{=Param1,Param2}
`Param1`	adv_sid
`Param2`	broadcast_id

Example: AT+BISADD=15,62640 Add a synchronous broadcast source.
+BISADD=15,62640
OK

AT+BISREMOVE - BIS Remove broadcast source

Format	AT+BISREMOVE
`Param1`	NULL

AT+BISPLAYPAUSE - BIS Play pause control

Format	AT+BISPLAYPAUSE=Param1
`Param1`	NULL

AT+BISPLAY - BIS play

Format	AT+BISPLAY=Param1
`Param1`	NULL

AT+BISPAUSE - BIS pause

Format	AT+BISPAUSE=Param1
`Param1`	NULL

CIS Commands

AT+CISSTAT - Read CIS State

Command	AT+CISSTAT
Response	+CISSTAT=Param
Description	Format description reference: +BISSTAT - BIS State

GAME Command

AT+GAMEENABLE - Game mode enabled

Format	AT+GAMEENABLE=Param
`Param`	NULL

At present, the game mode only supports the classic Bluetooth mode to open this mode AAC,SBC corresponding encoding format delay

Get a better gaming experience with dynamic latency set to a fixed 100ms low latency state

AT+GAMEDISABLE - disable

Format	AT+GAMEDISABLE=Param
`Param`	NULL

Device mode Command

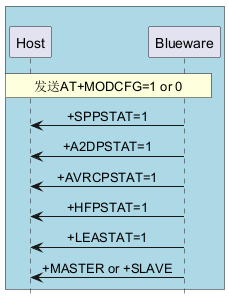

AT+MODCFG - Device mode setting

Format	AT+MODCFG=Param
`Param`	0-slave 1-master

Set device mode 0 Set to slave for receiving Bluetooth signals Applied to speakers, earphones and other receiving devices.

Set Device mode 1 Set to master for transmitting Bluetooth signals applied to Dongle devices.

AT+AUDMODE - Device Bluetooth audio mode Settings

Format	AT+AUDMODE=Param
`Param`	0-bredr 1-bis 2-cis

This command takes effect only after being set as the primary end

At present, the main end only supports USB BIS transmission, and then improves the classic Bluetooth and CIS main end instructions

Events Table

General Events

+PAIRED - Pair Result

Format	+PAIRED=Param
`Param`	MAC address (12 Bytes ASCII) of current pairing device

HFP Events

+HFPSTAT - HFP State

Format	+HFPSTAT=Param
`Param1`	(0~6) (0) Unsupported (1) Standby (2) Connecting (3) Connected (4) Outgoing call (5) Incoming call (6) Active call

+HFPDEV - HFP Remote Device Information

Format	+HFPDEV=Param1{,Param2}
`Param1`	(12 Bytes ASCII), Remote MAC address of current HFP connection
`Param2`	(UTF8), Remote device name of current HFP connection

Example: HFP connect success with device

>> +HFPDEV=1C5CF226D774, iPhone

+HFPCID - Incoming/Outgoing Call Number

Format	+HFPCID=Param
`Param`	(1~25 Bytes ASCII), Call number

Example: Dial number 10086
<< AT+HFPDIAL=10086
>> +HFPSTAT=4
>> +HFPCID=10086
>> +HFPCIE=China Mobile
>> +HFPAUDIO=1

Example: Incoming call with number 13265463800
>> +HFPSTAT=5
>> +HFPCID=13265463800
>> +HFPCIE=Jerry
>> +HFPAUDIO=1

+HFPCIE - Incoming/Outgoing Call Name

Format	+HFPCIE=Param
`Param`	(UTF8), Call name
Note	This event is supported by IOS mobile phones, but not supported by most Android phones

+HFPAUDIO - HFP Voice Audio State

Format	+HFPAUDIO=Param
`Param`	(0) HFP voice audio disconnected, audio input/output routed to remote device (1) HFP voice audio connected, audio input/output routed to module

+HFPSIG - HFP Remote Device Network Signal Strength

Format	+HFPSIG=Param
`Param`	(0~5)Network signal strength of remote device

+HFPROAM - HFP Remote Device Roaming State

Format	+HFPROAM=Param
`Param`	(0/1) Roaming state of remote device

+HFPBATT - HFP Remote Device Battery Level

Format	+HFPBATT=Param
`Param`	(0~5) Battery level of remote device

+HFPNET - HFP Remote Device Network Operator Selection

Format	+HFPNET=Param
`Param`	（UTF8）Network operator selection of remote device

+HFPMANU - HFP Remote Device Manufacture

Format	+HFPMANU=Param
`Param`	（UTF8）Manufacture name of remote device

+HFPNUM - HFP Remote Device Phone Subscriber Number

Format	+HFPNUM=Param
`Param`	(ASCII)Phone subscriber number of remote device

+HFPIBR - HFP Remote Device In-band-ring Support

Format	+HFPIBR=Param
`Param`	(0/1) In-band-ring support
Description	Report whether the current connected phone support in-band-ring

A2DP/AVRCP Events

+A2DPSTAT - A2DP State

Format	+A2DPSTAT=Param
`Param`	(0) Unsupported (1) Standby (2) Connecting (3) Connected (4) Paused (5) Streaming

+A2DPDEV - A2DP Remote Device Information

Format	+A2DPDEV=Param1{,Param2}
`Param1`	(12 Bytes ASCII), Remote device’s MAC address of current A2DP connection
`Param2`	(UTF8), Remote device’s name of current A2DP connection

+AVRCPSTAT - AVRCP State

Format	+AVRCPSTAT=Param
`Param`	(0) Unsupported (1) Standby (2) Connecting (3) Connected

+PLAYSTAT - Media Player State

Format	+PLAYSTAT=Param
`Param`	(0) Stopped (1) Playing (2) Paused (3) Fast Forwarding (4) Fast Rewinding

+TRACKSTAT - Media Player Play Progress

Format	+TRACKSTAT=Param1,Param2,Param3
`Param1`	(0~4), Media Player State, see +PLAYSTAT
`Param2`	(Decimal ASCII),Elapsed time of current track in millisecond
`Param3`	(Decimal ASCII),Total time of current track in millisecond

Example: Read media player play progress every 1s
>> +TRACKSTAT=1,54000,322000
>> +TRACKSTAT=1,55000,322000
>> +TRACKSTAT=1,56000,322000

+TRACKINFO - Media Track Information

Format	+TRACKINFO=Param1,Param2,Param3
`Param1`	title
`Param2`	artist
`Param3`	album

Example: Phone playing song “Creep-Radio Head”

>> +TRACKINFO=Creep , Radiohead , Pablo Honey

Phonebook Access Events

+PBSTAT - PBAP State

Format	+PBSTAT=Param
`Param`	(0) Unsupported (1) Standby (2) Connecting (3) Connected (4) Downloading

+PBCNT - Phonebook Entries of Remote Device

Format	+PBCNT=Param
`Param`	Phonebook entries of remote device

+PBDATA - Phonebook Data

Format1	+PBDATA=Param1<FF>Param2<FF>Param3{<FF>Param4}
`Param1`	Type (0) Phonebook (SIM Storage) (1) Phonebook (Phone Storage) (2) Received call log (3) Dialed call log (4) Missed call log
`Param2`	Name
`Param3`	Number
`Param4`	(15 Bytes ASCII), Call time if current download type is call log Format: Year(4Bytes) Month(2Bytes) Day(2Bytes) T(1Byte) Hour(2Bytes) Minute(2Bytes) Second(2Bytes). e.g. 20161012T152826 represents 2016/10/12/15/28/26
Format2	+PBDATA=E: Download complete
Description	Call time may not exist for some mobile phones

Example: Download all phonebook

<< AT+PBDOWN=1

>> +PBCNT=234

+PBDATA=1,Jack,18219146201
+PBDATA=1,kenan,8613771972680
……
+PBDATA=E

Example: Download 10 dialed call log

<< AT+PBDOWN=3,10

>> +PBDATA=3,China Mobile,10086,20171013T103516

+PBDATA=3,Jerry,18688967507,20171012T152826
……
+PBDATA=E

SPP Events

+SPPSTAT - SPP State

Format	+SPPSTAT=Param
`Param`	(0) Unsupported (1) Standby (2) Connecting (3) Connected

+SPPDATA - SPP Received Incoming Data

Format	+SPPDATA=Param1,Param2
`Param1`	Payload length
`Param2`	Payload

Example: Received data “1234567890” from remote device via SPP

<< +SPPDATA=10,1234567890

GATT Events

+GATTSTAT - GATT State

Format	+GATTSTAT=Param
`Param`	(0) Unsupported (1) Standby (2) Connecting (3) Connected

+GATTDATA - GATT Received Incoming Data

Format	+GATTDATA=Param1,Param2
`Param1`	Payload length
`Param2`	Payload

Example: Received data “1234567890” from remote device via GATT

<< +GATTDATA=10,1234567890

BIS Events

+BISSTAT - BIS State

Format	+BISSTAT=Param
`Param`	(0) Unsupported (1) Standby (2) Scanning (3) Connected (4) Paused (5) Streaming

+BIS - BIS The scanning result

Format	+BIS=Param1,Param2,Param3,Param4,Param5,Param6
`Param1`	index value
`Param2`	RSSI
`Param3`	broadcast sid
`Param4`	broadcast id
`Param5`	mac address
`Param6`	device name

CIS Events

+CISSTAT - CIS State

Format	+BISSTAT=Param
`Param`	(0) Unsupported (1) LeaUnicasSink_idle (2) LeaUnicasSink_disconnected (3) LeaUnicasSink_ase_enabling (4) LeaUnicasSink_ase_streamming

Application scenarios

profiles initializing and change parameter

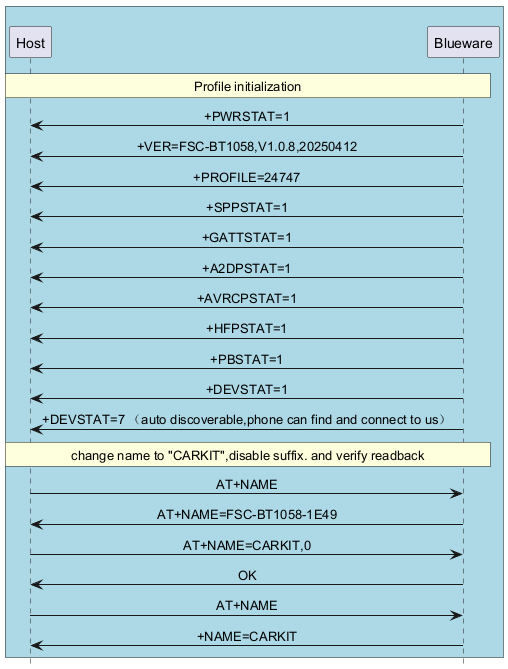

The following figure shows Profile initialization and name modification

MCU change device name CARKIT reference code:

void change_name(void)
{
    uart_send("AT+NAME\r\n");
    if(uart_read("+NAME",name_buf))
    {
        if(memcmp(name_buf,"CARKIT",6))
        {
            uart_send("AT+NAME=CARKIT,0\r\n");      //defalut disable MAC address suffix
            uart_send("AT+NAME\r\n"); // read bt name
            if(uart_read("+NAME",name_buf))
            {
                if(memcmp(name_buf,"CARKIT",6))
                {
                    //change name fail
                }
                else
                {
                    //change name success
                }
            }
        }
    }
}

Note

modify any parameters, it is recommended to query first and then modify the final verification

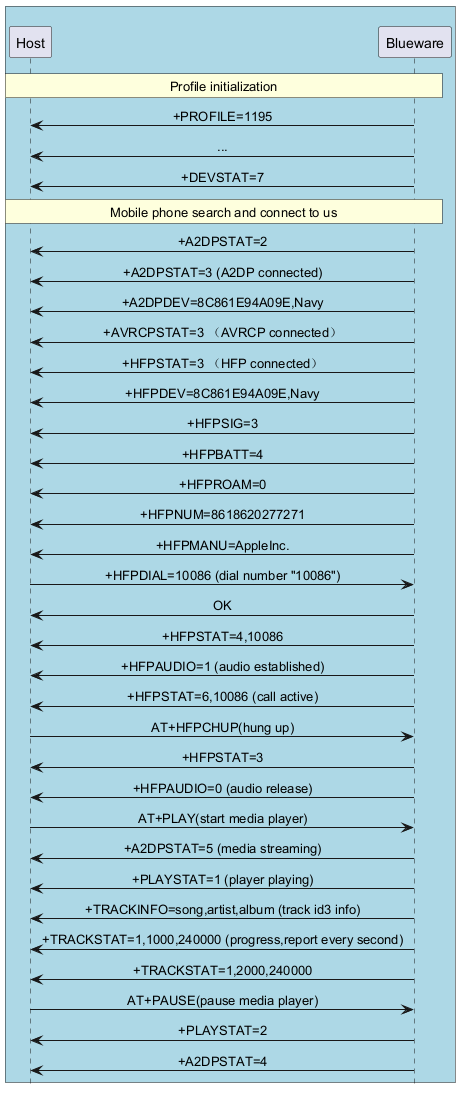

Classic BT Receive mode connection

LE Audio Broadcast Scan connection

Phonebook downloading

@startuml
hide footbox
skinparam sequenceMessageAlign center

box #LightBlue
participant Host as host
participant Blueware as bt
end box

rnote over host, bt: HFP connected

bt -> host: ...
bt -> host: +HFPSTAT=3

rnote over host, bt: download all phonebook
host -> bt: AT+PBDOWN=1
bt -> host: +PBSTAT=2
bt -> host: +PBSTAT=3 (PBAP connected)
bt -> host: +PBSTAT=4 (PBAP downloading)
bt -> host: +PBDATA=1,本机号码,+8618620277272
bt -> host: +PBDATA=1,张三,0571-85592192
bt -> host: ...
bt -> host: +PBDATA=1,jerry,18909731215
bt -> host: +PBDATA=E (Download compete)
bt -> host: +PBSTAT=3

rnote over host, bt: download 50 contacts in recent call history
host -> bt: AT+PBWODN=5,50
bt -> host: +PBDATA=3,yidong,+10086,20200213T114247
bt -> host: ...
bt -> host: +PBDATA=2,andy,85592192,20200212T104202
bt -> host: +PBDATA=E
bt -> host: +PBSTAT=3

@enduml

Appendix

设备模式切换

Download PDF Document

Download PDF Document

1	I2S Master; Sample rate=48000Hz; Resolution=16bits; Bit clock= 48000162ch=1.536Mhz
3	I2S Slave; Sample rate=48000Hz; Resolution=16bits; Bit clock= 48000162ch=1.536Mhz
65	I2S Master; Sample rate=48000Hz; Resolution=32bits; Bit clock= 48000322ch=3.072Mhz
67	I2S Slave; Sample rate=48000Hz; Resolution=32bits; Bit clock= 48000322ch=3.072Mhz
