FSC-BT630 user guide

Introduction

Description

This design guide is suitable for engineers developing FSC-BT630 series Bluetooth modules

Module Default Settings

Name	Feasycom
Service UUID	FFF0
Write UUID	FFF2
Notify UUID	FFF1
UART Baudrate	115200/8/N/1

Hardware Description

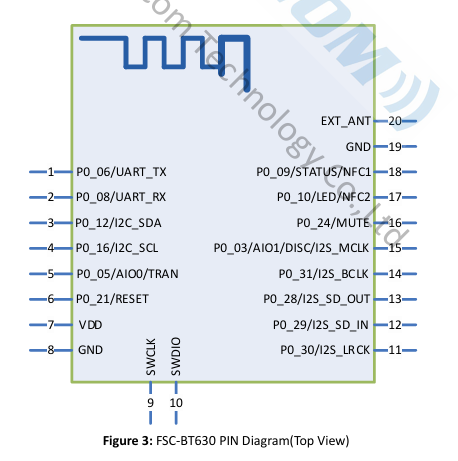

Pin Diagram

Pin Description

Pin	Pin Name	Type	Pin Descriptions
1	UART_TX	O	UART data output
2	UART_RX	I	UART data input
6	RESET	I	External reset input: Active LOW
7	VDD	Power	Power supply voltage 3.3V, LDO power supply preferred
8	GND	GND	GND
9	SWCLK	I/O	Serial wire debug clock input for debugand programming
10	SWDIO	I/O	Serial wire debug I/O for debug and programming
17	LED	O	Bluetooth not connected output square wave, Bluetooth connection output high level
18	STATUS	O	Bluetooth not connected output low level, Bluetooth connection output high level
20	EXT_ANT	ANT	Changing the 0 ohm resistance near the antenna, it is possible to connect a Bluetooth antenna externally

Hardware Design Notes

The simple test of the module only needs to connect VDD/GND/UART_RX/UART_TX to use
If the MCU needs to obtain the connection status of the Bluetooth module, it needs to be connected to the STATUS pin
After drawing the schematic diagram, please send it to Feasycom for review, so as to prevent the Bluetooth distance from not reaching the best effect
Module supports wake-up via serial port
VDD/GND/RESET/SWCLK/SWDIO are serial wire debug I/O, which can reserve test points

Function Description

GPIO state

LED PIN is PIN 17

State	Description
2Hz square wave	disconnect state
high level	connected state

Connection status PIN is PIN 18

State	Description
low level	disconnect state
high level	connected state

Mode

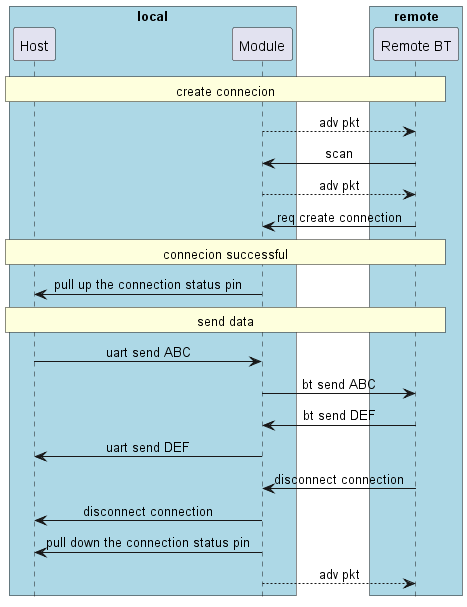

Throughput mode	when disconnected, the data received by the serial port is analyzed according to the AT command; when connected, all the data received by the serial port is sent to the remote Bluetooth as it is.
Command mode	when disconnected, the data received by the serial port is analyzed according to the AT command; when connected, The data received by the serial port is still parsed according to the AT command. when it is necessary to send data to the remote end, send AT+LESEND command.

GATT Throughput Service

type	UUID	Permissions	Description
Service	0xFFF0		GATT Throughput Service
Write	0xFFF2	Write，Write Without Response	APP send data to module
Notify	0xFFF1	Notify	Module send data to remote

Low Power

Support 1 low power consumption mode, serial wake-up mode.

Serial wake-up mode.
Mode	AT command	Sleep method	Description
Serial wake-up	AT+LPM=1	If the serial port exceeds 5s and there is no data communication, it will automatically enter sleep. After sleep, the serial port will exit sleep mode after receiving the first frame of data.	The first frame of data that wakes up will be lost. Simple logic, saves IO.

AT command description

Command description

Throughout this specification:

Content between { } is optional
Content behind << represents a COMMAND from Host
Content behind >> represents a RESPONSE/EVENT to Host

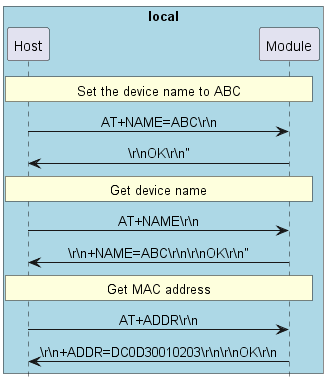

Command

The command is the control command sent by the host to the module actively. After receiving the command, the module needs to reply <CR><LF>OK<CR><LF> as a response.

Command Format

AT+Command{=Param1{,Param2{,Param3…}}}<CR><LF>

All commands start with AT, end with <CR><LF>
<CR> means “carriage return”, corresponds to hex value 0x0D
<LF> means “line feed”, corresponds to hex value 0x0A
If Command has Parameter, Parameter follows behind ‘=’
If Command has multiple Parameters, Parameter must be separated by ‘,’
If Command has Response, Response starts with <CR><LF>, ends with <CR><LF>
The module should always return the result of instruction execution (success returns OK，failure returns ERROR)

Example:
Read module’s name
<< AT+VER
>> +VER=5.2.0,FSC-BT630
>> OK

Write invalid baudrate
<< AT+BAUD=0
>> ERROR

Event

Event is the data that the module actively sends to the host. Generally used to indicate a change of state or data received.

Event Format

<CR><LF>+Indication{=Param1{,Param2{,Param3…}}}<CR><LF>

All Events start with <CR><LF>, end with <CR><LF>
If Event has Parameter, Parameter follow behind ‘=’
If Event has multiple Parameters, Parameter must be separated by ‘,’

Example:
Receive data from APP in command mode
>> +DATA=10,1234567890

Commands Table

AT - Serial communication test

Command	AT
Response	OK
Description	When powering on or changing the baud rate, test the UART communication between the host and the module

Example:
<< AT
>> OK

AT+VER - Get Firmware Version

Command	AT+VER
Response	+VER=Param
`Param`	Firmware version
Description	Get Firmware Version

Example:
<< AT+VER
>> +VER=5.2.0,FSC-BT630
>> OK

AT+ADDR - Get MAC Address

Command	AT+ADDR
Response	+ADDR=Param
`Param`	Module’s MAC address (12 Bytes ASCII)
Description	Get MAC Address

Example:
<< AT+ADDR
>> +ADDR=DC0D30010203
>> OK

AT+NAME - Get/Set Local Name

Command	AT+NAME{=Param1{,Param2}}
`Param1`	local name(1~29 Bytes ASCII)
`Param2`	MAC address suffix(0/1,default:0) 0: Disable suffix 1: Enable suffix “XXXX” (lower 4 bytes of MAC address) after local name
Response	+NAME=Param
`Param`	local name
Description	Write local name if parameter exist, otherwise read current local name

Example:
Read current local name
<< AT+NAME
>> +NAME=Feasycom
>> OK

Change module’s local name to “ABC”
<< AT+NAME=ABC
>> OK

Change module’s local name to “ABC” and enable suffix
<< AT+NAME=ABC,1
>> OK

AT+BAUD - Get/Set Uart Baudrate

Command	AT+BAUD{=Param}
`Param`	baudrate(2400/4800/9600/14400/19200/28800/38400/ 57600/115200/230400/460800/500000/921600/1000000, default:115200)
Response	+BAUD=Param
`Param`	baudrate
Description	Module will change baudrate to target value immediately

Example:
Query baudrate
<< AT+BAUD
>> +BAUD=115200
>> OK

Change baudrate
<< AT+BAUD=9600
>> OK

AT+TXPOWER - Get/Set TX Power

Command	AT+TXPOWER{=Param}
`Param`	tx power(0~9, default:0) 0: 0dbm 1: -40dbm 2: -20dbm 3: -16dbm 4: -12dbm 5: -8dbm 6: -4dbm 7: 0dbm 8: 3dbm 9: 4dbm
Response	+TXPOWER=Param
`Param`	tx power
Description	Get/Set TX Power

Example:
Get tx powe
<< AT+TXPOWER
>> +TXPOWER=7
>> OK

Set tx power to 4dbm
<< AT+TXPOWER=9
>> OK

AT+LPM - Get/Set low power config

Command	AT+LPM{=Param}
`Param`	low power mode (0/1, default: 0) 0: disable 1: enable low power and wake up by UART
Response	+LPM=Param
`Param`	low power mode
Description	Get/Set low power config

Example:
Get low power config
<< AT+LPM
>> +LPM=0
>> OK

Set serial port wakeup mode
<< AT+LPM=1
>> OK

AT+ADVIN - Get/Set advertising interval

Command	AT+ADVIN{=Param}
`Param`	advertising interval (200~10000 ms0 ms, 默认: 200ms)
Response	+ADVIN=Param
`Param`	advertising interval
Description	Get/Set advertising interval

Example:
Get advertising interval
<< AT+ADVIN
>> +ADVIN=152
>> OK

Set advertising interval to 100ms
<< AT+ADVIN=100
>> OK

AT+LEDISC - Disconnect specified connection

Command	AT+DISC
`Param`	Connection serial number (disconnect all connections by default)
Response	OK
Description	disconnect Bluetooth connection

Example:
disconnect all device
<< AT+LEDISC
>> OK

AT+ADVDATA - Get/Set advertising manufacturer specific data

Command	AT+ADVDATA{=Param}
`Param`	manufacturer specific data, tag 0xff
Response	+ADVDATA=Param
`Param`	manufacturer specific data, tag 0xff
Description	Get/Set advertising manufacturer specific data

Example:
Get advertising manufacturer specific data, \x is hexadecimal data
<< AT+ADVDATA
>> +ADVDATA=\x03\x01\x02
>> OK

Set advertising manufacturer specific data, \x is hexadecimal data
<< AT+ADVDATA=\x03\x01\x02
>> OK

AT+IBEACON - Get/Set advertising manufacturer specific data swhitch

Command	AT+IBEACON{=Param}
`Param`	（0~1，Default:1） 0: turn off manufacturer specific data, tag 0xff 1: turn on manufacturer specific data, tag 0xff
Response	+IBEACON=Param
Description	When turned on, BLE will switch between the two broadcast data

Example:
turn on manufacturer specific data, tag 0xff
<< AT+IBEACON=1
>> OK

turn off manufacturer specific data, tag 0xff
<< AT+IBEACON=0
>> OK

AT+LESEND - Send data to remote device

Command	AT+LESEND{=Param1,Param2}
`Param1`	communication channel
`Param2`	data length
`Param3`	data
Response	OK
Description	Even the index information is queried using the AT+CHINFO command

Example:
Send data to the connected device
<< AT+LESEND=1,4,2022
>> OK

AT+REBOOT - Soft Reboot

Command	AT+REBOOT
Response	OK
Description	Module release all Bluetooth connections then reboot

Example:
<< AT+REBOOT
>> OK

AT+RESTORE - Restore Factory Settings

Command	AT+RESTORE
Response	OK
Description	Module restore all factory settings then reboot

Example:
<< AT+RESTORE
>> OK

AT+PIOCFG - Get/Set Pin Function Switch

Command	AT+PIOCFG{=param1,param2}
`param1`	Working mode (0~ 1, default 0). PIN5 low-level throughput mode, high-level command mode. 0: Disable 1: Enable
`param2`	Disconnect (0~ 1, default 1). PIN14 falling edge disconnects. 0: Disable 1: Enable
Response	+PIOCFG=Param1,Param2
Description	Modify Pin function

Example:
Turn on pin control mode
<< AT+PIOCFG=1
>> OK

Turn off the function of two pins.
<< AT+PIOCFG=0,0
>> OK

AT+REGUUID - Register 128bit UUID with the protocol stack

Command	AT+REGUUID=Param
`Param2`	UUID（32-Byte hex string）
Response	OK
Description	128Bit UUID requires registration to be recognized and may be used when connecting devices

Example:
Register128bit UUID：00001100d10211e19b2300025b00a5a5
<< AT+REGUUID=00001100d10211e19b2300025b00a5a5
>> OK

AT+LECCONN - Initiate a connection to the specified address

Command	AT+LECCONN{=Param1{,Param2{,Param3{,Param4}}}}
`Param1`	12-byte device address + 1-byte address type
`Param2`	Communication Service UUID
`Param3`	Communication UUID with write/write without rsp permission
`Param4`	Communication UUID with notification permission
Response	OK
Description	Initiate a connection to the specified device, the parameter consists of 12 bytes (device address) and 1 byte (address type), generally the address type is “0” or “1”. address How to get the address type: Send AT+SCAN=1 command, get parameter2. example: +SCAN=0,0,DC0D30001ED4,-65,10,FSC-BT946 Connection command: AT+LECCONN=DC0D30001ED40

Example:
Connect to the specified device, 0 is the address type
<< AT+LECCONN=DC0D3000039E0
>> OK

Initiate a connection to the specified address, using FFF0, FFF2, FFF1 for communication
<< AT+LECCONN=DC0D3000039E0,FFF0,FFF2,FFF1
>> OK

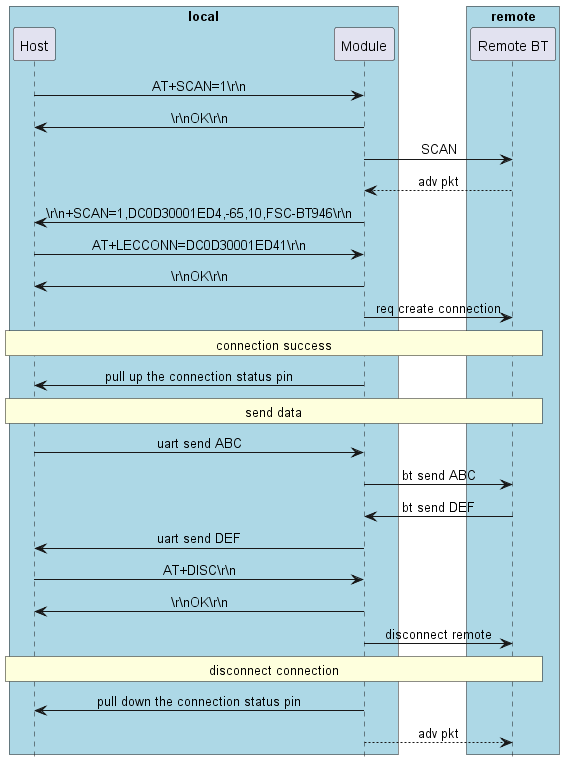

AT+SCAN - SCAN for nearby devices

Command	AT+SCAN{=Param1{, Param2{, Param3}}}
`Param1`	scanning method（0~1） 0: stop scanning 1: Scan nearby devices, filter duplicate addresses, up to 8 devices can be found 2: Scan the BLE advertising packet and output the original advertising data packet
Response	+SCAN=Param1,Param2,Param3,Param4,Param5,Param6 (AT+SCAN=1) +SCAN=Param21,Param22,Param23,Param24,Param25,Param62 (AT+SCAN=2)
`Param6`	Device index
`Param1`	MAC Address type (1 byte)
`Param2`	MAC address (12 bytes)
`Param3`	RSSI
`Param4`	Device name length
`Param5`	Device name
`Param21`	MAC Address type (1 byte)
`Param22`	MAC address (12 bytes)
`Param23`	RSSI
`Param24`	Ad Type
`Param25`	Ad data length
`Param26`	Ad data package（Hex）
Description	AT+SCAN=1 Commonly used for searching before connecting AT+SCAN=2 used as a Bluetooth gateway to search for nearby Beacon devices

Example:
SCAN device
<< AT+SCAN=1
>> +SCAN={
>> +SCAN=1,70CFC9A98840,-43,24,LE-Bose QuietControl 30
>> +SCAN=1,DC0D30001ED4,-65,10,FSC-BT946
>> +SCAN=}

Sniff BLE ads and return data
<< AT+SCAN=2
>> +SCAN{
>> +SCAN=0,DC0D3000129D,-48,0,40,020106030328180C1628180054D621E1DD167776
>> +SCAN}

AT+CHINFO - Read connection peer information

Command	AT+CHINFO=Param
`Param`	0：stop report；1：report once；2： report regularly one second
Response	+CHINFO=Param1,Param2,Param3,Param4,Param5,Param6,Param7,Param8
`Param1`	connected index
`Param2`	connection status (1：Standby，2：Connecting，3：Connected)
`Param3`	Connect role (0：Server，1：Client)
`Param4`	Peer address
`Param5`	RSSI
`Param6`	connection interval
`Param7`	Server delay
`Param8`	connection timedout
Description	Query connection information

Example:
Query connection information
<< AT+CHINFO
>> +CHINFO{
>> +CHINFO=0,3,1,50AE7CE23D14,-54,48,1,400
>> +CHINFO=1,1,0,000000000000,0,0,0,0
>> +CHINFO=2,1,0,000000000000,0,0,0,0
>> +CHINFO=3,1,0,000000000000,0,0,0,0
>> +CHINFO=4,1,0,000000000000,0,0,0,0
>> +CHINFO=5,1,0,000000000000,0,0,0,0
>> +CHINFO}
>> OK

AT+UUIDCFG - Configure the UUID for throughput mode

Command	AT+UUIDCFG=Param1,Param2, Param3
`Param1`	SERVER UUID，Supports 16-bit and 128-bit (hex string)
`Param2`	write UUID，Supports 16-bit and 128-bit (hex string)
`Param3`	notify UUID，Supports 16-bit and 128-bit (hex string)
Response	OK
Description	Configure the UUID for throughput mode

Example:
<< AT+UUIDCFG=FFF0,FFF2,FFF1
>> OK

<< AT+UUIDCFG=6e400001b5a3f393e0a9e50e24dcca9e,6e400003b5a3f393e0a9e50e24dcca9e,6e400002b5a3f393e0a9e50e24dcca9e
>> OK

Event Table

+SCAN - AT+SCAN=1 Scan Result

Indication	+SCAN=Param1,Param2,Param3,Param4,Param5,Param6
`Param1`	Devices index
`Param2`	MAC address type (1 Byte)
`Param3`	MAC address (12 Bytes ASCII)
`Param4`	RSSI
`Param5`	remote device name len
`Param6`	remote device name
Description	After the module receives AT+SCAN=1, it will continue to scan, and report through +SCAN after finding the device

Example:
SCAN device
<< AT+SCAN=1
>> +SCAN={
>> +SCAN=1,70CFC9A98840,-43,24,LE-Bose QuietControl 30
>> +SCAN=1,DC0D30001ED4,-65,10,FSC-BT946
>> +SCAN=}

+SCAN - AT+SCAN=2 Scan Result

Indication	+SCAN=Param1,Param2,Param3,Param4,Param5,Param6
`Param1`	MAC address type（1-Byte）
`Param2`	MAC address（12-Byte）
`Param3`	RSSI
`Param4`	Ad type
`Param5`	Ad data length
`Param6`	Ad data package（hex string）
Description	After the module receives AT+SCAN=2, it will continue to scan, and report through +ADVDATA after finding the device

Example:
Sniff BLE ads and return the original data source (garbled part is the original data source, using hex format)
<< AT+SCAN=2
>> +SCAN{
>> +SCAN=0,DC0D3000129D,-48,0,40,020106030328180C1628180054D621E1DD167776
>> +SCAN}

+GATTSTAT - GATT State

Indication	+GATTSTAT=Param1,Param2
`Param1`	Connection channel
`Param2`	GATT State (1~3) 1: Standby 2: Connecting 3: Connected
Description	In the command mode, if the connection status of the module changes, it will be actively reported through +GATTSTAT

Example:
Connected
>> +GATTSTAT=0,3

+DATA - GATT Received Incoming Data

Indication	+DATA=Param1,Param2,Param3
`Param1`	Connect index
`Param2`	Payload length
`Param3`	Payload

Example:
received data 1234567890
>> +DATA=0,10,1234567890

Application scenarios

Get/Set the default parameters of the module

When the module is disconnect state, it will parse the uart data according to the AT command. The host can get and set the default parameters of the module, as shown in the figure below:

Set the device name to ABC
Get device name
Get MAC address

@startuml
hide footbox
skinparam sequenceMessageAlign center

box "local" #LightBlue
participant Host as host
participant Module as bt
end box

rnote over host, bt: Set the device name to ABC

host -> bt: AT+NAME=ABC\\r\\n
bt -> host: \\r\\nOK\\r\\n"

rnote over host, bt: Get device name

host -> bt: AT+NAME\\r\\n
bt -> host: \\r\\n+NAME=ABC\\r\\n\\r\\nOK\\r\\n"

rnote over host, bt: Get MAC address

host -> bt: AT+ADDR\\r\\n
bt -> host: \\r\\n+ADDR=DC0D30010203\\r\\n\\r\\nOK\\r\\n

@enduml

Process of sending data

When the module is powered on, it will continue to send advertising data, and the remote device (mobile phone) can scan the advertising packet. And initiate a connection request to the module. After the connection is successful, the module will pull up the connection status pin to notify the host that the Bluetooth connection is successful. The host can send data to the remote device through the Bluetooth module, and the remote device can also send data to the host.

@startuml
hide footbox
skinparam sequenceMessageAlign center

box "local" #LightBlue
participant Host as host
participant Module as bt
end box

box "remote" #LightBlue
participant ”Remote BT“ as remote
end box

rnote over host, remote: create connecion

bt --> remote: adv pkt
bt <- remote: scan
bt --> remote: adv pkt
bt <- remote: req create connection

rnote over host, remote: connecion successful

host <- bt: pull up the connection status pin

rnote over host, remote: send data

host -> bt: uart send ABC
bt -> remote: bt send ABC
bt <- remote: bt send DEF
host <- bt: uart send DEF

bt <- remote: disconnect connection

host <- bt: disconnect connection

host <- bt: pull down the connection status pin
bt --> remote: adv pkt

@enduml

The module acts as the central to connect to the remote device

The module can be used as a master device to connect to the slave device, and the host can send commands to control the module to scan and connect and disconnect. The figure below shows the process of connecting other devices:

FAQ

How can IOS phones obtain Bluetooth MAC addresses?

For security reasons, the IOS system converts the Bluetooth MAC address into UUID at the bottom layer

and sends it to the upper layer application. So the app cannot obtain the MAC address of the device.

FSC-BT630 will place the MAC address in the broadcast by default, and the APP can obtain the MAC address from the broadcast packet using the following method.

- (void)centralManager:(CBCentralManager *)central didDiscoverPeripheral:(CBPeripheral *)peripheral advertisementData:(NSDictionary *)advertisementData RSSI:(NSNumber *)RSSI
{
    if(![self describeDictonary:advertisementData])
    {
        NSLog(@"is not fsc module");
        return;
    }
}

- (Boolean)describeDictonary: (NSDictionary *) dict
{
    NSArray *keys;
    id key;
    keys = [dict allKeys];
    for(int i = 0; i < [keys count]; i++)
    {
        key = [keys objectAtIndex:i];
        if([key isEqualToString:@"kCBAdvDataManufacturerData"])
        {
            NSData *tempValue = [dict objectForKey:key];
            const Byte *tempByte = [tempValue bytes];
            if([tempValue length] == 6)
            {
                // tempByte MAC address
                return true
            }
        }else if([key isEqualToString:@"kCBAdvDataLocalName"])
        {
            //there is name
            //NSString *szName = [dict objectForKey: key];
        }
    }
    return false;
}

Appendix

Download PDF Document

Download PDF Document
