FSC-BT1035 指令手册

介绍

描述

本设计指南适用于工程师开发 FSC-BT1035 系列蓝牙模组,同样也适合BT806、BT802系列模组

模组默认参数

Name	FSC-BT1035
LE-Name	FSC-BT1035-LE
Pin Code	0000
Secure Simple Pairing Mode	ON
UART Baudrate	115200/8/N/1

硬件说明

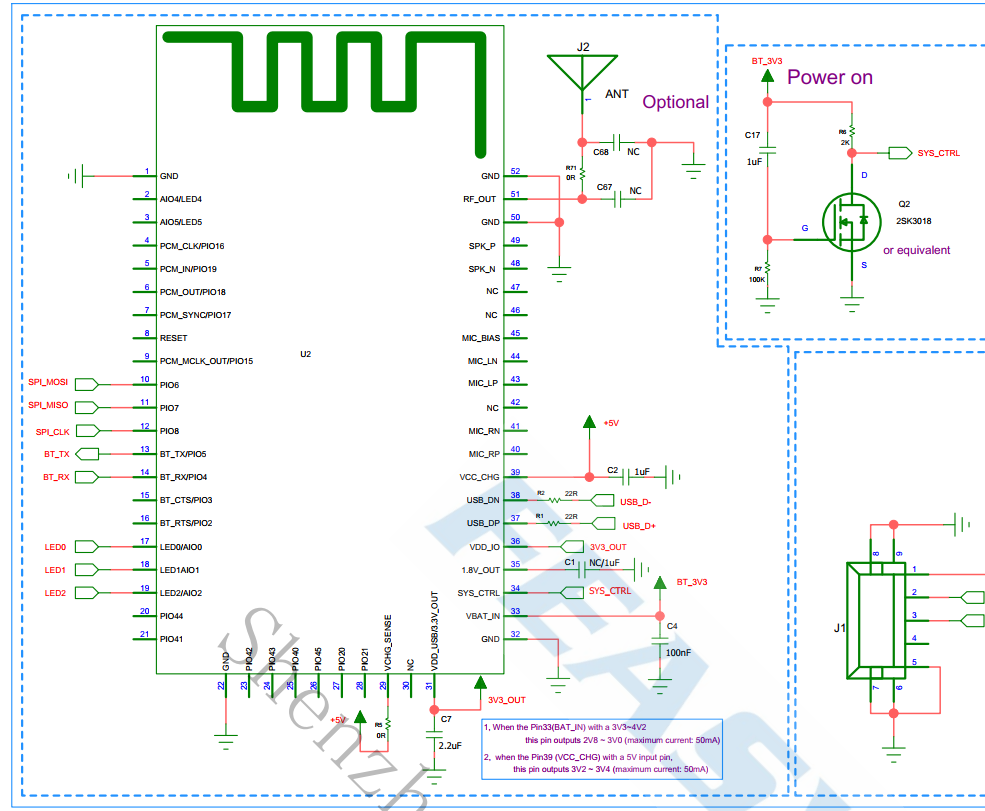

引脚图

以|ModuleName|为例:

引脚描述

Pin	Pin Name	Type	Pin Descriptions
4	I2S_CLK	I/O	I2S BCLK
5	I2S_IN	I	I2S DATA IN
6	I2S_OUT	O	I2S DATA OUT
7	I2S_WS	I/O	I2S SYNC
8	RESET	I	低电平复位
13	UART_TX	O	串口TX
14	UART_RX	I	串口RX
15	UART_CTS	I/O	串口流控脚
16	UART_RTS	I/O	串口流控脚(默认为PA脚)
17	LED0	I/O	配对模式时输出方波, 蓝牙已连接输出高电平
32	GND	GND	GND
33	VDD	VDD	3.3V供电，建议使用LDO供电
34	SYS_CTRL	I	Delay 100ms, pull high
36	VDD_IO	I	pio supply
37	USB_DP		USB D+
38	USB_DN		USB D-
43	MIC_LP	Audio	MIC0/Line_IN differential L input, positive
44	MIC_LN	Audio	MIC0/Line_IN differential L input, negative
45	MIC_BIAS	Audio	MIC Power Supplies
46	SPK_RN	Audio	Headphone/speaker differential R output, negative
47	SPK_RP	Audio	Headphone/speaker differential R output, positive
48	SPK_LN	Audio	Headphone/speaker differential L output, negative
49	SPK_LP	Audio	Headphone/speaker differential L output, positive
51	EXT_ANT	ANT	改变天线附近的0欧电阻，可以外接蓝牙天线

硬件设计说明

模组简易测试只需要连接VDD/VDD_IO/VREG_IN/GND/UART_RX/UART_TX即可使用
画完原理图后请发给飞易通进行审核，避免蓝牙距离达不到最佳效果

功能说明

Profiles & Features

SPP (Serial Port Profile)
GATTS (Generic Attribute Profile LE-Peripheral role)
GATTC (Generic Attribute Profile LE-Central role)
HFP-HF (Hands-Free Profile)
HFP-AG (Hands-Free-AG Profile)
A2DP-Sink (Advanced Audio Distribution Profile)
A2DP-Source (Advanced Audio Distribution Profile)
AVRCP-Controller (Audio/Video remote controller Profile)
AVRCP-Target (Audio/Video remote controller Profile)
HID-DEVICE (Human Interface Profile)
PBAP (Phonebook Access Profile)

GATT透传服务

类型	UUID	权限	描述
Service	0xFFF0		透传服务
Write	0xFFF2	Write,Write Without Response	APP发给模组
Notify	0xFFF1	Notify	模组发给APP

指令说明

规范说明

适用于整个文档 - {} : 包括与{…}中的内容为可选项 - << : 主机发给模组的 COMMAND - >> : 模组回复主机的 RESPONSE/EVENT

指令格式

AT+Command{=Param1{,Param2{,Param3…}}}<CR><LF>

All commands start with “AT”, end with <CR><LF>
<CR> means “carriage return”, corresponds to hex value 0x0D
<LF> means “line feed”, corresponds to hex value 0x0A
If Command has Parameter, Parameter follows behind ‘=’
If Command has multiple Parameters, Parameter must be separated by ‘,’
If Command has Response, Response starts with <CR><LF>, ends with <CR><LF>
Module will always report command’s execution result by using “OK” for success or “ERROR” for failure
所有的指令使用 AT 开头，使用 <CR><LF> 结尾
<CR> 代表回车符，对应 HEX 为 0x0D
<LF> 代表换行符，对应 HEX 为 0x0A
若指令包含参数，参数应使用 = 分隔
若指令包含多项参数，参数应使用 , 分隔
若指令有响应返回，响应使用 <CR><LF> 开始，使用 <CR><LF> 结束
模组应当总是返回指令执行的结果 (成功返回 OK，失败时返回 ERR<code>)

Example:
读取模块经典蓝牙名称
<< AT+NAME
>> +NAME=FSC-BT1035XXXX
>> OK

Example:
当没有来电时接听来电
<< AT+HFPANSW
>> ERROR

Event格式

<CR><LF>+Indication{=Param1{,Param2{,Param3…}}}<CR><LF>

所有的事件使用<CR><LF>开始, 使用<CR><LF>结束
若事件包含参数, 参数应位于 “=” 后面
若事件包含多项参数, 参数应使用 “,” 分割

Example:
手机端通过SPP协议发送”1234567890”
>> +SPPDATA=10,1234567890

指令表

通用指令

AT+HELP - 查询固件功能和命令说明

Command	AT+HELP
Response	<FIRMWARE FUNCTION: appropriate working scenario > <OTA PATH: latest suitable firmware path on server for upgrade On-The-Air> <ENABLED PROFILES: LINKS: ON/OFF> … … <COMMAND SUMMARY: DESCRIPTION: PROFILE CATEGORY>
Description	使用help命令获取基本摘要信息

AT+VER - 读取固件版本

Command	AT+VER
Response	+VER=Param1,Param2,Param3
`Param1`	模块类型
`Param2`	固件版本
`Param3`	生产日期

Example:
<< AT+VER
>> +VER=BT1035,V2.6.1,20220922
>> OK

AT+BAUD - 读/写串口波特率

Command	AT+BAUD{=Param}
`Param`	9600/19200/38400/57600/115200(default)/230400/460800/921600
Response	+BAUD=Param
Description	模组波特率将立即更改为设定值，或重启后生效，这取决于固件版本

Example:
读取波特率
<< AT+BAUD
>> +BAUD=115200
>> OK

设置波特率
<< AT+BAUD=921600
>> OK

AT+I2SCFG - 设置I2S格式

Command	AT+I2SCFG{=Param}
`Param`	以10进制位字段表示,默认为0，每位表示
`BIT[0]`	0:disable; 1:enable
`BIT[1]`	0:master; 1:slave
`BIT[2]`	0:FS=48000Hz;1:FS=44100Hz
`BIT[3]`	0:left justified; 1:right justified
`BIT[4]`	0:data 1 bit delay; 1:data no delay
`BIT[5-6]`	00: bit depth=16bits 01: bit depth=24bits 10: bit depth=32bits
Response	+I2SCFG=Param

Example:常用组合配置如下:

1	I2S Master; Sample rate=48000Hz; Resolution=16bits; Bit clock= 48000162ch=1.536Mhz
3	I2S Slave; Sample rate=48000Hz; Resolution=16bits; Bit clock= 48000162ch=1.536Mhz
65	I2S Master; Sample rate=48000Hz; Resolution=32bits; Bit clock= 48000322ch=3.072Mhz
67	I2S Slave; Sample rate=48000Hz; Resolution=32bits; Bit clock= 48000322ch=3.072Mhz

AT+MICGAIN - 设置麦克风音量

Command	AT+MICGAIN{=Param}
`Param`	Gain (0~15, default:10)
Description	调整Codec模拟输入音量,I2S模式设置无效

AT+SPKVOL - 设置扬声器音量

Command	AT+SPKVOL{=Param}
`Param`	音频扬声器音量 (0~15, default:10)

AT+REBOOT - 软件复位

Command	AT+REBOOT
Response	OK
Description	模块将复位

AT+RESTORE - 恢复出厂设置

Command	AT+RESTORE
Response	OK
Description	模块将恢复为出厂设置

AT+BTEN - 开/关蓝牙

Command	AT+BTEN{=Param}
`Param`	0-关闭蓝牙 1-打开蓝牙

AT+PROFILE - 蓝牙Profile配置

Command	AT+PROFILE{=Param}
`Param`	以10进制位字段表示,每位表示
`BIT[0]`	SPP (Serial Port Profile)
`BIT[1]`	GATT Server (Generic Attribute Profile)
`BIT[2]`	GATT Client (Generic Attribute Profile)
`BIT[3]`	HFP-HF (Hands-Free Profile Handsfree)
`BIT[4]`	HFP-AG (Hands-Free Profile Audio Gateway)
`BIT[5]`	A2DP Sink (Advanced Audio Distribution Profile)
`BIT[6]`	A2DP Source (Advanced Audio Distribution Profile)
`BIT[7]`	AVRCP Controller (Audio/Video remote controller Profile)
`BIT[8]`	AVRCP Target (Audio/Video remote controller Profile)
`BIT[9]`	HID Keyboard (Human Interface Profile)
`BIT[10]`	PBAP Server (Phonebook Access Profile)
Response	+PROFILE=Param
Description	无法同时启用GATT Server and Client, HFP Sink and Source,A2DP Sink and Source,AVRCP Controller and Target BT1035、BT806不支持HFP-HF、 A2DP Sink、AVRCP Controller、HID Keyboard、PBAP

Example:
读取当前Profile
<< AT+PROFILE
>> +PROFILE=341

Example:
使能SPP, GATT Server, HFP Source, A2DP Source profile,其他不使能
<< AT+PROFILE=83
>> OK

AT+AUTOCONN - 设置蓝牙上电重连Profile

Command	AT+AUTOCONN{=Param}
`Param`	(0~15, default:3) (0) Turn Off (1-15) Turn on and reconnect times
Response	+AUTOCONN=Param
Description	重新上电后模组将尝试自动连接最后一次连接的设备

AT+STAT - 读所有Profile状态

Command	AT+STAT
Response	+STAT=Param1, Param2, Param3…
`Param1`	DEVSTAT
`Param2`	SPPSTAT
`Param3`	GATTSTAT
`Param4`	HFPSTAT
`Param5`	A2DPSTAT
`Param6`	AVRCPSTAT

AT+DEVSTAT - 读设备状态

Command	AT+DEVSTAT
Response	+DEVSTAT=Param
`Param`	以10进制位字段表示,每位表示：
`BIT[0]`	0: Power Off; 1: Power On
`BIT[1]`	0: BR/EDR Not Discoverable; 1: BR/EDR Discoverable
`BIT[2]`	0: BLE Not Advertising; 1: BLE Advertising
`BIT[3]`	0: BR/EDR Not Scanning; 1: BR/EDR Scanning
`BIT[4]`	0: BLE Not Scanning; 1: BLE Scanning

Example:常用组合和描述

0	Device power off
1	Device power on
3	Device power on, BR/EDR Discoverable
5	Device power on, BR/EDR Not Discoverable, BLE Advertising
7	Device power on, BR/EDR Discoverable, BLE Advertising
13	Device power on, BR/EDR Not Discoverable, BLE Advertising, Scanning nearby BR/EDR devices

AT+ADDR - 读BR/EDR蓝牙MAC地址

Command	AT+ADDR
Response	+ADDR=Param
`Param`	模块的BR/EDR蓝牙MAC地址(12 Bytes ASCII)

Example:
<< AT+ADDR
>> +ADDR=DC0D30010203
>> OK

AT+LEADDR - 读BLE蓝牙MAC地址

Command	AT+LEADDR
Response	+LEADDR=Param
`Param`	模块的BLE蓝牙MAC地址(12 Bytes ASCII)

AT+NAME - 读/写BR/EDR蓝牙名称

Command	AT+NAME{=Param1{,Param2}}
`Param1`	BR/EDR蓝牙名称(1~31 Bytes ASCII)
`Param2`	使能MAC地址后缀(0/1,default:1) 0: 关闭后缀 1: 开启后缀“-XXXX”(MAC地址后4Byte)
Response	+NAME=Param
Description	如果存在参数则设置蓝牙名称，否则只是读取

Example:
读取BR/EDR蓝牙名称
<< AT+NAME
>> +NAME=FSC-BT1035XXXX
>> OK

Example:
设置BR/EDR蓝牙名称,且关掉后缀
<< AT+NAME=ABC,0
>> OK

Example:
设置BR/EDR蓝牙名称为“ABC”并自动添加地址后缀
<< AT+NAME=ABC,1
>> OK

AT+LENAME - 读/写BLE蓝牙名称

Command	AT+LENAME{=Param1{,Param2}}
`Param1`	BLE蓝牙名称(1~31 Bytes ASCII)
`Param2`	使能MAC地址后缀(0/1,default:0) 0: 关闭后缀 1: 开启后缀“-XXXX”(MAC地址后4Bytes)
Response	+LENAME=Param

AT+PIN - 读/写配对密码

Command	AT+PIN{=Param}
`Param`	配对密码(4~15 Bytes ASCII, default:0000)
Response	+PIN=Param
Description	当+SSP=0时,配对密码有效

Example:
查询模组配对密码
<< AT+PIN
>> +PIN=0000
>> OK

Example:
修改配对密码为 1234
<< AT+PIN=1234
>> OK

AT+COD - 读/写设备类型

Command	AT+COD=Param
`Param`	设备类型(6 bytes ASCII, default:5A020C Handsfree device)
Response	+COD=Param

AT+PAIR - 读/写BR/EDR/BLE可发现模式

Command	AT+PAIR=Param
`Param`	Mode(0-1),default:0 0: Leave BR/EDR/BLE discoverable mode (stop advertising/broadcasting) 1: Enter BR/EDR/BLE discoverable mode (start advertising/broadcasting)
Description	如果未连接设备（BR/EDR或BLE），模块将始终可被发现；如果与远程设备连接，模块将不可被发现，除非收到此命令

AT+SCAN - 搜索附近的设备

Command	AT+SCAN=Param1{,Param2}}
`Param1`	扫描方式（0~2） 0: 停止扫描 1: 扫描附近BR/EDR设备 2: 扫描附近BLE设备(部分程序不支持)
`Param2`	BLE扫描上报类型或BR/EDR扫描时间 BLE扫描 0: BLE上报类型与BR/EDR一致； 1: 上报BLE广播数据 BR/EDR扫描 1 - 255(默认: 5) 单位：秒
Description	Format description reference: +SCAN - 扫描结果

AT+PLIST - 读取/清除配对记录

Command	AT+PLIST{=Param}
`Param`	(0/1~8/12 Bytes MAC address) (0) 清除所有配对记录 (1~8) 清除指定索引的配对记录 (MAC) 清除指定地址的配对记录
Response1	+PLIST=Param1, Param2{,Param3}
`Param1`	(1~8) 配对设备序号
`Param2`	(MAC) 配对设备的MAC地址
`Param3`	(UTF8) 配对设备的蓝牙名称
Response2	+PLIST=E 配对记录查询完成

Example:
读模块的配对记录
<< AT+PLIST
>> +PLIST=1,1C5CF226D773, iPhone12
+PLIST=2, A0BC30075421, Samsung S8
+PLIST=E
>> OK

Example:
清除模块的所有配对记录
<< AT+PLIST=0
>> OK

AT+DSCA - 断开所有连接

Command	AT+DSCA
Description	模块断开与远程设备的所有蓝牙连接

AT+TPMODE - 打开/关闭透传模式

Command	AT+TPMODE{=Param}
`Param`	模式（0~1，默认0） 0: 指令模式 1: 透传模式
Response	+TPMODE=Param
Description	当在SPP/GATT协议下连接并且打开透传模式时，AT指令将会被禁用，通过UART接收的每个字节将被发送到远端

AT+AUXCFG - 配置音频输入模式

Command	AT+AUXCFG{=Param}
`Param`	模式(0-3,默认:0) 0: USB Mode 1: LineIn Mode 2: Spdif Mode 3: I2S Mode
Description	该模式用来配置模组的音频输入模式； BT1035,BT806不支持SPDIF

Example:
将模组设置为Line-in输入模式
<< AT+AUXCFG=1
>> OK

AT+PRINT - 打开/关闭日志打印

Command	AT+PRINT{=Param}
`Param`	0-关闭 1-打开；默认: 打开日志打印

AT+MUTEPIO - Set PA_MUTE pin

Command	AT+MUTEPIO{=Param}
`Param`	PIO(0 ~ 63, default:PIO2)

AT+LINKKEY - 获取链路密钥

Command	AT+LINKKEY=Param
`Param`	目标设备的MAC地址 (12 Bytes ASCII)
Response	+LINKKEY=Param1,Param2
`Param1`	目标设备的MAC地址 (12 Bytes ASCII)
`Param2`	设备的链路密钥
Description	只能获取已配对过设备的链路密钥

AT+RSSI - 获取信号强度

Command	AT+RSSI=Param
`Param`	目标设备的MAC地址 (12 Bytes ASCII)
Response	+RSSI=Param1,Param2
`Param1`	目标设备的MAC地址 (12 Bytes ASCII)
`Param2`	设备信号强度
Description	获取已配对设备的信号强度

AT+MUTEDELAY - 获取/设置静音延迟

Command	AT+MUTEDELAY{=Param}
`Param`	静音延迟(0 ~ 60, 默认:20) 单位:50ms

AT+LINEPIO - 获取/设置模拟输入检测PIO

Command	AT+LINEPIO{=Param}
`Param`	模拟输入检测PIO(0 ~ 63, 默认:PIO44)

AT+LINKCFG - 打开/关闭自动连接

Command	AT+LINKCFG{=Param1{,Param2}}
`Param1`	0:关闭 1:打开
`Param2`	0:扫描所有设备 1:打开过滤功能
Description	设置后模组将自动扫描附近的设备5.12s，并找到信号最强的设备自动连接；如果模组未被连接，模组会一直扫描附近的设备打开过滤功能后， +SCAN - 扫描结果只会上报包含主设备类型里包含音视频特征（即 COD 按位与0x000400的结果不为0）的设备
Note	BT1035使用AT+LINKCFG, BT806使用AT+AUTOLINK

HFP指令

AT+HFPSTAT - 读HFP状态

Command	AT+HFPSTAT
Response	+HFPSTAT=Param
Description	格式说明参考: +HFPSTAT - HFP状态

AT+HFPCONN - 建立HFP连接

Command	AT+HFPCONN{=Param}
`Param`	目标设备MAC地址 (12 Bytes ASCII)
Description	如果参数不存在，模块将重新连接到最后一个HFP配对过的设备

Example:
连接最后一个配对过的设备
<< AT+HFPCONN
>> OK
Example:
连接指定MAC地址的设备
<< AT+HFPCONN=1C5CF226D773
>> OK

AT+HFPDISC - 断开HFP连接

Command	AT+HFPDISC
Description	断开当前与远程设备的HFP连接

AT+HFPRING - 模拟呼入

Command	AT+HFPRING{=Param}
`Param`	电话号码 (1~15 Bytes ASCII)
Description	如果参数存在，则拨打指定号码，否则重拨

Example:
重拨
<< AT+HFPRING
>> OK
Example:
模拟呼入号码075527924639
<< AT+HFPRING=075527924639
>> OK

AT+HFPANSW - 接听来电

Command	AT+HFPANSW
Description	接听来电

AT+HFPCHUP - 拒绝/挂断电话

Command	AT+HFPCHUP
Description	拒接来电或者挂断去电/通话

AT+HFPAUDIO - 建立/结束语音音频

Command	AT+HFPAUDIO{=Param}
`Param`	0-结束与远程hfp接收器设备的语音音频连接 1-建立与远程hfp接收器设备的语音音频连接

A2DP/AVRCP指令

AT+A2DPSTAT - 读A2DP状态

Command	AT+A2DPSTAT
Response	+A2DPSTAT=Param
Description	格式说明参考: +A2DPSTAT - A2DP状态

AT+A2DPCONN - 建立A2DP连接

Command	AT+A2DPCONN{=Param}
`Param`	目标设备MAC地址 (12 Bytes ASCII)
Description	如果参数不存在，模块将重新连接到最后一个A2DP配对过的设备

AT+A2DPDISC - 断开A2DP连接

Command	AT+A2DPDISC
Description	断开当前与远程设备的A2DP连接

AT+A2DPCFG - 读/写AVRCP配置

Command	AT+A2DPCFG{=Param}
`Param`	以10进制位字段表示,default:3,每位表示:
`BIT[0]`	0: 禁用AAC Codec 1: 启用AAC Codec
`BIT[1]`	0: 禁用APTX Codec 1: 启用APTX Codec
`BIT[2]`	0: 禁用APTX-LL Codec 1: 启用APTX-LL Codec
`BIT[3]`	0: 禁用APTX-HD Codec 1: 启用APTX-HD Codec
`BIT[4]`	0: 禁用APTX-AD Codec 1: 启用APTX-AD Codec
`BIT[5]`	0: 禁用LDAC Codec 1: 启用LDAC Codec
Description	BT806不支持

Example:
读当前A2DP配置
<< AT+A2DPCFG
>> +A2DPCFG=0
>> OK
Example:
设置A2DP配置：仅启用AAC编解码
<< AT+A2DPCFG=1
>> OK

AT+A2DPENC - 读A2DP编码器

Command	AT+A2DPENC
Response	+A2DPENC=Param
`Param`	BT1035: 1:SBC 2:APTX 3:APTX-HD 4:APTX-LL 5:APTX-AD BT806: 1:SBC 2:FASTSTREAM 3:APTX 4:APTX-LL

AT+A2DPAUDIO - 建立/断开A2DP音频连接

Command	AT+A2DPAUDIO{=Param}
`Param`	0-断开与远程A2DP接收器设备的A2DP音频连接 1-建立与远程A2DP接收器设备的A2DP音频连接

AT+AVRCPSTAT - 读AVRCP状态

Command	AT+AVRCPSTAT
Response	+AVRCPSTAT=Param
Description	格式说明参考: +AVRCPSTAT - AVRCP状态

AT+AVRCPCONN - 建立AVRCP连接

Command	AT+AVRCPCONN{=Param}
`Param`	目标设备MAC地址 (12 Bytes ASCII)
Description	如果参数不存在，模块将重新连接到最后一个AVRCP配对过的设备

AT+AVRCPDISC - 断开AVRCP连接

Command	AT+AVRCPDISC
Description	断开当前与远程设备的AVRCP连接

SPP指令

AT+SPPSTAT - 读SPP状态

Command	AT+SPPSTAT
Response	+SPPATAT=Param
Description	格式说明参考: +SPPSTAT - SPP状态

AT+SPPCONN - 建立SPP连接

Command	AT+SPPCONN{=Param}
`Param`	目标设备MAC地址 (12 Bytes ASCII)

AT+SPPDISC - 断开SPP连接

Command	AT+SPPDISC
Description	断开当前与远端设备的SPP连接

AT+SPPSEND - 通过SPP发数据

Command	AT+SPPSEND=Param1,Param2
`Param1`	Payload length (1~492)
`Param2`	Payload (1~492 Bytes UTF8)
Description	如果透传模式开启，该指令将会被禁用
Note	BT1035最大有效载荷长度仅支持236

Example:
通过SPP给远程设备发送数据 “1234567890”
<< AT+SPPSEND=10,1234567890
>> OK

GATT指令

AT+GATTSTAT - 读GATT指令

Command	AT+GATTSTAT
Response	+GATTATAT=Param
Description	格式说明参考: +GATTSTAT - GATT状态

AT+GATTDISC - 断开GATT连接

Command	AT+GATTDISC
Description	断开当前与远程设备的GATT连接

AT+GATTCONN - 建立GATT中心连接

Command	AT+GATTCONN=Param1{,Param2,Param3,Param4}
`Param1`	目标设备MAC地址+MAC地址类型 (13 Bytes ASCII)
`Param2`	Service-UUID, Support 16 Bit and 128 Bit(4 Bytes/32 Bytes ASCII)
`Param3`	Write-UUID, Support 16 Bit and 128 Bit(4 Bytes/32 Bytes ASCII)
`Param4`	Notify-UUID, Support 16 Bit and 128 Bit(4 Bytes/32 Bytes ASCII)
Description	GATT客户端启用有效

Example:
连接指定的服务端设备
<< AT+GATTCONN=123456ABCDEF0,FFF0,FFF2,FFF1
>> OK

AT+GATTSEND - 通过GATT发数据

Command	AT+GATTSEND=Param1,Param2
`Param1`	Payload length (1~492)
`Param2`	Payload (1~492 Bytes UTF8)
Description	如果透传模式开启，该指令将会被禁用
Note	BT1035最大有效载荷长度仅支持236

Example:
通过GATT给远程设备发送数据 “1234567890”
<< AT+GATTSEND=10,1234567890
>> OK

Events表

通用指示

+SCAN - 扫描结果

Format	+SCAN =Param1,Param2,Param3, Param4,Param5,Param6,Param7
`Param1`	索引
`Param2`	设备地址类型 (0~2) (0) LE public address (1) LE random address (2) BR/EDR address
`Param3`	MAC地址 (12 Bytes ASCII)
`Param4`	RSSI (-127 ~ -1)
`Param5`	Param6的大小（如果存在）
`Param6`	BR/EDR设备名称或者LE设备广播数据
`Param7`	设备类别

Example:
扫描附近BR/EDR设备
<< AT+SCAN=1
>> OK
>> +SCAN=1,2,DC0D30000057,-42,11,FSC-BT1026C,240408
>> +SCAN=2,2,DC0D30000012,-70,16,FSC-BT1006A-0012,240404
>> +SCAN=3,2,DC0D300011B9,-70,14,222qqqqqqqqqqq,240404
>> +SCAN=E

+PAIRED - 配对结果

Format	+PAIRED=Param
`Param`	当前配对设备的MAC地址(12 Bytes ASCII)

HFP指示

+HFPSTAT - HFP状态

Format	+HFPSTAT=Param
`Param1`	(0) Unsupported (1) Standby (2) Connecting (3) Connected (4) Outgoing call (5) Incoming call (6) Active call

+HFPDEV - HFP远端设备信息

Format	+HFPDEV=Param1{,Param2}
`Param1`	(12 Bytes ASCII), 当前HFP连接远端设备的MAC地址
`Param2`	(UTF8), 当前HFP连接远端设备的名称

Example:
HFP连接成功
>> +HFPDEV=1C5CF226D774, iPhone

+HFPAUDIO - HFP语音音频状态

Format	+HFPAUDIO=Param
`Param`	(0) HFP语音音频断开连接,音频输入/输出切换到远端设备 (1) HFP语音建立连接,音频输入/输出切换到模块

+HFPBATT - HFP远端设备电池电量

Format	+HFPBATT=Param
`Param`	(0~9) 远程设备的电池电量

+HFPSR - HFP采样率

Format	+HFPSR=Param
`Param`	采样率: 8000/16000/32000

A2DP/AVRCP指示

+A2DPSTAT - A2DP状态

Format	+A2DPSTAT=Param
`Param`	(0) Unsupported (1) Standby (2) Connecting (3) Connected (4) Streaming (5) Paused

+A2DPDEV - A2DP远端设备信息

Format	+A2DPDEV=Param1{,Param2}
`Param1`	(12 Bytes ASCII), 当前A2DP连接远端设备的MAC地址
`Param2`	(UTF8), 当前A2DP连接远端设备的名称

+AVRCPSTAT - AVRCP状态

Format	+AVRCPSTAT=Param
`Param`	(0) Unsupported (1) Standby (2) Connecting (3) Connected

+PLAYSTAT - 媒体播放器播放状态

Format	+PLAYSTAT=Param
`Param`	(0) Stopped (1) Playing (2) Paused (3) Fast Forwarding (4) Fast Rewinding

+CTPLAY - 歌曲播放

Format	+CTPLAY
Description	收到播放指令

+CTPAUSE - 歌曲暂停

Format	+CTPAUSE
Description	收到暂停指令

+CTSTOP - 歌曲停止

Format	+CTSTOP
Description	收到停止播放指令

+CTFWD - 下一曲

Format	+CTSTOP
Description	收到播放下一曲指令

+CTBACK - 上一曲

Format	+CTBACK
Description	收到播放上一曲指令

SPP指示

+SPPSTAT - SPP状态

Format	+SPPSTAT=Param
`Param`	(0) Unsupported (1) Standby (2) Connecting (3) Connected

+SPPDATA - SPP接收数据

Format	+SPPDATA=Param1,Param2
`Param1`	Payload length
`Param2`	Payload

Example:
通过SPP从远端设备接收到数据“ 1234567890”
<< +SPPDATA=10,1234567890

GATT指示

+GATTSTAT - GATT状态

Format	+GATTSTAT=Param
`Param`	(0) Unsupported (1) Standby (2) Connecting (3) Connected

+GATTDATA - GATT接收数据

Format	+SPPDATA=Param1,Param2
`Param1`	Payload length
`Param2`	Payload

Example:
通过GATT从远端设备接收到数据“ 1234567890”
<< +GATTDATA=10,1234567890

应用场景

Profile初始化及修改参数

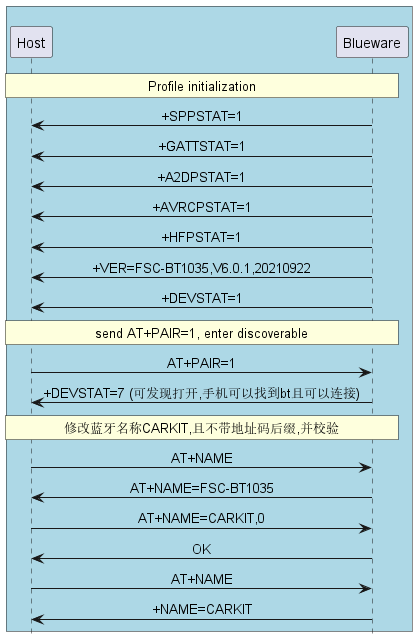

下图展示了Profile初始化以及修改名称

MCU 修改设备名CARKIT参考代码

void change_name(void)
{
    uart_send("AT+NAME\r\n");
    if(uart_read("+NAME",name_buf))
    {
        if(memcmp(name_buf,"CARKIT",6))
        {
            uart_send("AT+NAME=CARKIT,0\r\n");      //defalut disable MAC address suffix
            uart_send("AT+NAME\r\n"); // read bt name
            if(uart_read("+NAME",name_buf))
            {
                if(memcmp(name_buf,"CARKIT",6))
                {
                    //change name fail
                }
                else
                {
                    //change name success
                }
            }
        }
    }
}

Note

修改任何参数建议先查询再修改最后校验:

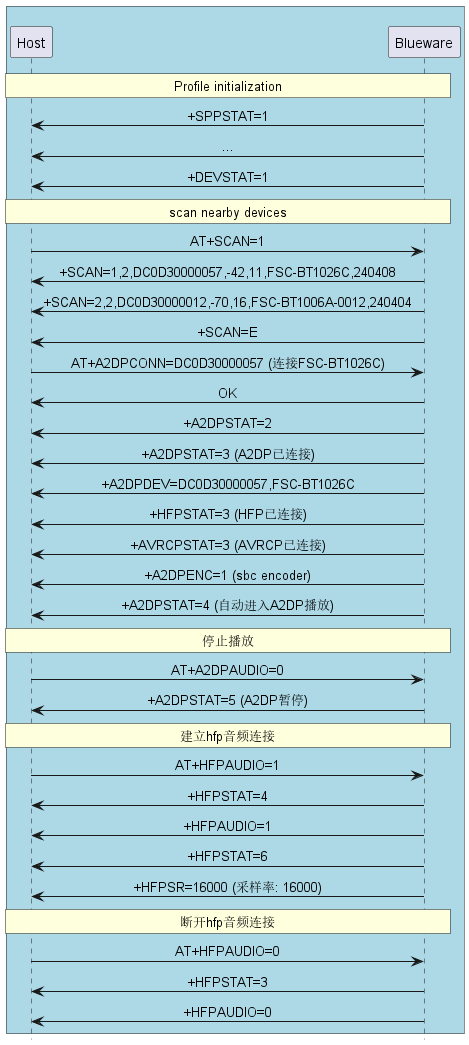

发射模式连接

附录

下载PDF版本

下载PDF版本

1	I2S Master; Sample rate=48000Hz; Resolution=16bits; Bit clock= 48000162ch=1.536Mhz
3	I2S Slave; Sample rate=48000Hz; Resolution=16bits; Bit clock= 48000162ch=1.536Mhz
65	I2S Master; Sample rate=48000Hz; Resolution=32bits; Bit clock= 48000322ch=3.072Mhz
67	I2S Slave; Sample rate=48000Hz; Resolution=32bits; Bit clock= 48000322ch=3.072Mhz
