FSC-BT1036 AT Command Set

Introduction

Description

This design guide is suitable for engineers to develop FSC-BT1036 series Bluetooth modules, also suitable for BT955, BT936B, BT909C, BT906 series modules

Module Default Settings

Name	FSC-BT1036-XXXX
LE-Name	FSC-BT1036-LE-XXXX
Pin Code	0000
Secure Simple Pairing Mode	ON
UART Baudrate	115200/8/N/1

Command Description

Terms

Throughout this specification:
Content between { } is optional
Content behind << represents a COMMAND from Host
Content behind >> represents a RESPONSE/EVENT to Host

Command Format

AT+Command{=Param1{,Param2{,Param3…}}}<CR><LF>

All commands start with “AT”, end with <CR><LF>
<CR> means “carriage return”, corresponds to hex value 0x0D
<LF> means “line feed”, corresponds to hex value 0x0A
If Command has Parameter, Parameter follows behind ‘=’
If Command has multiple Parameters, Parameter must be separated by ‘,’
If Command has Response, Response starts with <CR><LF>, ends with <CR><LF>
Module will always report command’s execution result by using “OK” for success or “ERR<code>” for failure

Error Code	Meaning
001	Failed
002	Invalid parameter
003	Invalid state
004	Command mismatch
005	Busy
006	Command not supported
007	Profile not turned on
008	No memory
Others	Reserved for future use

Example:Read module’s BR/EDR local name
<< AT+VER
>> +VER=FSC-BT1036-XXXX
>> OK

Example:Pick up an incoming call when no call incoming actually
<< AT+HFPANSW
>> ERR003

Event Format

<CR><LF>+Indication{=Param1{,Param2{,Param3…}}}<CR><LF>

All Events start with <CR><LF>, end with <CR><LF>
If Event has Parameter, Parameter follow behind ‘=’
If Event has multiple Parameters, Parameter must be separated by ‘,’
Use command AT+SEP to replace default separator for conflict prevention

Example: Received “1234567890” from mobile phone via SPP profile
>> +SPPDATA=10,1234567890

Example: Dial number “10086” using a mobile phone when HFP connected
>> +HFPSTAT=4
>> +HFPAUDIO=1
>> +HFPSTAT=6,10086

Commands Table

General Commands

AT+HELP - Firmware Function/Command Summary

Command	AT+HELP
Response	<FIRMWARE FUNCTION: appropriate working scenario > <OTA PATH: latest suitable firmware path on server for upgrade On-The-Air> <ENABLED PROFILES: LINKS: ON/OFF> … … <COMMAND SUMMARY: DESCRIPTION: PROFILE CATEGORY>
Description	Using help command to get the basic summary information

AT+SEP - Get/Set Event/Response Separator

Command	AT+SEP{=Param}
`Param`	hex value 0x01~0xFF, default: ‘,’ , specially, using ‘0’ instead of ‘xFF’ for convenience
Response	+SEP=Param
Description	The parameter of events/responses may contain value same to the default separator, using this command to replace default separator for conflict prevention (replace the default separator ‘,’ to hex value ‘xFF’ typically)

Example:Read module’s paired record (device name contains ‘,’ already)
<< AT+PLIST
>> +PLIST=1,32808,1C5CF226D773, Tony, iPhone12
>> +PLIST=2,40, A0BC30075421, Samsung S8
>> +PLIST=E
>> OK
Example: Replace separator to ‘0xFF’
<< AT+SEP=0
>> OK
Example: Read module’s paired record again
<< AT+PLIST
>> +PLIST=1<FF>32808<FF>1C5CF226D773<FF>Tony, iPhone12
>> +PLIST=2<FF>40<FF> A0BC30075421<FF>Samsung S8
>> +PLIST=E
>> OK

AT+VER - Get Firmware Version

Command	AT+VER
Response	+VER=Param1,Param2,Param3
`Param1`	Module type
`Param2`	Firmware version
`Param3`	Data of production
Note	The date of production in response will not be changed after firmware upgrade

Example:
<< AT+VER
>> +VER=BT1036,V2.6.1,20220922
>> OK

AT+BAUD - Get/Set Uart Baudrate

Command	AT+BAUD{=Param}
`Param`	2400/4800/9600/19200/38400/57600/115200(default)/128000/ 230400/256000/460800/512000/921600/1382400
Response	+BAUD=Param1,Param2,Param3
`Param`	All baudrates supported by current module
Description	Module will change baudrate to target value immediately or after reboot depending on firmware

Example:Query baudrates supported by current module then change baudrate from 115200 bps to 921600 bps
<< AT+BAUD
>> +BAUD=2400,4800,9600,19200,38400,57600,115200,128000,230400,256000,
460800,512000,921600,1382400
>> OK

<< AT+BAUD=921600
>> OK
Module switch baudrate to 921600 immediately, host change baudrate as well, query module’s name at new baudrate
<< AT+NAME
>> +NAME=FSC-BT91036-1F26
>> OK

AT+I2CREG - Read/Write I2C Register

Command	AT+I2CREG=Param1, Param2, Param3 {,Param4}
`Param1`	i2c bus address, 2 byes hex string
`Param2`	i2c register address, 2/4 byes hex string
`Param3`	bytes to read/write (1~64)
`Param4`	value to write
Response	+I2CREG=Param
`Param`	i2c read return value
Description	Command can be used only if module’s build-in codec is disabled, the i2c bus is master by default.

Example:Read external i2c slave device, address:0x34, register 0003, bytes:2; then modify value to 0xA13B
<< AT+I2CREG= 34,0003,2
>> +I2CREG=805F
>> OK
<< AT+I2CREG= 34,0003,2,A13B
>> OK

AT+I2SCFG - Get/Set I2S Settings

Command	AT+I2SCFG{=Param}
`Param`	A base-10 representation of a bit field, default:0, for each bit
`BIT[0]`	0:disable; 1:enable
`BIT[1]`	0:master; 1:slave
`BIT[2]`	0:FS=48000Hz;1:FS=44100Hz
`BIT[3-4]`	00: I2S standard format 10: PCM short frame format
`BIT[5-6]`	00: bit depth=16bits 10: bit depth=32bits (only 16bits of MSB effective) 11: bit depth=32bits (only used for PCM mode)
Response	+I2SCFG=Param
Description	The BT90X modules support serval external codecs by default, e.g. ES8388, TLV320AIC3204 and etc. BT1036/BT955 built-in codec If +I2SCFG=0, module will auto detect on of them on booting
Note	Use command AT+HFPSR for setting HFP voice call sample rate

Example:usual configuration and description

0	Analog mode, module will probe internal/external codecs via I2C on booting, and will report +CODEC= id to indicate user which codec has been recognized
1	I2S Master; Sample rate=48000Hz; Resolution=16bits; Bit clock= 48000162ch=1.536Mhz
3	I2S Slave; Sample rate=48000Hz; Resolution=16bits; Bit clock= 48000162ch=1.536Mhz
65	I2S Master; Sample rate=48000Hz; Resolution=32bits; Bit clock= 48000322ch=3.072Mhz
67	I2S Slave; Sample rate=48000Hz; Resolution=32bits; Bit clock= 48000322ch=3.072Mhz
113	PCM Master; Sample rate=48000Hz; Resolution=16bits; Bit clock= 48000162ch=1.536Mhz

AT+MICGAIN - Get/Set Analog Input Gain

Command	AT+MICGAIN{=Param}
`Param`	Gain (0~15, default:8)
Description	Adjust codec analog input gain, only work for module with codec build in (unavailable for I2S input)

AT+SPKVOL - Get/Set Analog Output Volume

Command	AT+SPKVOL{=Param1,Param2}
`Param1`	Volume for A2DP Streaming (0~15, default:8)
`Param2`	Volume for HFP Call (0~15, default:8)
Description	Adjust codec analog output gain, only work for module with codec build in (unavailable for I2S output)

AT+REBOOT - Soft Reboot

Command	AT+REBOOT
Response	OK
Description	Module release all Bluetooth connections with remote device then reboot

Example:
<< AT+REBOOT
>> OK

AT+RESTORE - Restore Factory Settings

Command	AT+RESTORE
Response	OK
Description	Module restore all factory settings then reboot

Example:
<< AT+RESTORE
>> OK

AT+BTEN - Bluetooth On/Off

Command	AT+BTEN{=Param}
`Param`	0-Power off 1-Power on

AT+PROFILE - Bluetooth Profile Selection

Command	AT+PROFILE{=Param}
`Param`	A base-10 representation of a bit field, for each bit:
`BIT[0]`	SPP (Serial Port Profile)
`BIT[1]`	GATT Server (Generic Attribute Profile)
`BIT[2]`	GATT Client (Generic Attribute Profile)
`BIT[3]`	HFP-HF (Hands-Free Profile Handsfree)
`BIT[4]`	HFP-AG (Hands-Free Profile Audio Gateway)
`BIT[5]`	A2DP Sink (Advanced Audio Distribution Profile)
`BIT[6]`	A2DP Source (Advanced Audio Distribution Profile)
`BIT[7]`	AVRCP Controller (Audio/Video remote controller Profile)
`BIT[8]`	AVRCP Target (Audio/Video remote controller Profile)
`BIT[9]`	HID Keyboard (Human Interface Profile)
`BIT[10]`	PBAP Server (Phonebook Access Profile)
`BIT[15]`	iAP2 (For iOS devices)
Response	+PROFILE=Param
Description	GATT Server and Client, HFP Sink and Source, A2DP Sink and Source, AVRCP Controller and Target cannot be enabled simultaneously because of mutual exclusion.

Example:Read current profile selection
<< AT+PROFILE
>> +PROFILE=1195
Example:Enable SPP, GATT Server, HFP Source, A2DP Source profile, disable the others
<< AT+PROFILE=83
>> OK
Example:Enable SPP, A2DP Sink, disable the others
<< AT+PROFILE=33
>> OK

AT+AUTOCONN - Power On Auto Reconnect Profile Selection

Command	AT+AUTOCONN{=Param}
`Param`	A base-10 representation of a bit field, format same with AT+PROFILE
Response	+AUTOCONN=Param
Description	Module will attempt to establish connection to devices in paired list after power on.

AT+STAT - Get All Profile State

Command	AT+STAT
Response	+STAT=Param1, Param2, Param3…
Description	Query all current enabled profile’s state

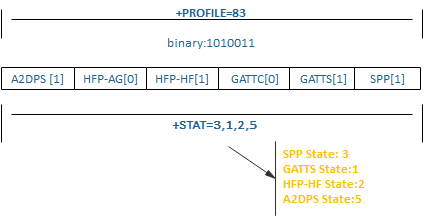

Example: Read current profile selection
<< AT+PROFILE
>> +PROFILE=83
Example:Read profile state
<< AT+STAT
+STAT=3,1,2,5
>> OK

AT+DEVSTAT - Read Device State

Command	AT+DEVSTAT
Response	+DEVSTAT=Param
`Param`	A base-10 representation of a bit field, for each bit:
`BIT[0]`	0: Power Off; 1: Power On
`BIT[1]`	0: BR/EDR Not Discoverable; 1: BR/EDR Discoverable
`BIT[2]`	0: BLE Not Advertising; 1: BLE Advertising
`BIT[3]`	0: BR/EDR Not Scanning; 1: BR/EDR Scanning
`BIT[4]`	0: BLE Not Scanning; 1: BLE Scanning

Example:usual combination and description

0	Device power off
1	Device power on
3	Device power on, BR/EDR Discoverable
5	Device power on, BR/EDR Not Discoverable, BLE Advertising
7	Device power on, BR/EDR Discoverable, BLE Advertising
13	Device power on, BR/EDR Not Discoverable, BLE Advertising, Scanning nearby BR/EDR devices

AT+ADDR - Get BR/EDR MAC Address

Command	AT+ADDR
Response	+ADDR=Param
`Param`	Module’s BR/EDR MAC address (12 Bytes ASCII)

Example:
<< AT+ADDR
>> +ADDR=DC0D30010203
>> OK

AT+LEADDR - Get BLE MAC Address

Command	AT+LEADDR
Response	+LEADDR=Param
`Param`	Module’s LE MAC address (12 Bytes ASCII)

AT+NAME - Get/Set BR/EDR Local Name

Command	AT+NAME{=Param1{,Param2}}
`Param1`	BR/EDR local name(1~31 Bytes ASCII)
`Param2`	MAC address suffix(0/1,default:1) 0: Disable suffix 1: Enable suffix “-XXXX” (lower 4 bytes of MAC address) after local name
Response	+NAME=Param
Description	Write local name if parameter exist, otherwise read current local name

Example:Read current BR/EDR local name
<< AT+NAME
>> +NAME=FSC-BT1036-XXXX
>> OK

Example:Change module’s BR/EDR local name to “ABC”,and disable suffix
<< AT+NAME=ABC,0
>> OK

Example:Change module’s BR/EDR local name to “ABC” and enable suffix
<< AT+NAME=ABC,1
>> OK

AT+LENAME - Get/Set BLE Local Name

Command	AT+LENAME{=Param1{,Param2}}
`Param1`	BLE local name(1~25 Bytes ASCII)
`Param2`	MAC address suffix(0/1,default:1) 0-Disable suffix 1-Enable suffix “-XXXX” (lower 4 bytes of MAC address) after local name
Response	+LENAME=Param

AT+SSP - Get/Set BR/EDR Pairing Mode

Command	AT+SSP{=Param}
`Param`	Pairing mode (0~3, default:2) (0) Legacy pairing, use pin code for pairing (1) Secure simple pairing, auto pairing (2) Secure simple pairing, display yes/no in pairing (3) Secure simple pairing, passkey compare, user need to accept/reject pair request with command AT+CFM
Response	+SSP=Param
Note	need reboot

AT+PIN - Get/Set BR/EDR Pin Code

Command	AT+PIN{=Param}
`Param`	Pin code(4~15 Bytes ASCII, default:0000)
Response	+PIN=Param
Description	Pin code only work in legacy pairing mode, see AT+SSP

Example:Read module’s pin code
<< AT+PIN
>> +PIN=0000
>> OK

Example: Change module’s pin code to “1234”
<< AT+PIN=1234
>> OK

AT+CFM - Accept/Reject Remote Pairing Request

Command	AT+CFM=Param1, Param2
`Param1`	12 Bytes MAC address of remote device
`Param2`	0-Reject remote pairing request 1-Accept remote pairing request
Description	Only used for pairing request in pairing mode 3, see AT+SSP

AT+COD: Get/Set Device Class

Command	AT+COD=Param
`Param`	Class of device(6 bytes ASCII, default:240408 Handsfree device)
Response	+COD=Param

Related configuration reference: COD.

AT+PAIR: Get/Set BR/EDR/BLE Visibility

Command	AT+PAIR=Param
`Param`	Mode(0-3) 0: Leave BR/EDR/BLE discoverable mode (stop advertising/broadcasting) 1: Enter BR/EDR discoverable mode (start broadcasting) 2: Enter BLE discoverable mode (start advertising) 3: Enter BR/EDR/BLE discoverable mode (start advertising/broadcasting)
Description	Module will always be discoverable if no device connected (BR/EDR or BLE), and be undiscoverable if connected with remote device, unless received this command

AT+PAGE: Get/Set BR/EDR Connectability

Command	AT+PAGE=Param
`Param`	Mode(0-1) 0: Leave BR/EDR connectable mode (stop paging) 1: Enter BR/EDR connectable mode (start paging)
Description	Module will always be connectable mode if no device connected, and be unconnectable if connected with remote device, unless received this command

AT+SCAN - Scan Nearby Devices

Command	AT+SCAN=Param1{,Param2{,Param3}}
`Param1`	scan type(0~3) 0: Stop scan 1: Scan nearby BR/EDR devices 2: Scan nearby BLE devices 3: Scan nearby BR/EDR/BLE devices
`Param2`	(1~48)Scan period. unit:1.28s, default:12.8s
`Param3`	(1~25 Bytes ASCII)Name filter. Filter scan results with name if set
Description	Format description reference: +SCAN - Scan Result

AT+RSSI: Get BR/EDR Signal Strength

Command	AT+RSSI=Param
`Param`	12 Bytes MAC address of current connected device
Response	+PIN=Param
`Param`	RSSI value (-127 ~ 0)

AT+PLIST - Get/Delete Paired List

Command	AT+PLIST{=Param}
`Param`	(0/1~8/12 Bytes MAC address) (0) Clear all paired record (1~8) Clear specific paired record with index (MAC) Clear specific paired record with MAC address
Response1	+PLIST=Param1, Param2, Param3{,Param4}
`Param1`	(1~8) Paired device’s index
`Param2`	A base-10 representation of a bit field, support profiles of device, see AT+PROFILE
`Param3`	(MAC) Paired device’s MAC address
`Param4`	(UTF8) Paired device’s name
Response2	+PLIST=E End of the paired record

Example:Read module’s paired record
<< AT+PLIST
>> +PLIST=1,32808,1C5CF226D773, iPhone12
+PLIST=2,40, A0BC30075421, Samsung S8
+PLIST=E
>> OK

Example:Clear module’s paired record
<< AT+PLIST=0
>> OK

AT+DSCA - Release All Connections

Command	AT+DSCA
Description	Module release all Bluetooth connections with remote device

AT+AUDROUTE - Audio Route Manager

Command	AT+AUDROUTE{=Param}
`Param`	Note: HF1 & HF2 means peer Bluetooth headphones 0 Stop audio routing 1 Route music (a2dp streaming) from Module to HP1/HP2 simultaneously 2 Route voice call (hfp sco) between Module and HP1 3 Route voice call (hfp sco) between Module and HP2 4 Route voice call (hfp sco) between HP1 and HP2 (intercom mode) 5 Route voice call (hfp sco) from Module to HP1/HP2 simultaneously 6 Route music (a2dp streaming) from Module to HP1 only 7 Route music (a2dp streaming) from Module to HP2 only
Description	Some route mode require specify firmware version.

AT+TPMODE - Turn On/Off Throughput Mode

Command	AT+TPMODE{=Param}
`Param`	Throughput mode(0~1，default:0） 0: Turn Off 1: Turn On
Response	+TPMODE=Param
Description	When SPP/GATT profile connected and throughput mode is on, the AT command will be de-active, every byte received via physical UART will be sent to air, vice visa

AT+LINKCFG - Auto search link configuration

Command	AT+LINKCFG{=Param}
`Param`	Format reference AT+PROFILE command
Description	If this command module is configured, it will automatically search for links according to the configured profile.

Example:Configure A2DP to automatically search for links
<< AT+PROFILE=64
>> OK

AT+TXPOWER - tx power configuration

Command	AT+TXPOWER{=Param}
`Param`	(value:0-15, default:15)

Value	Power(dBm)
0	-36.1
1	-8.2
2	-2.9
3	0.5
4	2.3
5	4.1
6	5.4
7	6.5
8	7.2
9	8.0
10	8.6
11	9.1
12	9.4
13	9.8
14	10.0
15	10.2

HFP Commands

AT+HFPSTAT - Read HFP State

Command	AT+HFPSTAT
Response	+HFPSTAT=Param1{,Param2{,Param3}}
Description	Format description reference: +HFPSTAT - HFP State

AT+HFPSR - Get/Set HFP Sample Rate

Command	AT+HFPSR{=Param}
`Param`	Sample rate (Hz) for HFP voice call, available value: 0/8000/16000/48000
Response	+HFPSR=Param
Description	Resample HFP voice call to specify rate in I2S mode, the parameter will override settings in AT+I2SCFG for voice call

AT+HFPCFG - Get/Set HFP Configuration

Command	AT+HFPCFG{=Param}
`Param`	A base-10 representation of a bit field, default:2, for each bit:
`BIT[0]`	When the HFP is abnormally disconnected,Reconnect to last disconnected device
`BIT[1]`	0-disable echo cancellation, 1-enable echo cancellation
`BIT[2]`	0-HFP 3-way-calling function disable, 1-HFP 3-way-calling function enable

AT+HFPCONN - Establish HFP Connection

Command	AT+HFPCONN{=Param}
`Param`	MAC address of target device (12 Bytes ASCII)
Description	Reconnect to last HFP device if parameter not exist

Example:Connect to last HFP device
<< AT+HFPCONN
>> OK
Example:Connect to specific HFP device with MAC address
<< AT+HFPCONN=1C5CF226D773
>> OK

AT+HFPDISC - Release HFP Connection

Command	AT+HFPDISC
Description	Release current HFP connection with remote device

AT+HFPDIAL - Dial/Redial Phone Number

Command	AT+HFPDIAL{=Param}
`Param`	Phone number (1~25 Bytes ASCII)
Description	Dial specific number if parameter exist, otherwise redial

Example:Redial
<< AT+HFPDIAL
>> OK
Example:Dial number “075527924639”
<< AT+HFPDIAL=075527924639
>> OK

AT+HFPDTMF - Send DTMF code

Command	AT+HFPDTMF{=Param}
`Param`	*DTMF (0~9/#/)**

Example:Send DTMF code “#” while talking
<< AT+HFPDTMF=#
>> OK

AT+HFPANSW - Pick Up Incoming Call

Command	AT+HFPANSW
Description	Pick up an incoming call

AT+HFPCHUP - Reject/Hung up Call

Command	AT+HFPCHUP
Description	Reject incoming call or hung up outgoing/active call

AT+HFPMCAL - Three way calling Control

Command	AT+HFPMCAL=Param
`Param`	0: Release held call or reject waiting call 1: Release active call and accept another call 2: Hold active call and accept another call

AT+HFPADTS - Transfer Voice Audio Between Local and Remote Device

Command	AT+HFPADTS=Param
`Param`	1: Transfer voice audio from module to remote device 2: Transfer voice audio from remote device to module
Description	Transfer voice audio between module and remote device by default if no parameter set

AT+HFPVR - Start/Stop Voice Recognition of Remote Device

Command	AT+HFPVR=Param
`Param`	0-Stop 1-Start
Description	Start/Stop Voice Recognition of Remote Device (such as Siri for iOS devices)

AT+HFPINFO - Read HFP information

Command	AT+HFPINFO
Description	Return the current HFP status, signal strength, battery, device name, etc.

AT+MICMUTE - Mute Mic

Command	AT+MICMUTE=Param
`Param`	0-unmute 1-mute
Description	mute mic when call active

A2DP/AVRCP Commands

AT+A2DPSTAT - Read A2DP State

Command	AT+A2DPSTAT
Response	+A2DPSTAT=Param
Description	Format description reference: +A2DPSTAT - A2DP State

AT+A2DPCONN - Establish A2DP Connection

Command	AT+A2DPCONN{=Param}
`Param`	MAC address of target device (12 Bytes ASCII)
Description	Reconnect to last A2DP device if parameter not exist

AT+A2DPDISC - Release A2DP Connection

Command	AT+A2DPDISC
Description	Release current A2DP connection with remote device

AT+A2DPINFO - Read A2DP information

Command	AT+A2DPINFO
Description	Return the current A2DP status, remote device name , etc.

AT+AVRCPSTAT - Read AVRCP State

Command	AT+AVRCPSTAT
Response	+AVRCPSTAT=Param
Description	Format description reference: +AVRCPSTAT - AVRCP State

AT+AVRCPCFG - Get/Set AVRCP Configuration

Command	AT+AVRCPCFG{=Param}
`Param`	A base-10 representation of a bit field, default:3, for each bit:
`BIT[0]`	Auto get track ID3 information (title, artist, album) on track changed.default:1
`BIT[1-3]`	Auto get track play progress if value > 0. default:1 second
`BIT[4]`	Browsing function enable/disable
`BIT[5]`	Auto pull media cover art image to specify folder

Example: Read AVRCP configuration
<< AT+AVRCPCFG
>> +AVRCPCFG=1
OK
Example: Get track play progress every 5 second
<< AT+AVRCPCFG=9
>> OK

AT+PLAYPAUSE - Track Play/Pause

Command	AT+PLAYPAUSE
Description	Send play or pause command to remote media player according to current play status

AT+PLAY - Track Play

Command	AT+PLAY
Description	Send play command to remote media player

AT+PAUSE - Track Pause

Command	AT+PAUSE
Description	Send pause command to remote media player

AT+STOP - Track Stop

Command	AT+STOP
Description	Send stop command to remote media player

AT+FORWARD - Track Forward

Command	AT+FORWARD
Description	Send forward command to remote media player

AT+BACKWARD - Track Backward

Command	AT+BACKWARD
Description	Send backward command to remote media player

AT+REPEAT - Set Media Player Repeat Mode

Command	AT+REPEAT{=Param}
`Param`	Repeat mode (0/1) 0-off 1-on
Response	+PLAYMODE=Param1,Param2
`Param`	Format description reference: +PLAYMODE - Media Player Repeat/ Shuffle Mode

AT+SHUFFLE - Set Media Player Shuffle Mode

Command	AT+SHUFFLE{=Param}
`Param`	Shuffle mode (0/1) 0-off 1-on
Response	+PLAYMODE=Param1,Param2
`Param`	Format description reference: +PLAYMODE - Media Player Repeat/ Shuffle Mode

AT+GETMP - List Media Players of Remote Device

Command	AT+GETMP
Response	+BROWDATA=Param1,Param2,Param3,Param4
`Param`	Format description reference: +BROWDATA - Media Player Filesystem Browsing Data
Description	List media players of remote device, only player with browsable flag set support browsing. For some phones (e.g. iOS devices), user may need to launch the player on phone side at the first time.

AT+SETMP - Select Media Player

Command	AT+SETMP=Param
`Param`	Media Player index
Response	+BROWDATA=Param1,Param2
`Param`	Format description reference: +BROWDATA - Media Player Filesystem Browsing Data
Description	Select the media player to browse, player’s browsable flag must be set, we will enter the root directory after player selected.

AT+GETFD - List Sub Folders/Tracks of Selected Folder

Command	AT+GETFD=Param1,Param2
`Param1`	Start position, (1~65535)
`Param2`	End position, (1~65535), Param2 >= Param1
Description	List sub folders or media items in current folder.

AT+SETFD - Select and Enter Folder

Command	AT+SETFD=Param
`Param`	（0):Enter up level folder (other): Enter selected folder
Description	Select and enter the folder to browse.

AT+GETNP - List Tracks in Now Playing List

Command	AT+GETNP=Param1,Param2
`Param1`	(1~65535), Start position
`Param2`	(1~65535), End position, Param2 >= Param1
Response	+BROWDATA=M,Param1,Param2,Param3
`Param`	Format description reference: +BROWDATA - Media Player Filesystem Browsing Data

AT+ADDMP - Add Track to Media Player

Command	AT+ADDMP=Param
`Param`	Track ID
Description	Add selected track to media player and start to play.

PBAP Commands

AT+PBSTAT - Read PBAP state

Command	AT+PBSTAT
Response	+PBATAT=Param
Description	Format description reference: +PBSTAT - PBAP State

AT+PBCONN - Establish PBAP Connection

Command	AT+PBCONN{=Param}
`Param`	MAC address of target device (12 Bytes ASCII)
Description	Module will use current HFP device’ MAC address if parameter not exist For some firmware release, module will establish PBAP connection automatically on received command AT+PBDOWN

AT+PBDISC - Release PBAP Connection

Command	AT+PBDISC
Description	Release current PBAP connection with remote device

AT+PBDOWN - Download Phonebook

Command	Param1{, Param2{, Param3{, Param4}}}
`Param1`	Phonebook type(0-5) (0) Phonebook (SIM Storage) (1) Phonebook (Phone Storage) (2) Received call log (3) Dialed call log (4) Missed call log (5) All call log
`Param2`	Max items (1~65535, default:3000 for phonebook; 50 for call log)
`Param3`	Phonebook format (defaut:0) (0) Family Name, Middle Name, Given Name (1) Given Name, Middle Name, Family Name (2) Raw vCard 2.1
`Param4`	Contact photo required (0/1)
Description	For some phones (e.g. iPhone), the contact download permission must be turned on in phone’s Bluetooth settting

AT+PBABORT - Abort Downloading

Command	AT+PBABORT
Description	Abort downloading

SPP Commands

AT+SPPSTAT - Read SPP State

Command	AT+SPPSTAT
Response	+SPPATAT=Param
Description	Format description reference: +SPPSTAT - SPP State

AT+SPPCONN - Establish SPP Connection

Command	AT+SPPCONN{=Param}
`Param`	MAC address of target device (12 Bytes ASCII)

AT+SPPDISC - Release SPP Connection

Command	AT+SPPDISC
Description	Release current SPP connection with remote device

AT+SPPSEND - Send Data Via SPP

Command	AT+SPPSEND=Param1,Param2
`Param1`	Payload length (1~492)
`Param2`	Payload (1~492 Bytes UTF8)
Description	If throughput mode is on, this command is de-active

Example: Send data “1234567890” to remote device via SPP
<< AT+SPPSEND=10,1234567890
>> OK

GATT Commands

AT+GATTSTAT - Read GATT State

Command	AT+GATTSTAT
Response	+GATTATAT=Param
Description	Format description reference: +GATTSTAT - GATT State

AT+GATTDISC - Release GATT Connection

Command	AT+GATTDISC
Description	Release current GATT connection with remote device

AT+GATTSEND - Send Data Via GATT

Command	AT+GATTSEND=Param1,Param2
`Param1`	Payload length (1~492)
`Param2`	Payload (1~492 Bytes UTF8)
Description	If throughput mode is on, this command is de-active

Example: Send data “1234567890” to remote device via GATT
<< AT+SPPSEND=10,1234567890
>> OK

HID Commands

AT+HIDSTAT - Read HID State

Command	AT+HIDSTAT
Response	+HIDATAT=Param
Description	Format description reference: +HIDSTAT - HID State

AT+HIDCONN - Establish HID Connection

Command	AT+HIDCONN{=Param}
`Param`	MAC address of target device (12 Bytes ASCII)

AT+HIDDISC - Release HID Connection

Command	AT+HIDDISC
Description	Release current HID connection with remote device

AT+HIDMODE - Get/Set HID Input Mode

Command	AT+HIDMODE{=Param}
`Param`	HID keyboard input mode (0~1), default 1 (0) Hex key code (1) Ascii key code (English)
Note	Module can support various keyboard language with specify firmware, such as:TURKEY SPAIN PORTUGAL FRANCE GERMANY ITALY CZECH JAPAN

AT+HIDDLY - Get/Set HID Report Period

Command	AT+HIDDLY{=Param}
`Param`	HID report period in millisecond, default 10 ms

AT+HIDSEND - Send HID Keyboard Report

Command	AT+HIDSEND=Param1,Param2
`Param1`	Report length
`Param2`	Report payload
Note	For special key code: 0x0D -> ENTER 0x08 -> BACKSPACE 0x09 -> TAB 0x20 -> SPACE

Example: Send key code ‘A’ to remote device (on AT+HIDMODE=1)
>> AT+HIDSEND=1,A
<< OK
Example: Send key code ‘A’ to remote device (on AT+HIDMODE=0)
<< AT+HIDSEND=4, xA1 x01 x00 x04
>> OK
Note: As payload is hex value, hence actual command is:
41 54 2B 48 49 44 53 45 4E 44 3D 34 2C A1 01 00 04 0d 0a
Where:
A1 : report start
01 : page id 1
00 : modifier
04 : key code
Module will auto send debounce key code by itself

AT+HIDCMD - Send HID User Report

Command	AT+HIDCMD=Param
`Param`	2 bytes hid user report e.g., for iPhone: Play/Pause: 00 CD Stop: 00 B7 Forward: 00 B5 Backward: 00 B6 Fast Forward: 00 B3 Rewind:00 B4 Record:00 B2 VolumpUp:00 E9 VolumpDn:00 EA Mute:00 E2 On screen keyboard Toggle:01 AE

Example: Send Volume Up to iPhone
<< AT+HIDCMD= x00 xE9
>> OK
Note: As the payload is hex value, hence actual command is:
41 54 2B 48 49 44 43 4D 44 3D 00 E9 0D 0A

Events Table

General Events

+PWRSTAT - Powering State

Format	+PWRSTAT=Param
`Param`	0-Powering off 1-Powering on(booting)
Description	AT Command is not recommended to be used while powering on/off state

+SCAN - Scan Result

Format1	+SCAN =Param1,Param2,Param3, Param4,Param5,Param6
`Param1`	Index
`Param2`	RSSI (-127 ~ -1)
`Param3`	Device address type (0~3) (0) BR/EDR address (1) LE public address (2) LE random address (3) iOS device with Carplay support
`Param4`	MAC address (12 Bytes ASCII)
`Param5`	Device Name for BR/EDR devices or advertising data for LE devices
`Param6`	Class of device(6 Bytes ASCII)
Format2	+SCAN=E: Scan stopped

Example: Scan BR/EDR nearby devices
<< AT+SCAN=1
>> OK
>> +SCAN=1,-32,3,B019C66209FA,wt-iphone,7A020C
>> +SCAN=2,-74,0,DC0D30000053,BW226,040680
>> +SCAN=3,-43,0,00158354F994,LAPTOP-3L,120104
>> +SCAN=E

+PAIRREQ - Pair Request

Format	+PAIRREQ=Param1,Param2{,Param3}
`Param1`	Passkey (000000~999999)
`Param2`	MAC address (12 Bytes ASCII) of current pairing device
`Param3`	Name of current pairing device

+PAIRED - Pair Result

Format	+PAIRED=Param1,Param2
`Param1`	Pair result (0)-Success (1~255)-Failed reason
`Param2`	MAC address (12 Bytes ASCII) of current pairing device

+CODEC - Codec ID

Format	+CODEC=Param
`Param`	Code id (1) NAU88L25B (2) TI TLV32AIC3204 (3) ES8388
Description	Firmware integrated I2C drivers of several codecs, such as NAU88L25B/ TLV32AIC3204/ ES8388, and probe one of them on booting。 BT1036, BT955, BT936 chips have built-in Codec, and do not report Codec instructions

HFP Events

+HFPSTAT - HFP State

Format	+HFPSTAT=Param1{,Param2{,Param3}}
`Param1`	(0~10) (0) Unsupported (1) Standby (2) Connecting (3) Connected (4) Outgoing call (5) Incoming call (6) Active call (7) Active held (3-way-calling) (8) First call active, second call waiting (3-way-calling) (9) First call active, second call held (3-way-calling) (10) First call outgoing, second call held (3-way-calling)
`Param2`	Call number, only present for state > 3
`Param3`	Call number(Three-way calling)

Example: Dial number 10086
<< AT+HFPDIAL=10086
>> +HFPSTAT=3
>> +HFPSTAT=4,10086
>> +HFPAUDIO=1
Example:  Incoming call with number 13265463800
>> +HFPSTAT=5, 13265463800
>> +HFPAUDIO=1

+HFPDEV - HFP Remote Device Information

Format	+HFPDEV=Param1{,Param2}
`Param1`	(12 Bytes ASCII), Remote MAC address of current HFP connection
`Param2`	(UTF8), Remote device name of current HFP connection

Example: HFP connect success with device

>> +HFPDEV=1C5CF226D774, iPhone

+HFPAUDIO - HFP Voice Audio State

Format	+HFPAUDIO=Param
`Param`	(0) HFP voice audio disconnected, audio input/output routed to remote device (1) HFP voice audio connected, audio input/output routed to module

+HFPSIG - HFP Remote Device Network Signal Strength

Format	+HFPSIG=Param
`Param`	(0~5)Network signal strength of remote device

+HFPROAM - HFP Remote Device Roaming State

Format	+HFPROAM=Param
`Param`	(0/1) Roaming state of remote device

+HFPBATT - HFP Remote Device Battery Level

Format	+HFPBATT=Param
`Param`	(0~5) Battery level of remote device

+HFPNET - HFP Remote Device Network Operator Selection

Format	+HFPNET=Param
`Param`	（UTF8）Network operator selection of remote device

+HFPMANU - HFP Remote Device Manufacture

Format	+HFPMANU=Param
`Param`	（UTF8）Manufacture name of remote device

+HFPNUM - HFP Remote Device Phone Subscriber Number

Format	+HFPNUM=Param
`Param`	(ASCII)Phone subscriber number of remote device

+HFPIBR - HFP Remote Device In-band-ring Support

Format	+HFPIBR=Param
`Param`	(0/1) In-band-ring support
Description	Report whether the current connected phone support in-band-ring

+HFPRING - HFP Remote Device Ringing

Format	+HFPRING=Param
`Param`	(0/1) In-band-ring off/on
Description	Phone is ringing when call incoming, the host platform should play a local ringtone if in-band-ring not supported by remote mobile phone

A2DP/AVRCP Events

+A2DPSTAT - A2DP State

Format	+A2DPSTAT=Param
`Param`	(0) Unsupported (1) Standby (2) Connecting (3) Connected (4) Paused (5) Streaming

+A2DPDEV - A2DP Remote Device Information

Format	+A2DPDEV=Param1{,Param2}
`Param1`	(12 Bytes ASCII), Remote device’s MAC address of current A2DP connection
`Param2`	(UTF8), Remote device’s name of current A2DP connection

+AVRCPSTAT - AVRCP State

Format	+AVRCPSTAT=Param
`Param`	(0) Unsupported (1) Standby (2) Connecting (3) Connected

+PLAYSTAT - Media Player State

Format	+PLAYSTAT=Param
`Param`	(0) Stopped (1) Playing (2) Paused (3) Fast Forwarding (4) Fast Rewinding

+PLAYMODE - Media Player Repeat/ Shuffle Mode

Format	+PLAYMODE=Param1,Param2
`Param1`	Repeat Mode (1~4) (1) Off (2) Single Track (3) All Tracks (4) Group
`Param2`	Shuffle Mode (1~3) (1) Off (2) All Tracks (3) Group

+TRACKSTAT - Media Player Play Progress

Format	+TRACKSTAT=Param1,Param2,Param3
`Param1`	(0~4), Media Player State, see +PLAYSTAT
`Param2`	(Decimal ASCII),Elapsed time of current track in second
`Param3`	(Decimal ASCII),Total time of current track in second

Example: Read media player play progress every 1s
>> +TRACKSTAT=1,54,322
>> +TRACKSTAT=1,55,322
>> +TRACKSTAT=1,56,322

+TRACKINFO - Media Track Information

Format	+TRACKINFO=Param1,Param2,Param3
`Param1`	title
`Param2`	artist
`Param3`	album

Example: Phone playing song “Creep-Radio Head”

>> +TRACKINFO=Creep , Radiohead , Pablo Honey

+BROWSTAT - Media Browsing State

Format	+BROWSTAT=Param
`Param`	(0) Unsupported (1) Standby (2) Connecting (3) Connected (4) Browsing

+BROWDATA - Media Player Filesystem Browsing Data

Format	+BROWDATA=Param1, Param2 {, Param3{, Param4}}
`Param1`	Browsing type, for each type, the following data means:
`P`	Parame1: media player information Parame2: 0 – support browsing; 1- not support browsing Parame3: media player id Parame4: media player name
`R`	Parame1: root dictionary name Parame2: root dictionary name
`F`	Parame1: folder ID and name Parame2: folder ID Parame3: folder name
`M`	Parame1: media track ID and name Parame2: media track ID Parame3: media track name
`E`	Parame1: browsing operation result code Parame2: 0 - browsing success; other - browsing error code

+BIPSTAT - BIP State

Format	+BIPSTAT=Param
`Param`	(0) Unsupported (1) Standby (2) Connecting (3) Connected (4) Downloading
Description	BIP Profile only used for media player cover art image downloading now

+COVERART - Media Track Cover Art Download Success

Format	+COVERART=Param
`Param`	Image ID
Description	Cover art image should be placed in specify folder with name ImageID.jpg

Phonebook Access Events

+PBSTAT - PBAP State

Format	+PBSTAT=Param
`Param`	(0) Unsupported (1) Standby (2) Connecting (3) Connected (4) Downloading

+PBCNT - Phonebook Entries of Remote Device

Format	+PBCNT=Param
`Param`	Phonebook entries of remote device

+PBDATA - Phonebook Data

Format1	+PBDATA=Param1,Param2,Param3{,Param4}
`Param1`	Type (0) Phonebook (SIM Storage) (1) Phonebook (Phone Storage) (2) Received call log (3) Dialed call log (4) Missed call log
`Param2`	Name
`Param3`	Number
`Param4`	(15 Bytes ASCII), Call time if current download type is call log Format: Year(4Bytes) Month(2Bytes) Day(2Bytes) T(1Byte) Hour(2Bytes) Minute(2Bytes) Second(2Bytes). e.g. 20161012T152826 represents 2016/10/12/15/28/26
`Param4-2`	Contact photo download compete flag if current download type is Phonebook, otherwise this parameter will not exist
Format2	+PBDATA=E: Download complete
Description	Call time may not exist for some mobile phones

Example: Download all phonebook

<< AT+PBDOWN=1

>> +PBCNT=234

+PBDATA=1 , Jack , 18219146201
+PBDATA=1 , kenan , 8613771972680
……
+PBDATA=E

Example: Download 10 dialed call log

<< AT+PBDOWN=3,10

>> +PBDATA=3 , China Mobile , 10086 , 20171013T103516

+PBDATA=3 , Jerry , 18688967507 , 20171012T152826
……
+PBDATA=E

SPP Events

Note

Events for iAP2 (Apple Accessory Protocol) and AAP (Android Auto Protocol) are almost the same with SPP, which are:

+IAPSTAT, +IAPDATA for iAP2 profile
+AAPSTAT, +AAPDATA for AAP profile

Document will omit these events.

+SPPSTAT - SPP State

Format	+SPPSTAT=Param
`Param`	(0) Unsupported (1) Standby (2) Connecting (3) Connected

+SPPDATA - SPP Received Incoming Data

Format	+SPPDATA=Param1,Param2
`Param1`	Payload length
`Param2`	Payload

Example: Received data “1234567890” from remote device via SPP

<< +SPPDATA=10,1234567890

GATT Events

+GATTSTAT - GATT State

Format	+GATTSTAT=Param
`Param`	(0) Unsupported (1) Standby (2) Connecting (3) Connected

+GATTDATA - GATT Received Incoming Data

Format	+SPPDATA=Param1,Param2
`Param1`	Payload length
`Param2`	Payload

Example: Received data “1234567890” from remote device via GATT

<< +GATTDATA=10,1234567890

HID Events

+HIDSTAT - HID State

Format	+HIDSTAT=Param
`Param`	(0) Unsupported (1) Standby (2) Connecting (3) Connected

Appendix

Download PDF

Download PDF

0	Analog mode, module will probe internal/external codecs via I2C on booting, and will report +CODEC= id to indicate user which codec has been recognized
1	I2S Master; Sample rate=48000Hz; Resolution=16bits; Bit clock= 48000162ch=1.536Mhz
3	I2S Slave; Sample rate=48000Hz; Resolution=16bits; Bit clock= 48000162ch=1.536Mhz
65	I2S Master; Sample rate=48000Hz; Resolution=32bits; Bit clock= 48000322ch=3.072Mhz
67	I2S Slave; Sample rate=48000Hz; Resolution=32bits; Bit clock= 48000322ch=3.072Mhz
113	PCM Master; Sample rate=48000Hz; Resolution=16bits; Bit clock= 48000162ch=1.536Mhz
