FeasyOTA User Guide

[中文版]

Version

Date

Author

2.0

2025-09-09

Oran

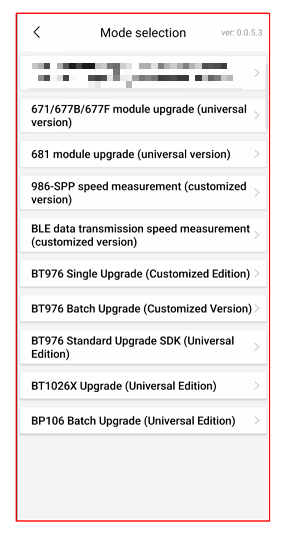

Funticon Description

Function Block

Description

671/677B/677F Module upgrade（Universal Edition）

General firmware upgrade for BLE modules

681 Module upgrade（Universal Edition）

General firmware upgrade for BLE modules

BT976 Individual upgrade（Customized Version）

The BLE module specifies a custom firmware upgrade

BT976 Individual upgrade（Customized Version）

The BLE module specifies a custom firmware upgrade

BT976 Standard Upgrade SDK（Universal Edition）

General firmware upgrade for BLE modules

BT1026x Upgrade（Universal Edition）

The audio module is generally upgraded

BP106 Bath Upgrade（Universal Edition）

The Beacon module is generally upgraded

BT986-SPP spped meassurement（customized Edition）

Automated testing capabilities

BLE data transmission spped meassurement（customized Edition）

Automated testing capabilities

FSC-BT1026x Audio Module

Overview

In FeasyBlue v3.5.0 and above, FSC-BT1026x series firmware upgrade will no longer be supported, and you need to use FeasyOTA for operation.

Mobile phone models and system versions that have been tested to be upgraded normally: (Including but not limited to the following)

Phone model

System version

HUAWEI P40

HarmonyOS 4.0

HUAWEI P30

HarmonyOS 3.0

xiaomi 12S Pro

Android 13

xiaomi 11

Android 11

xiaomi 10

Android 13

xiaomi 9

Android 11

OPPO Reno4

Andorid 13

Mi 10S

Andorid 12

relme 12Pro

Android 14

BT1026x OTA Upgrade

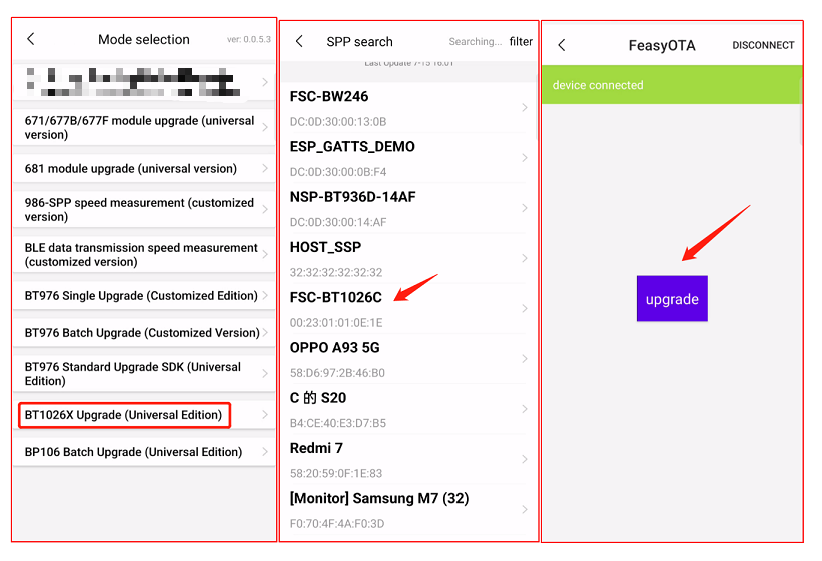

  1. Main interface, click BT1026x Upgrade

  2. Tap the name of the Bluetooth you want to upgrade

  3. After clicking Upgrade, there are two ways to upgrade

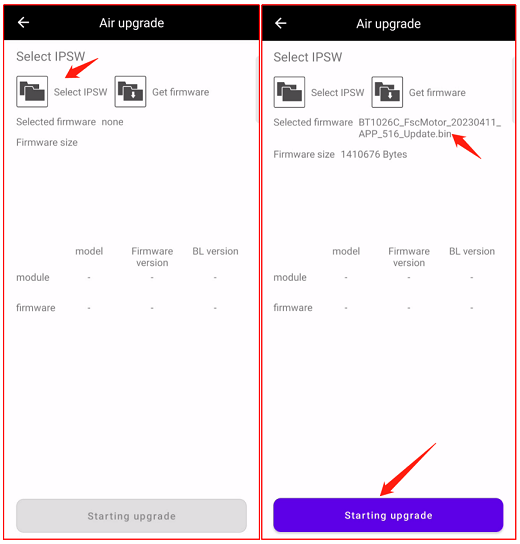

Select Firmware: The upgrade file has been stored on the phone, and the upgrade file is found and upgraded, as shown in the following figure. Select the upgrade file in the folder, select Upgrade, start the upgrade, and wait for the upgrade to complete.

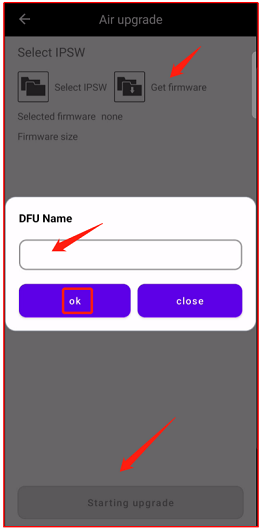

Get the firmware: When using this method, pay attention to the mobile phone needs to be connected to the Internet and enter the corresponding download path.

After entering the correct path, click OK, the App will automatically download the upgrade file, after the download is completed, click Start Upgrade, and wait for the upgrade to complete

FAQs

  1. When installing the App, please allow the App to obtain permissions such as “Nearby Devices”, “Location Information”, “Media & Files”, otherwise the module firmware may not be upgraded.

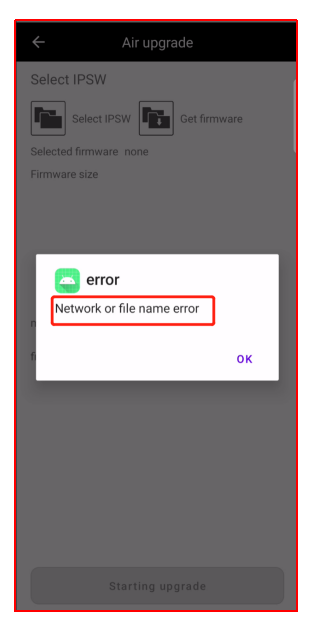

  2. To download the upgrade file by entering the path, you need to pay attention to the mobile phone network, and the path output is correct (case sensitive), otherwise an error will be reported, as shown in the figure.

  3. During the upgrade process, be careful not to disconnect the power supply.

BLE Module

FSC-BT671/BT677B/BT677F General Upgrade

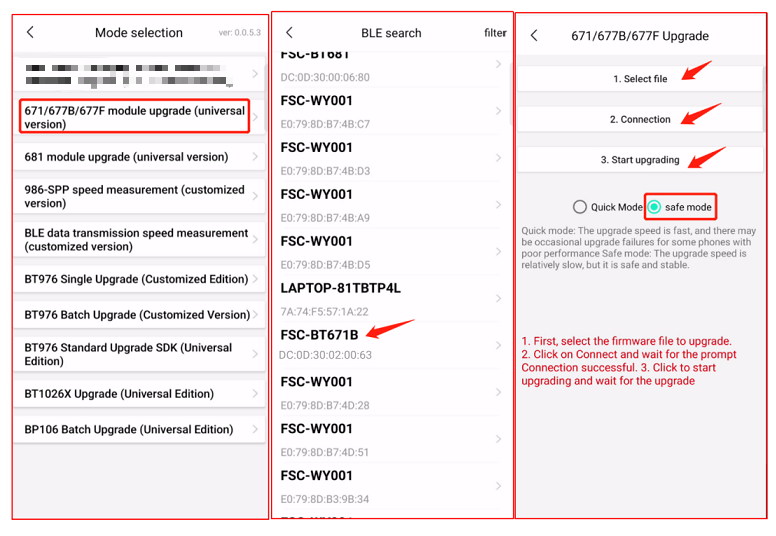

  1. Main interface, click 671/677B/677F module upgrade(universal version)

  2. Tap the name of the Bluetooth you want to upgrade

  3. Click Choose File -> Connect -> to start the upgrade

  4. The upgrade is complete,After clicking Start Upgrade, there are two ways to upgrade:

Safe Mode :The default upgrade method is slower, which is relatively safer and more stable

Quick Mode :The upgrade speed is fast, and the performance of some mobile phones will affect the upgrade result

FSC-BT681 - General Upgrade

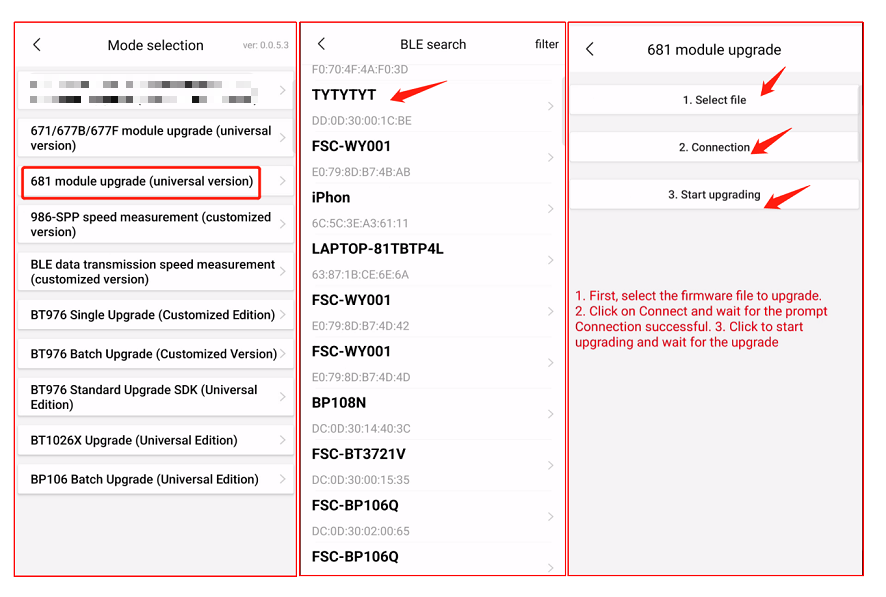

  1. Main interface, click 681 module upgrade(universal version)

  2. Tap the name of the Bluetooth you want to upgrade

  3. Click Choose File -> Connect -> to start the upgrade

  4. The upgrade is complete

FSC-BT976 - General Upgrade

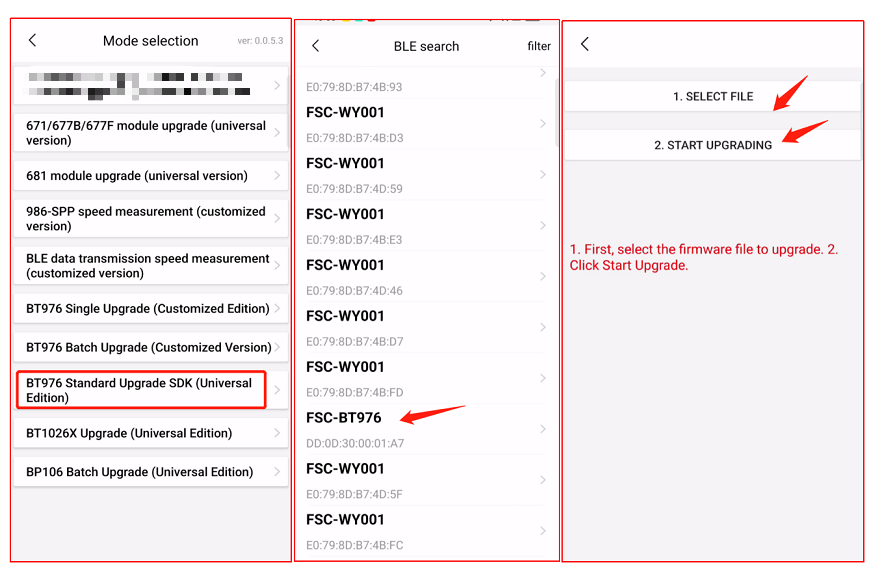

  1. Main interface, click BT976 Standard Upgrade SDK(Universal Edition)

  2. Tap the name of the Bluetooth you want to upgrade

  3. Click Choose file

  4. Click Start Upgrade

  5. The upgrade is complete

Beacon Module

BP106 Batch Upgrade - General

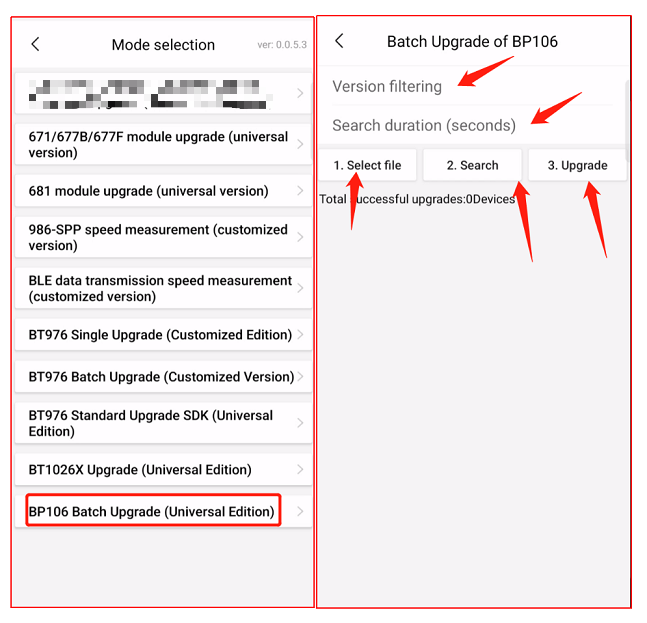

  1. Main interface, click BP106 Bath Upgrade

  2. Add filtering information

  3. Click Select File > Search > to start the upgrade
