Development Examples

[中文版]

Profile Initialization

Module Profile initialization, response event examples are as follows:

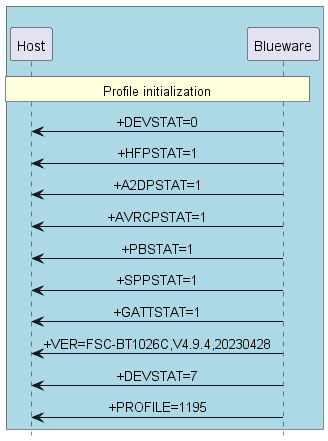

@startuml hide footbox skinparam sequenceMessageAlign center box #LightBlue participant Host as host participant Blueware as bt end box rnote over host, bt: Profile initialization bt -> host: +DEVSTAT=0 bt -> host: +HFPSTAT=1 bt -> host: +A2DPSTAT=1 bt -> host: +AVRCPSTAT=1 bt -> host: +PBSTAT=1 bt -> host: +SPPSTAT=1 bt -> host: +GATTSTAT=1 bt -> host: +VER=FSC-BT1026C,V4.9.4,20230428 bt -> host: +DEVSTAT=7 bt -> host: +PROFILE=1195 @enduml

Parameter Modification

Modify Bluetooth Name

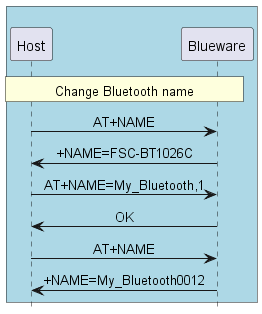

@startuml hide footbox skinparam sequenceMessageAlign center box #LightBlue participant Host as host participant Blueware as bt end box rnote over host, bt: Change Bluetooth name host -> bt: AT+NAME bt -> host: +NAME=FSC-BT1026C host -> bt: AT+NAME=My_Bluetooth,1 bt -> host: OK host -> bt: AT+NAME bt -> host: +NAME=My_Bluetooth0012 @enduml

Before the MCU modifies any parameters, it is recommended to first query, then modify, and finally verify. For the MCU to modify the device name to CARKIT, the reference code example is as follows:

void change_name(void)
{

    uart_send("AT+NAME\r\n");
    if(uart_read("+NAME",name_buf))
    {
        if(memcmp(name_buf,"CARKIT",6))
        {
            uart_send("AT+NAME=CARKIT,0\r\n");  //defalut disable MAC address suffix
            uart_send("AT+NAME\r\n"); // read bt name
            if(uart_read("+NAME",name_buf))
            {
                if(memcmp(name_buf,"CARKIT",6))
                {
                    //change name fail
                }
                else
                {
                    //change name success
                }
            }
        }
    }
}

Auido Sink Mode Application

Profile Connection

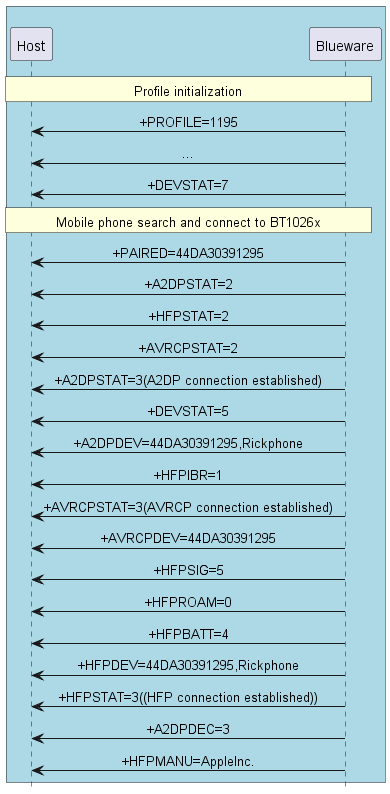

@startuml hide footbox skinparam sequenceMessageAlign center box #LightBlue participant Host as host participant Blueware as bt end box rnote over host, bt: Profile initialization bt -> host: +PROFILE=1195 bt -> host: ... bt -> host: +DEVSTAT=7 rnote over host, bt:Mobile phone search and connect to BT1026x bt -> host: +PAIRED=44DA30391295 bt -> host: +A2DPSTAT=2 bt -> host: +HFPSTAT=2 bt -> host: +AVRCPSTAT=2 bt -> host: +A2DPSTAT=3(A2DP connection established) bt -> host: +DEVSTAT=5 bt -> host: +A2DPDEV=44DA30391295,Rickphone bt -> host: +HFPIBR=1 bt -> host: +AVRCPSTAT=3(AVRCP connection established) bt -> host: +AVRCPDEV=44DA30391295 bt -> host: +HFPSIG=5 bt -> host: +HFPROAM=0 bt -> host: +HFPBATT=4 bt -> host: +HFPDEV=44DA30391295,Rickphone bt -> host: +HFPSTAT=3((HFP connection established)) bt -> host: +A2DPDEC=3 bt -> host: +HFPMANU=AppleInc. @enduml

Play and Pause Music

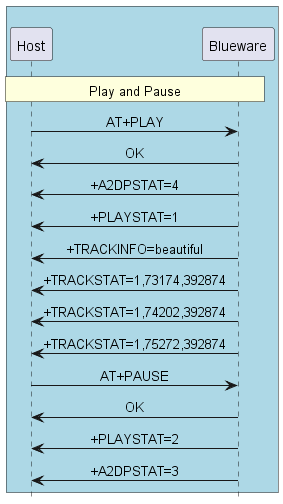

@startuml hide footbox skinparam sequenceMessageAlign center box #LightBlue participant Host as host participant Blueware as bt end box rnote over host, bt: Play and Pause host -> bt: AT+PLAY bt -> host: OK bt -> host: +A2DPSTAT=4 bt -> host: +PLAYSTAT=1 bt -> host: +TRACKINFO=beautiful bt -> host: +TRACKSTAT=1,73174,392874 bt -> host: +TRACKSTAT=1,74202,392874 bt -> host: +TRACKSTAT=1,75272,392874 host -> bt: AT+PAUSE bt -> host: OK bt -> host: +PLAYSTAT=2 bt -> host: +A2DPSTAT=3 @enduml

Take and Hang up Call

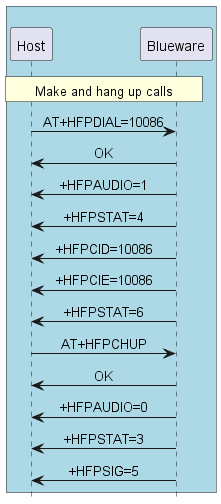

@startuml hide footbox skinparam sequenceMessageAlign center box #LightBlue participant Host as host participant Blueware as bt end box rnote over host, bt: Make and hang up calls host -> bt: AT+HFPDIAL=10086 bt -> host: OK bt -> host: +HFPAUDIO=1 bt -> host: +HFPSTAT=4 bt -> host: +HFPCID=10086 bt -> host: +HFPCIE=10086 bt -> host: +HFPSTAT=6 host -> bt: AT+HFPCHUP bt -> host: OK bt -> host: +HFPAUDIO=0 bt -> host: +HFPSTAT=3 bt -> host: +HFPSIG=5 @enduml

Phonebook Download

Application Process Operation Examples:

HFP connection has been established

Response: <<+PWRSTAT=1
Response: <<+VER=FSC-BT1026C,V4.9.4,20230428     // Example, please refer to the actual version
Response: <<+PROFILE=1195            // General default, enable SPP, GATT Server, HFP-HF, A2DP Sink, AVRCP Controller, PBAP Server profiles
Response: <<+SPPSTAT=1
Response: <<+GATTSTAT=1
Response: <<+A2DPSTAT=1
Response: <<+AVRCPSTAT=1
Response: <<+HFPSTAT=1
Response: <<+AVRCPSTAT=1
Response: <<+PBSTAT=1
Response: <<+DEVSTAT=1
Response: <<+DEVSTAT=7            // Enables device discoverability; mobile phones can find this Bluetooth device and establish a connection

Download all phonebooks

Send :>>AT+PBDOWN=1
Response: <<OK
Response: <<+PBSTAT=2
Response: <<+PBSTAT=3         // PBAP connected
Response: <<+PBSTAT=4         // PBAP downloading
Response: <<+PBDATA=1<FF>Local Number<FF>+8618620277272
Response: <<+PBDATA=1<FF>Zhang San<FF>0571-85592192
  ...
Response: <<+PBDATA=1<FF>Jerry<FF>18909731215
Response: <<+PBDATA=E         // Download completed
Response: <<+PBSTAT=3

Download 50 call records

Send: >>AT+PBWODN=5,50
Response: <<ok
Response: <<+PBDATA=3<FF>yidong<FF>+10086<FF>20200213T114247
  ...
Response: <<+PBDATA=2<FF>andy<FF>85592192<FF>20200212T104202
Response: <<+PBDATA=E                    // Download completed
Response: <<+PBSTAT=3
