Development Examples

[中文版]

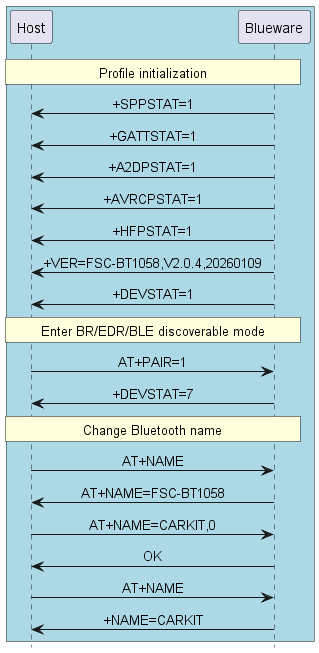

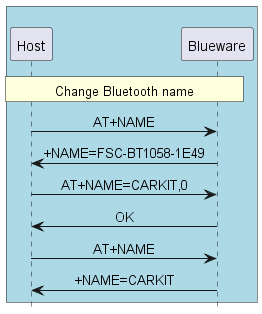

Modify Bluetooth Name

@startuml hide footbox skinparam sequenceMessageAlign center box #LightBlue participant Host as host participant Blueware as bt end box rnote over host, bt: Profile initialization bt -> host: +SPPSTAT=1 bt -> host: +GATTSTAT=1 bt -> host: +A2DPSTAT=1 bt -> host: +AVRCPSTAT=1 bt -> host: +HFPSTAT=1 bt -> host: +VER=FSC-BT1058,V2.0.4,20260109 bt -> host: +DEVSTAT=1 rnote over host, bt: Enter BR/EDR/BLE discoverable mode host -> bt: AT+PAIR=1 bt -> host: +DEVSTAT=7 rnote over host, bt: Change Bluetooth name host -> bt: AT+NAME bt -> host: AT+NAME=FSC-BT1058 host -> bt: AT+NAME=CARKIT,0 bt -> host: OK host -> bt: AT+NAME bt -> host: +NAME=CARKIT @enduml

For the MCU to modify the device name to CARKIT, the reference code example is as follows:

 1void change_name(void)
 2{
 3    uart_send("AT+NAME\r\n");
 4    if(uart_read("+NAME",name_buf))
 5    {
 6        if(memcmp(name_buf,"CARKIT",6))
 7        {
 8            uart_send("AT+NAME=CARKIT,0\r\n");  // disable MAC address suffix
 9            uart_send("AT+NAME\r\n");   // read bt name
10            if(uart_read("+NAME",name_buf))
11            {
12                if(memcmp(name_buf,"CARKIT",6))
13                {
14                    //change name fail
15                }
16                else
17                {
18                    //change name success
19                }
20            }
21        }
22    }
23}

Note

Before the MCU modifies any parameters, it is recommended to first query, then modify, and finally verify.

SPP Data Transmission

@startuml hide footbox skinparam sequenceMessageAlign center box #LightBlue participant Host as host participant Blueware as bt end box rnote over host, bt: Profile initialization bt -> host: +SPPSTAT=1 bt -> host: ... bt -> host: +DEVSTAT=1 rnote over host, bt: Enter BR/EDR/BLE discoverable mode host -> bt: AT+PAIR=1 bt -> host: OK bt -> host: +DEVSTAT=7 rnote over host, bt: Mobile phone connect to BT1058 bt -> host: +PAIRED=594171484D07 bt -> host: +SPPDEV=594171484D07 bt -> host: +SPPSTAT=3 bt -> host: +DEVSTAT=5 rnote over host, bt: Send data to the mobile phone host -> bt: AT+SPPSEND=10,0123456789 bt -> host: OK rnote over host, bt: Received the data sent by the mobile phone. bt -> host: +SPPDATA=10,0123456789 rnote over host, bt: disconnected host -> bt: AT+SPPDISC bt -> host: OK bt -> host: +SPPSTAT=1 bt -> host: +DEVSTAT=7 @enduml

Note

Apple devices do not support SPP connection.

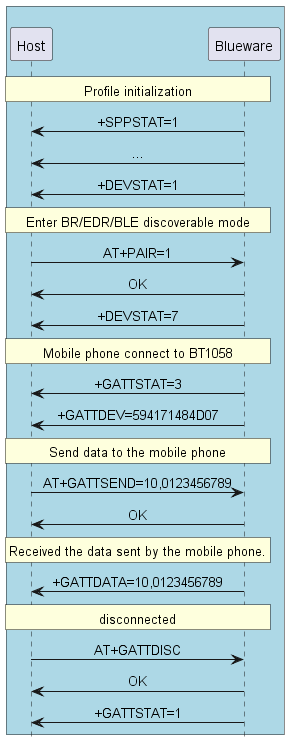

GATT Data Transmission

@startuml hide footbox skinparam sequenceMessageAlign center box #LightBlue participant Host as host participant Blueware as bt end box rnote over host, bt: Profile initialization bt -> host: +SPPSTAT=1 bt -> host: ... bt -> host: +DEVSTAT=1 rnote over host, bt: Enter BR/EDR/BLE discoverable mode host -> bt: AT+PAIR=1 bt -> host: OK bt -> host: +DEVSTAT=7 rnote over host, bt: Mobile phone connect to BT1058 bt -> host: +GATTSTAT=3 bt -> host: +GATTDEV=594171484D07 rnote over host, bt: Send data to the mobile phone host -> bt: AT+GATTSEND=10,0123456789 bt -> host: OK rnote over host, bt: Received the data sent by the mobile phone. bt -> host: +GATTDATA=10,0123456789 rnote over host, bt: disconnected host -> bt: AT+GATTDISC bt -> host: OK bt -> host: +GATTSTAT=1 @enduml

Audio Source Application

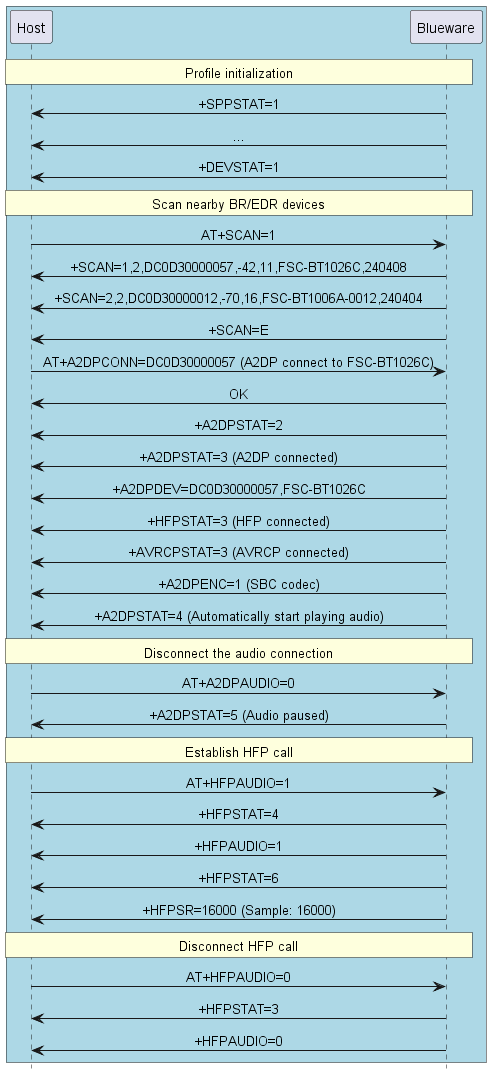

A2DP/HFP Application

@startuml hide footbox skinparam sequenceMessageAlign center box #LightBlue participant Host as host participant Blueware as bt end box rnote over host, bt: Profile initialization bt -> host: +SPPSTAT=1 bt -> host: ... bt -> host: +DEVSTAT=1 rnote over host, bt: Scan nearby BR/EDR devices host -> bt: AT+SCAN=1 bt -> host: +SCAN=1,2,DC0D30000057,-42,11,FSC-BT1026C,240408 bt -> host: +SCAN=2,2,DC0D30000012,-70,16,FSC-BT1006A-0012,240404 bt -> host: +SCAN=E host -> bt: AT+A2DPCONN=DC0D30000057 (A2DP connect to FSC-BT1026C) bt -> host: OK bt -> host: +A2DPSTAT=2 bt -> host: +A2DPSTAT=3 (A2DP connected) bt -> host: +A2DPDEV=DC0D30000057,FSC-BT1026C bt -> host: +HFPSTAT=3 (HFP connected) bt -> host: +AVRCPSTAT=3 (AVRCP connected) bt -> host: +A2DPENC=1 (SBC codec) bt -> host: +A2DPSTAT=4 (Automatically start playing audio) rnote over host, bt: Disconnect the audio connection host -> bt: AT+A2DPAUDIO=0 bt -> host: +A2DPSTAT=5 (Audio paused) rnote over host, bt: Establish HFP call host -> bt: AT+HFPAUDIO=1 bt -> host: +HFPSTAT=4 bt -> host: +HFPAUDIO=1 bt -> host: +HFPSTAT=6 bt -> host: +HFPSR=16000 (Sample: 16000) rnote over host, bt: Disconnect HFP call host -> bt: AT+HFPAUDIO=0 bt -> host: +HFPSTAT=3 bt -> host: +HFPAUDIO=0 @enduml

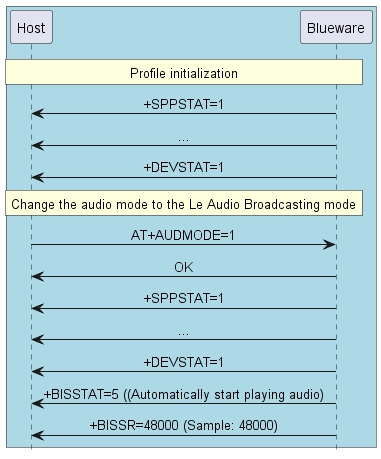

LE Audio Broadcast Application

@startuml hide footbox skinparam sequenceMessageAlign center box #LightBlue participant Host as host participant Blueware as bt end box rnote over host, bt: Profile initialization bt -> host: +SPPSTAT=1 bt -> host: ... bt -> host: +DEVSTAT=1 rnote over host, bt: Change the audio mode to the Le Audio Broadcasting mode host -> bt: AT+AUDMODE=1 bt -> host: OK bt -> host: +SPPSTAT=1 bt -> host: ... bt -> host: +DEVSTAT=1 bt -> host: +BISSTAT=5 ((Automatically start playing audio) bt -> host: +BISSR=48000 (Sample: 48000) @enduml

Note

After setting it up, you can use devices that support the Le Audio function for scanning, such as FSC-BT1038A.

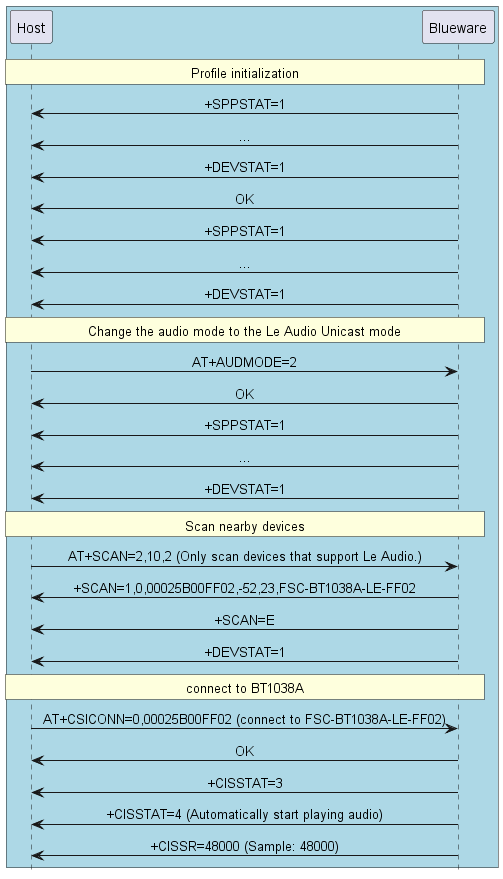

LE Audio Unicast Mode

@startuml hide footbox skinparam sequenceMessageAlign center box #LightBlue participant Host as host participant Blueware as bt end box rnote over host, bt: Profile initialization bt -> host: +SPPSTAT=1 bt -> host: ... bt -> host: +DEVSTAT=1 bt -> host: OK bt -> host: +SPPSTAT=1 bt -> host: ... bt -> host: +DEVSTAT=1 rnote over host, bt: Change the audio mode to the Le Audio Unicast mode host -> bt: AT+AUDMODE=2 bt -> host: OK bt -> host: +SPPSTAT=1 bt -> host: ... bt -> host: +DEVSTAT=1 rnote over host, bt: Scan nearby devices host -> bt: AT+SCAN=2,10,2 (Only scan devices that support Le Audio.) bt -> host: +SCAN=1,0,00025B00FF02,-52,23,FSC-BT1038A-LE-FF02 bt -> host: +SCAN=E bt -> host: +DEVSTAT=1 rnote over host, bt: connect to BT1038A host -> bt: AT+CSICONN=0,00025B00FF02 (connect to FSC-BT1038A-LE-FF02) bt -> host: OK bt -> host: +CISSTAT=3 bt -> host: +CISSTAT=4 (Automatically start playing audio) bt -> host: +CISSR=48000 (Sample: 48000) @enduml

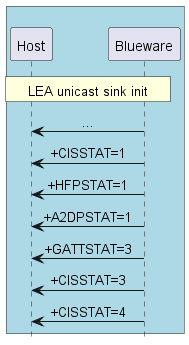

Audio Sink Application

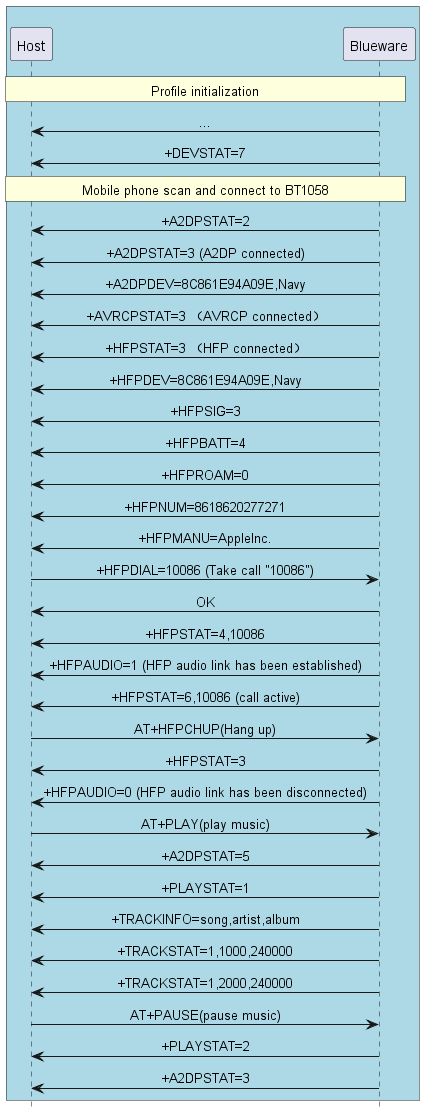

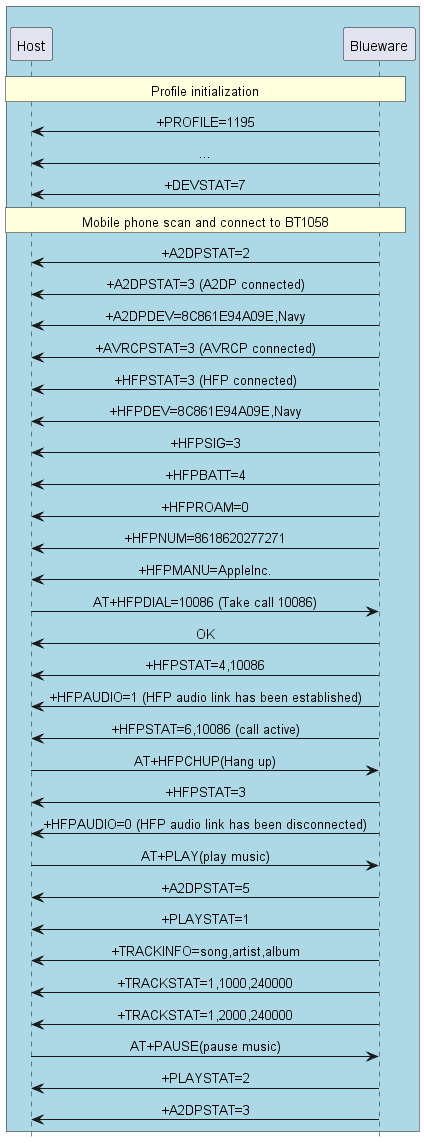

Classic Auido Sink Mode Application

@startuml hide footbox skinparam sequenceMessageAlign center box #LightBlue participant Host as host participant Blueware as bt end box rnote over host, bt: Profile initialization bt -> host: ... bt -> host: +DEVSTAT=7 rnote over host, bt: Mobile phone scan and connect to BT1058 bt -> host: +A2DPSTAT=2 bt -> host: +A2DPSTAT=3 (A2DP connected) bt -> host: +A2DPDEV=8C861E94A09E,Navy bt -> host: +AVRCPSTAT=3 （AVRCP connected） bt -> host: +HFPSTAT=3 （HFP connected） bt -> host: +HFPDEV=8C861E94A09E,Navy bt -> host: +HFPSIG=3 bt -> host: +HFPBATT=4 bt -> host: +HFPROAM=0 bt -> host: +HFPNUM=8618620277271 bt -> host: +HFPMANU=AppleInc. host -> bt: +HFPDIAL=10086 (Take call "10086") bt -> host: OK bt -> host: +HFPSTAT=4,10086 bt -> host: +HFPAUDIO=1 (HFP audio link has been established) bt -> host: +HFPSTAT=6,10086 (call active) host -> bt: AT+HFPCHUP(Hang up) bt -> host: +HFPSTAT=3 bt -> host: +HFPAUDIO=0 (HFP audio link has been disconnected) host -> bt: AT+PLAY(play music) bt -> host: +A2DPSTAT=5 bt -> host: +PLAYSTAT=1 bt -> host: +TRACKINFO=song,artist,album bt -> host: +TRACKSTAT=1,1000,240000 bt -> host: +TRACKSTAT=1,2000,240000 host -> bt: AT+PAUSE(pause music) bt -> host: +PLAYSTAT=2 bt -> host: +A2DPSTAT=3 @enduml

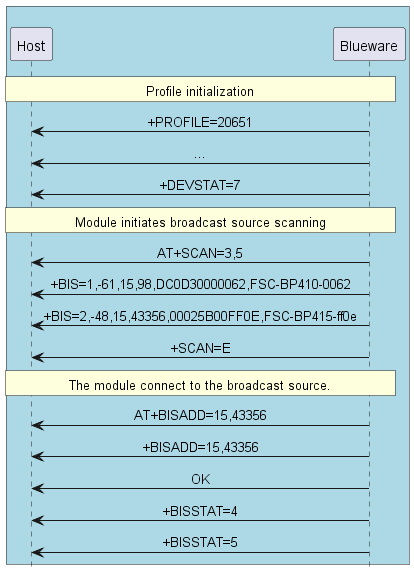

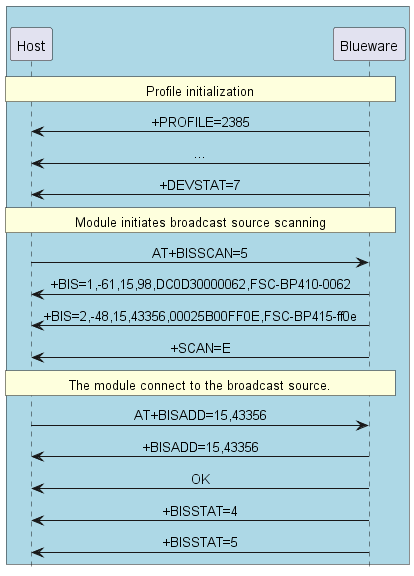

LE Audio Broadcast Slave Application

@startuml hide footbox skinparam sequenceMessageAlign center box #LightBlue participant Host as host participant Blueware as bt end box rnote over host, bt: Profile initialization bt -> host: +PROFILE=20651 bt -> host: ... bt -> host: +DEVSTAT=7 rnote over host, bt: Module initiates broadcast source scanning bt -> host: AT+SCAN=3,5 bt -> host: +BIS=1,-61,15,98,DC0D30000062,FSC-BP410-0062 bt -> host: +BIS=2,-48,15,43356,00025B00FF0E,FSC-BP415-ff0e bt -> host: +SCAN=E rnote over host, bt: The module connect to the broadcast source. bt -> host: AT+BISADD=15,43356 bt -> host: +BISADD=15,43356 bt -> host: OK bt -> host: +BISSTAT=4 bt -> host: +BISSTAT=5 @enduml
