Development Examples

[中文版]

Profile Initialization

Module Profile initialization, response event examples are as follows:

@startuml hide footbox skinparam sequenceMessageAlign center box #LightBlue participant Host as host participant Blueware as bt end box rnote over host, bt: Profile initialization bt -> host: +PWRSTAT=1 bt -> host: +SPPSTAT=1 bt -> host: +GATTSTAT=1 bt -> host: +VER=BT1036,V2.8.7,20250306 bt -> host: +PROFILE=339 bt -> host: +A2DPSTAT=1 bt -> host: +AVRCPSTAT=1 bt -> host: +HFPSTAT=1 bt -> host: +DEVSTAT=1 bt -> host: +DEVSTAT=7 @enduml

Parameter Modification

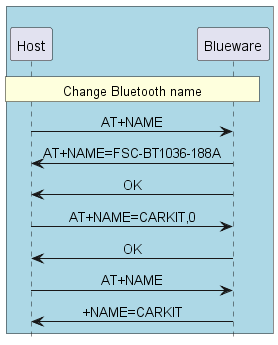

Modify Bluetooth Name

@startuml hide footbox skinparam sequenceMessageAlign center box #LightBlue participant Host as host participant Blueware as bt end box rnote over host, bt: Change Bluetooth name host -> bt: AT+NAME bt -> host: AT+NAME=FSC-BT1036-188A bt -> host: OK host -> bt: AT+NAME=CARKIT,0 bt -> host: OK host -> bt: AT+NAME bt -> host: +NAME=CARKIT @enduml

Before the MCU modifies any parameters, it is recommended to first query, then modify, and finally verify. For the MCU to modify the device name to CARKIT, the reference code example is as follows:

void change_name(void)
{

    uart_send("AT+NAME\r\n");
    if(uart_read("+NAME",name_buf))
    {
        if(memcmp(name_buf,"CARKIT",6))
        {
            uart_send("AT+NAME=CARKIT,0\r\n");  //defalut disable MAC address suffix
            uart_send("AT+NAME\r\n"); // read bt name
            if(uart_read("+NAME",name_buf))
            {
                if(memcmp(name_buf,"CARKIT",6))
                {
                    //change name fail
                }
                else
                {
                    //change name success
                }
            }
        }
    }
}

Auido Sink Mode Application

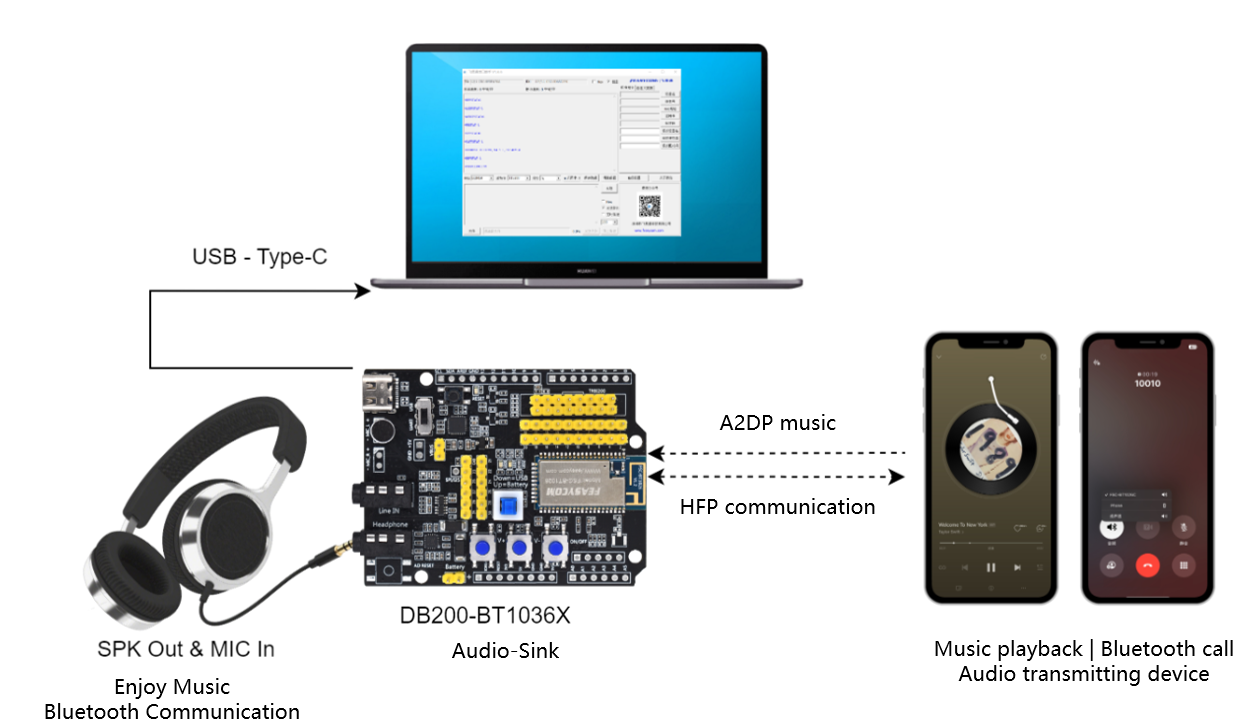

Application Scenarios

../_images/db200-bt1036-audio-rx-200dpi.png

Application Examples

Note

If the factory firmware of the module is transceiver-in-one program, the default +PROFILE=339. You need to send the AT command AT+PROFILE=1195 to configure it to audio sink mode (enabling SPP, GATT Server, HFP Sink, A2DP Sink, AVRCP-Controller, and PBAP).

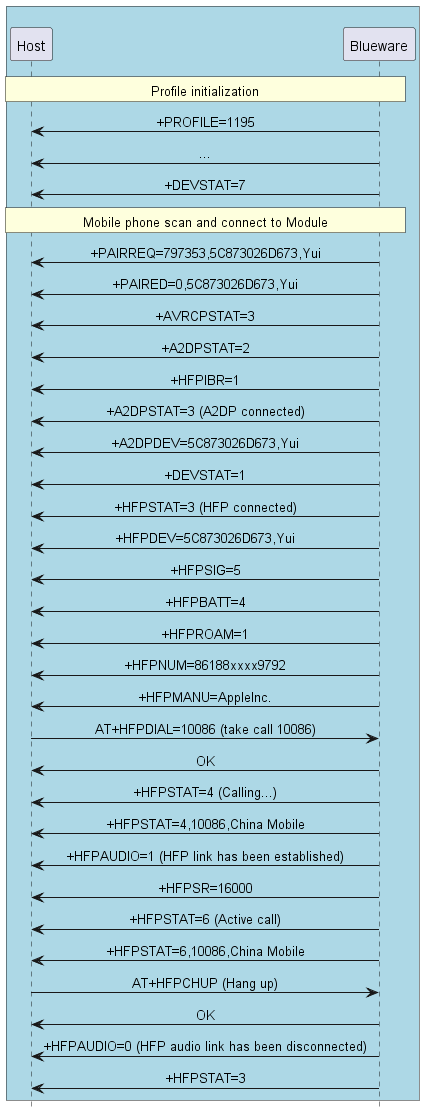

Profile connect, take and Hang up Call

@startuml hide footbox skinparam sequenceMessageAlign center box #LightBlue participant Host as host participant Blueware as bt end box rnote over host, bt: Profile initialization bt -> host: +PROFILE=1195 bt -> host: ... bt -> host: +DEVSTAT=7 rnote over host, bt: Mobile phone scan and connect to Module bt -> host: +PAIRREQ=797353,5C873026D673,Yui bt -> host: +PAIRED=0,5C873026D673,Yui bt -> host: +AVRCPSTAT=3 bt -> host: +A2DPSTAT=2 bt -> host: +HFPIBR=1 bt -> host: +A2DPSTAT=3 (A2DP connected) bt -> host: +A2DPDEV=5C873026D673,Yui bt -> host: +DEVSTAT=1 bt -> host: +HFPSTAT=3 (HFP connected) bt -> host: +HFPDEV=5C873026D673,Yui bt -> host: +HFPSIG=5 bt -> host: +HFPBATT=4 bt -> host: +HFPROAM=1 bt -> host: +HFPNUM=86188xxxx9792 bt -> host: +HFPMANU=AppleInc. host -> bt: AT+HFPDIAL=10086 (take call 10086) bt -> host: OK bt -> host: +HFPSTAT=4 (Calling...) bt -> host: +HFPSTAT=4,10086,China Mobile bt -> host: +HFPAUDIO=1 (HFP link has been established) bt -> host: +HFPSR=16000 bt -> host: +HFPSTAT=6 (Active call) bt -> host: +HFPSTAT=6,10086,China Mobile host -> bt: AT+HFPCHUP (Hang up) bt -> host: OK bt -> host: +HFPAUDIO=0 (HFP audio link has been disconnected) bt -> host: +HFPSTAT=3

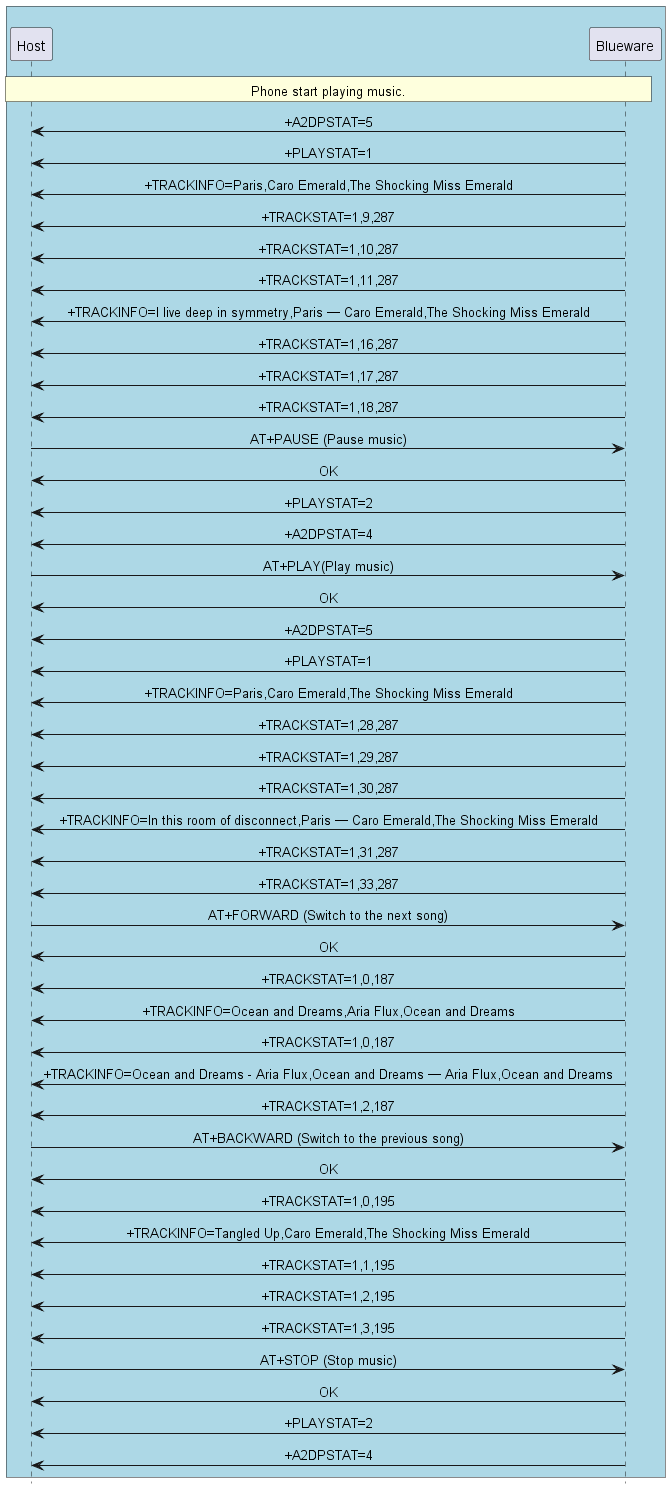

Music Play, Stop, and Track Switching

@startuml hide footbox skinparam sequenceMessageAlign center box #LightBlue participant Host as host participant Blueware as bt end box rnote over host, bt: Phone start playing music. bt -> host: +A2DPSTAT=5 bt -> host: +PLAYSTAT=1 bt -> host: +TRACKINFO=Paris,Caro Emerald,The Shocking Miss Emerald bt -> host: +TRACKSTAT=1,9,287 bt -> host: +TRACKSTAT=1,10,287 bt -> host: +TRACKSTAT=1,11,287 bt -> host: +TRACKINFO=I live deep in symmetry,Paris — Caro Emerald,The Shocking Miss Emerald bt -> host: +TRACKSTAT=1,16,287 bt -> host: +TRACKSTAT=1,17,287 bt -> host: +TRACKSTAT=1,18,287 host -> bt: AT+PAUSE (Pause music) bt -> host: OK bt -> host: +PLAYSTAT=2 bt -> host: +A2DPSTAT=4 host -> bt: AT+PLAY(Play music) bt -> host: OK bt -> host: +A2DPSTAT=5 bt -> host: +PLAYSTAT=1 bt -> host: +TRACKINFO=Paris,Caro Emerald,The Shocking Miss Emerald bt -> host: +TRACKSTAT=1,28,287 bt -> host: +TRACKSTAT=1,29,287 bt -> host: +TRACKSTAT=1,30,287 bt -> host: +TRACKINFO=In this room of disconnect,Paris — Caro Emerald,The Shocking Miss Emerald bt -> host: +TRACKSTAT=1,31,287 bt -> host: +TRACKSTAT=1,33,287 host -> bt: AT+FORWARD (Switch to the next song) bt -> host: OK bt -> host: +TRACKSTAT=1,0,187 bt -> host: +TRACKINFO=Ocean and Dreams,Aria Flux,Ocean and Dreams bt -> host: +TRACKSTAT=1,0,187 bt -> host: +TRACKINFO=Ocean and Dreams - Aria Flux,Ocean and Dreams — Aria Flux,Ocean and Dreams bt -> host: +TRACKSTAT=1,2,187 host -> bt: AT+BACKWARD (Switch to the previous song) bt -> host: OK bt -> host: +TRACKSTAT=1,0,195 bt -> host: +TRACKINFO=Tangled Up,Caro Emerald,The Shocking Miss Emerald bt -> host: +TRACKSTAT=1,1,195 bt -> host: +TRACKSTAT=1,2,195 bt -> host: +TRACKSTAT=1,3,195 host -> bt: AT+STOP (Stop music) bt -> host: OK bt -> host: +PLAYSTAT=2 bt -> host: +A2DPSTAT=4 @enduml

Source Mode Application

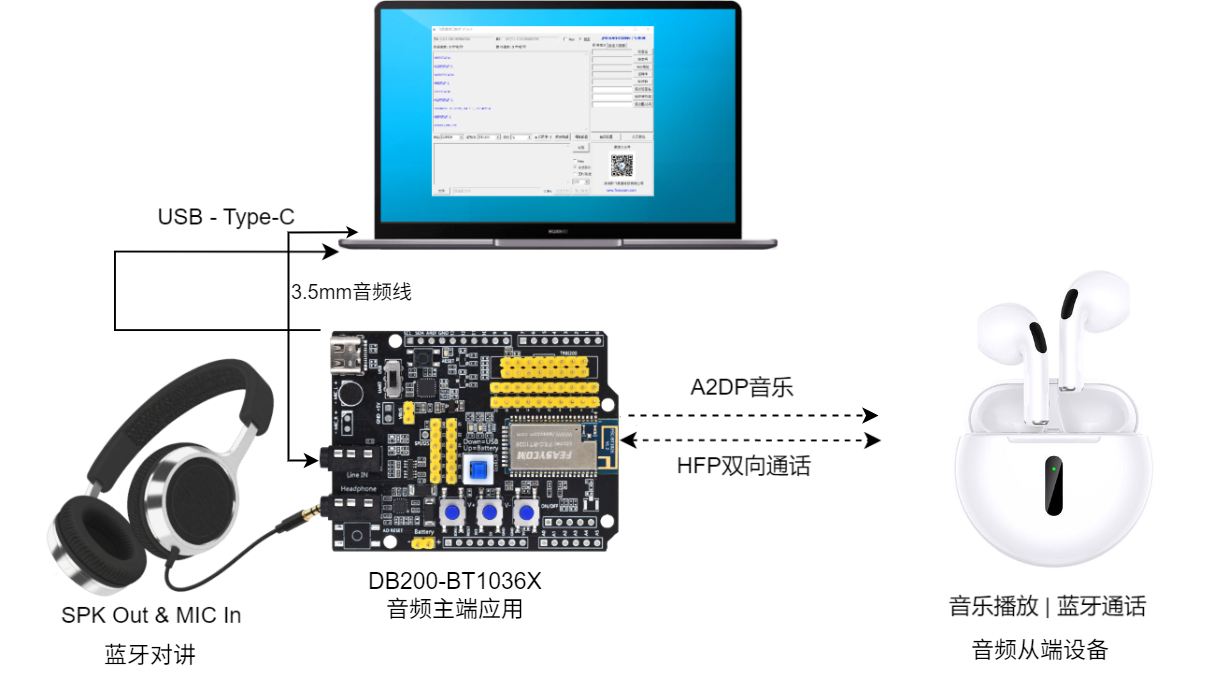

Application Scenarios

../_images/db200-bt1036-audio-tx-200dpi.png

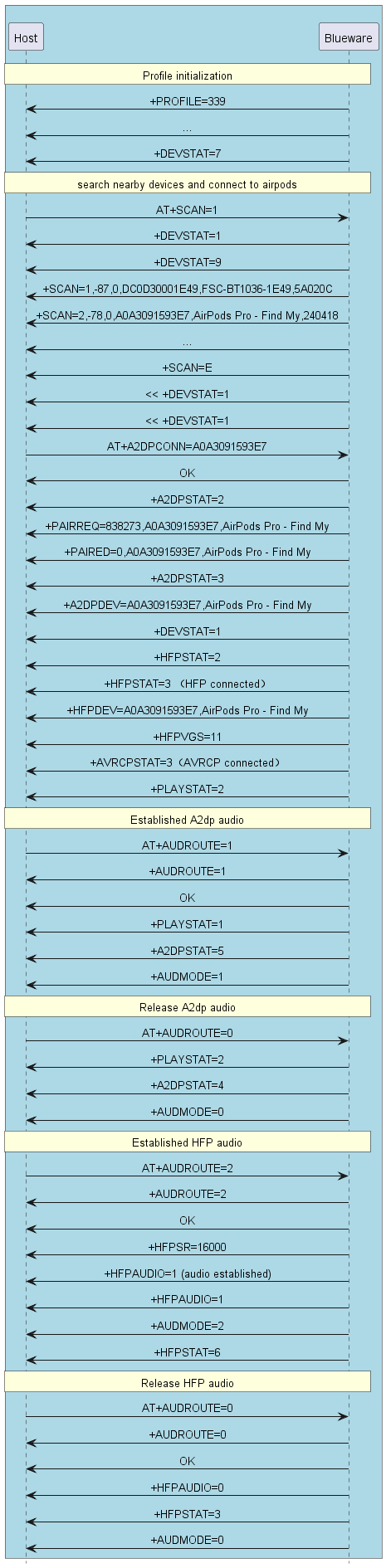

Application Examples

Note

The default profile for FSC-BT1036C is 339, which enables both the classic Bluetooth audio transmission function and SPP, GATT_Server.

The module is set to analog input by default. If you need to use I2S input, please refer to the instruction AT+I2SCFG. After configuring I2S, you need to restart the device for the settings to take effect.

@startuml hide footbox skinparam sequenceMessageAlign center box #LightBlue participant Host as host participant Blueware as bt end box rnote over host, bt: Profile initialization bt -> host: +PROFILE=339 bt -> host: ... bt -> host: +DEVSTAT=7 rnote over host, bt: search nearby devices and connect to airpods host -> bt: AT+SCAN=1 bt -> host: +DEVSTAT=1 bt -> host: +DEVSTAT=9 bt -> host: +SCAN=1,-87,0,DC0D30001E49,FSC-BT1036-1E49,5A020C bt -> host: +SCAN=2,-78,0,A0A3091593E7,AirPods Pro - Find My,240418 bt -> host: ... bt -> host: +SCAN=E bt -> host: << +DEVSTAT=1 bt -> host: << +DEVSTAT=1 host -> bt: AT+A2DPCONN=A0A3091593E7 bt -> host: OK bt -> host: +A2DPSTAT=2 bt -> host: +PAIRREQ=838273,A0A3091593E7,AirPods Pro - Find My bt -> host: +PAIRED=0,A0A3091593E7,AirPods Pro - Find My bt -> host: +A2DPSTAT=3 bt -> host: +A2DPDEV=A0A3091593E7,AirPods Pro - Find My bt -> host: +DEVSTAT=1 bt -> host: +HFPSTAT=2 bt -> host: +HFPSTAT=3 （HFP connected） bt -> host: +HFPDEV=A0A3091593E7,AirPods Pro - Find My bt -> host: +HFPVGS=11 bt -> host: +AVRCPSTAT=3（AVRCP connected） bt -> host: +PLAYSTAT=2 rnote over host, bt: Established A2dp audio host -> bt: AT+AUDROUTE=1 bt -> host: +AUDROUTE=1 bt -> host: OK bt -> host: +PLAYSTAT=1 bt -> host: +A2DPSTAT=5 bt -> host: +AUDMODE=1 rnote over host, bt: Release A2dp audio host -> bt: AT+AUDROUTE=0 bt -> host: +PLAYSTAT=2 bt -> host: +A2DPSTAT=4 bt -> host: +AUDMODE=0 rnote over host, bt: Established HFP audio host -> bt: AT+AUDROUTE=2 bt -> host: +AUDROUTE=2 bt -> host: OK bt -> host: +HFPSR=16000 bt -> host: +HFPAUDIO=1 (audio established) bt -> host: +HFPAUDIO=1 bt -> host: +AUDMODE=2 bt -> host: +HFPSTAT=6 rnote over host, bt: Release HFP audio host -> bt: AT+AUDROUTE=0 bt -> host: +AUDROUTE=0 bt -> host: OK bt -> host: +HFPAUDIO=0 bt -> host: +HFPSTAT=3 bt -> host: +AUDMODE=0 @enduml

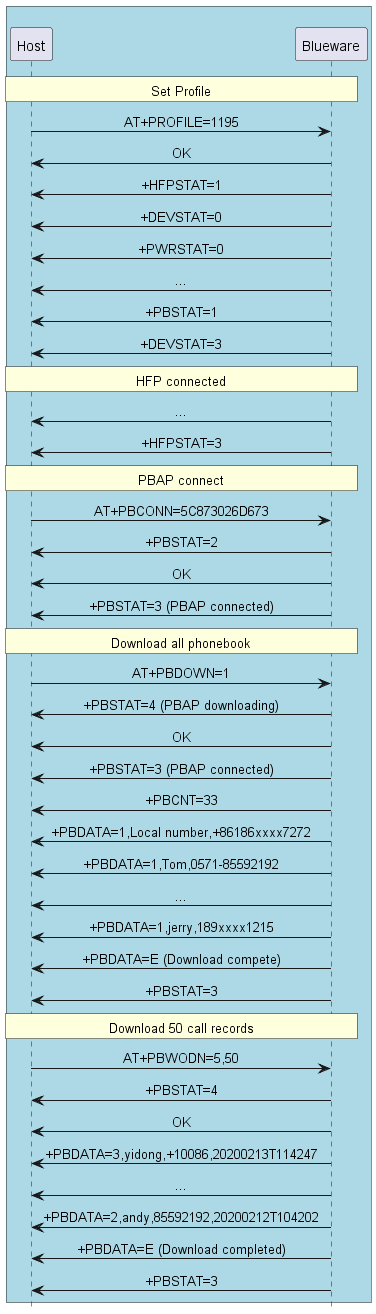

Phonebook Download

Note

For some firmware versions of SOC audio modules, automatic connection to PBAP (Phone Book Access Profile) is not supported when downloading contacts. You need to first send the AT command AT+PBCONN to establish a PBAP connection before proceeding with the download.

@startuml hide footbox skinparam sequenceMessageAlign center box #LightBlue participant Host as host participant Blueware as bt end box rnote over host, bt: Set Profile host -> bt: AT+PROFILE=1195 bt -> host: OK bt -> host: +HFPSTAT=1 bt -> host: +DEVSTAT=0 bt -> host: +PWRSTAT=0 bt -> host: ... bt -> host: +PBSTAT=1 bt -> host: +DEVSTAT=3 rnote over host, bt: HFP connected bt -> host: ... bt -> host: +HFPSTAT=3 rnote over host, bt: PBAP connect host -> bt: AT+PBCONN=5C873026D673 bt -> host: +PBSTAT=2 bt -> host: OK bt -> host: +PBSTAT=3 (PBAP connected) rnote over host, bt: Download all phonebook host -> bt: AT+PBDOWN=1 bt -> host: +PBSTAT=4 (PBAP downloading) bt -> host: OK bt -> host: +PBSTAT=3 (PBAP connected) bt -> host: +PBCNT=33 bt -> host: +PBDATA=1,Local number,+86186xxxx7272 bt -> host: +PBDATA=1,Tom,0571-85592192 bt -> host: ... bt -> host: +PBDATA=1,jerry,189xxxx1215 bt -> host: +PBDATA=E (Download compete) bt -> host: +PBSTAT=3 rnote over host, bt: Download 50 call records host -> bt: AT+PBWODN=5,50 bt -> host: +PBSTAT=4 bt -> host: OK bt -> host: +PBDATA=3,yidong,+10086,20200213T114247 bt -> host: ... bt -> host: +PBDATA=2,andy,85592192,20200212T104202 bt -> host: +PBDATA=E (Download completed) bt -> host: +PBSTAT=3 @enduml
