Development Examples

[中文版]

Profile Initialization

Module Profile initialization, response event examples are as follows:

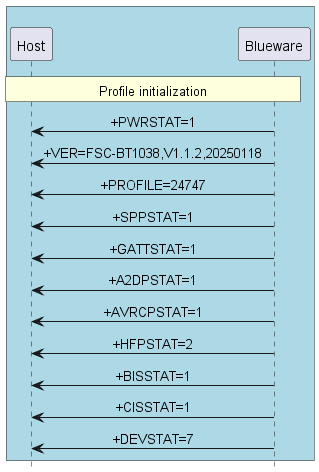

@startuml hide footbox skinparam sequenceMessageAlign center box #LightBlue participant Host as host participant Blueware as bt end box rnote over host, bt: Profile initialization bt -> host: +PWRSTAT=1 bt -> host: +VER=FSC-BT1038,V1.1.2,20250118 bt -> host: +PROFILE=24747 bt -> host: +SPPSTAT=1 bt -> host: +GATTSTAT=1 bt -> host: +A2DPSTAT=1 bt -> host: +AVRCPSTAT=1 bt -> host: +HFPSTAT=2 bt -> host: +BISSTAT=1 bt -> host: +CISSTAT=1 bt -> host: +DEVSTAT=7 @enduml

Parameter Modification

Modify Bluetooth Name

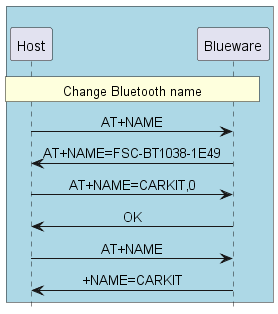

@startuml hide footbox skinparam sequenceMessageAlign center box #LightBlue participant Host as host participant Blueware as bt end box rnote over host, bt: Change Bluetooth name host -> bt: AT+NAME bt -> host: AT+NAME=FSC-BT1038-1E49 host -> bt: AT+NAME=CARKIT,0 bt -> host: OK host -> bt: AT+NAME bt -> host: +NAME=CARKIT @enduml

Before the MCU modifies any parameters, it is recommended to first query, then modify, and finally verify. For the MCU to modify the device name to CARKIT, the reference code example is as follows:

void change_name(void)
{

    uart_send("AT+NAME\r\n");
    if(uart_read("+NAME",name_buf))
    {
        if(memcmp(name_buf,"CARKIT",6))
        {
            uart_send("AT+NAME=CARKIT,0\r\n");  //defalut disable MAC address suffix
            uart_send("AT+NAME\r\n"); // read bt name
            if(uart_read("+NAME",name_buf))
            {
                if(memcmp(name_buf,"CARKIT",6))
                {
                    //change name fail
                }
                else
                {
                    //change name success
                }
            }
        }
    }
}

Classic Auido Sink Mode Application

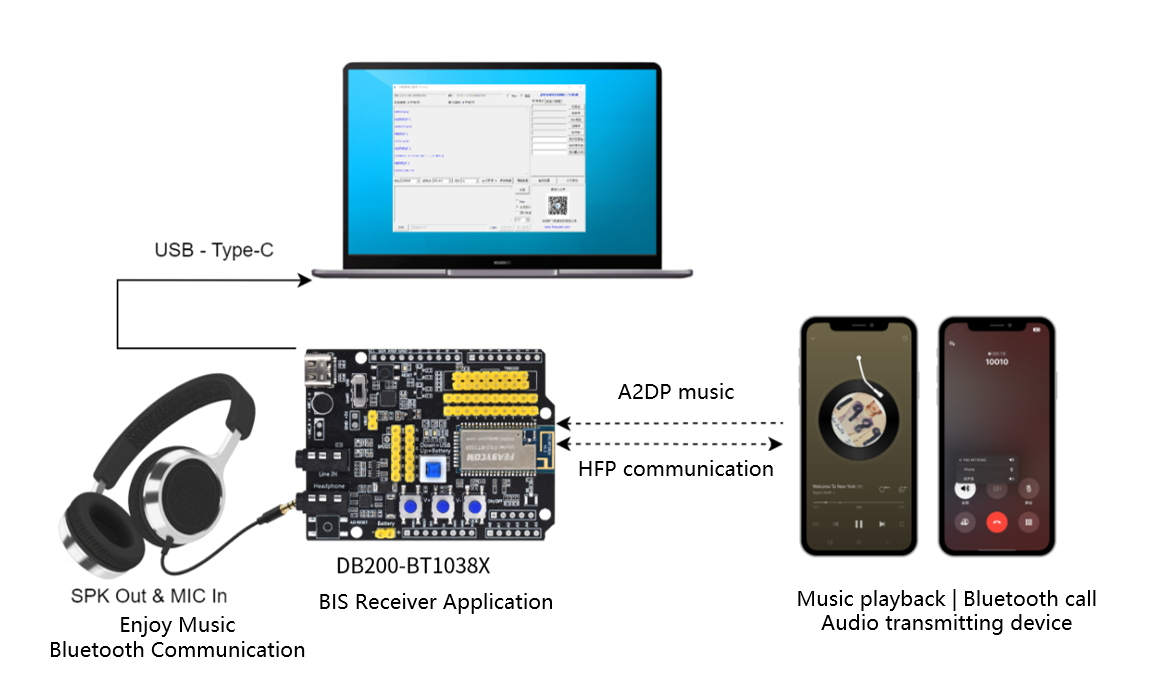

Application Scenarios

../_images/db200-bt1038x-audio-rx-200dpi.png

Application Examples

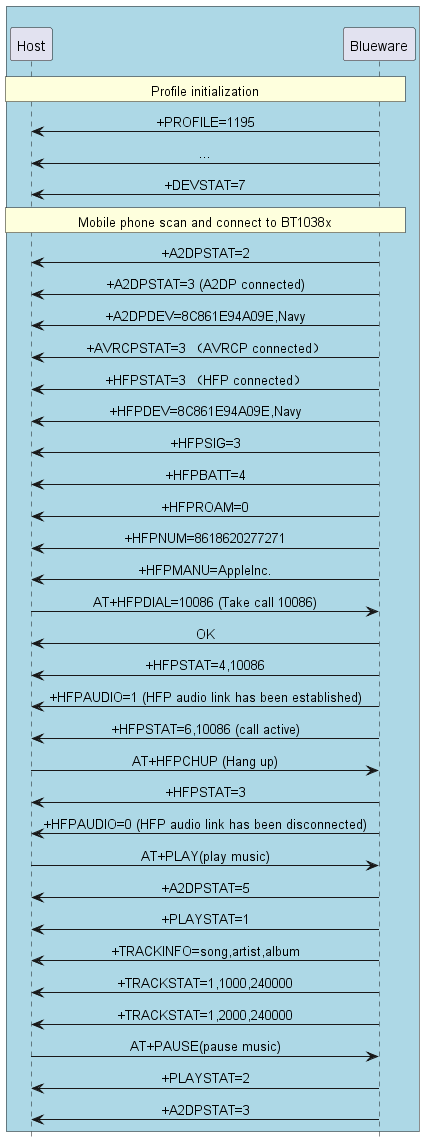

@startuml hide footbox skinparam sequenceMessageAlign center box #LightBlue participant Host as host participant Blueware as bt end box rnote over host, bt: Profile initialization bt -> host: +PROFILE=1195 bt -> host: ... bt -> host: +DEVSTAT=7 rnote over host, bt: Mobile phone scan and connect to BT1038x bt -> host: +A2DPSTAT=2 bt -> host: +A2DPSTAT=3 (A2DP connected) bt -> host: +A2DPDEV=8C861E94A09E,Navy bt -> host: +AVRCPSTAT=3 （AVRCP connected） bt -> host: +HFPSTAT=3 （HFP connected） bt -> host: +HFPDEV=8C861E94A09E,Navy bt -> host: +HFPSIG=3 bt -> host: +HFPBATT=4 bt -> host: +HFPROAM=0 bt -> host: +HFPNUM=8618620277271 bt -> host: +HFPMANU=AppleInc. host -> bt: AT+HFPDIAL=10086 (Take call 10086) bt -> host: OK bt -> host: +HFPSTAT=4,10086 bt -> host: +HFPAUDIO=1 (HFP audio link has been established) bt -> host: +HFPSTAT=6,10086 (call active) host -> bt: AT+HFPCHUP (Hang up) bt -> host: +HFPSTAT=3 bt -> host: +HFPAUDIO=0 (HFP audio link has been disconnected) host -> bt: AT+PLAY(play music) bt -> host: +A2DPSTAT=5 bt -> host: +PLAYSTAT=1 bt -> host: +TRACKINFO=song,artist,album bt -> host: +TRACKSTAT=1,1000,240000 bt -> host: +TRACKSTAT=1,2000,240000 host -> bt: AT+PAUSE(pause music) bt -> host: +PLAYSTAT=2 bt -> host: +A2DPSTAT=3 @enduml

LE Audio Broadcast Application

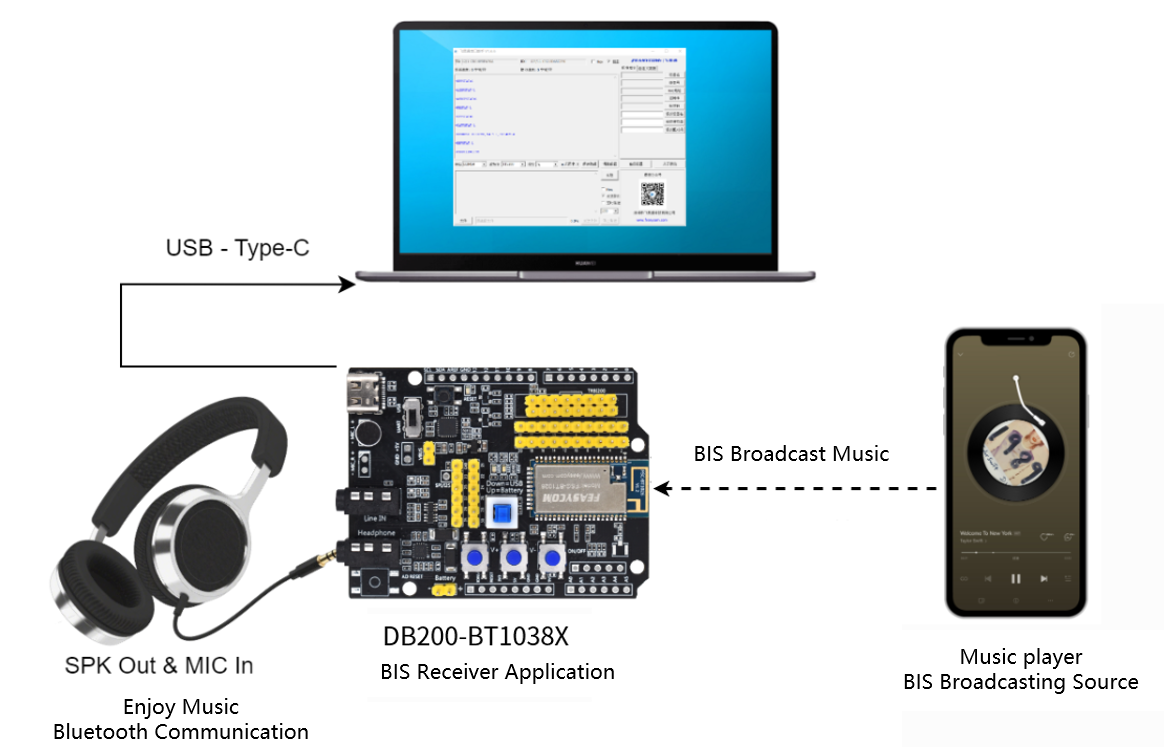

Application Scenarios

../_images/db200-bt1038x-audio-bisrx-200dpi.png

Application Examples

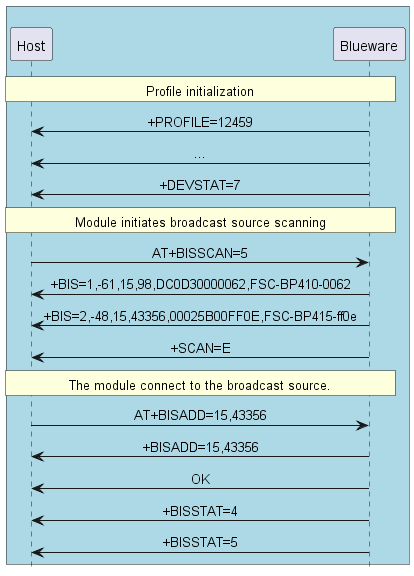

@startuml hide footbox skinparam sequenceMessageAlign center box #LightBlue participant Host as host participant Blueware as bt end box rnote over host, bt: Profile initialization bt -> host: +PROFILE=1195 bt -> host: ... bt -> host: +DEVSTAT=7 rnote over host, bt: Module initiates broadcast source scanning host -> bt: AT+BISSCAN=5 bt -> host: +BIS=1,-61,15,98,DC0D30000062,FSC-BP410-0062 bt -> host: +BIS=2,-48,15,43356,00025B00FF0E,FSC-BP415-ff0e bt -> host: +SCAN=E rnote over host, bt: The module connect to the broadcast source. host -> bt: AT+BISADD=15,43356 bt -> host: +BISADD=15,43356 bt -> host: OK bt -> host: +BISSTAT=4 bt -> host: +BISSTAT=5 @enduml

Phonebook Download

Note

For some firmware versions of SOC audio modules, automatic connection to PBAP (Phone Book Access Profile) is not supported when downloading contacts. You need to first send the AT command AT+PBCONN to establish a PBAP connection before proceeding with the download.

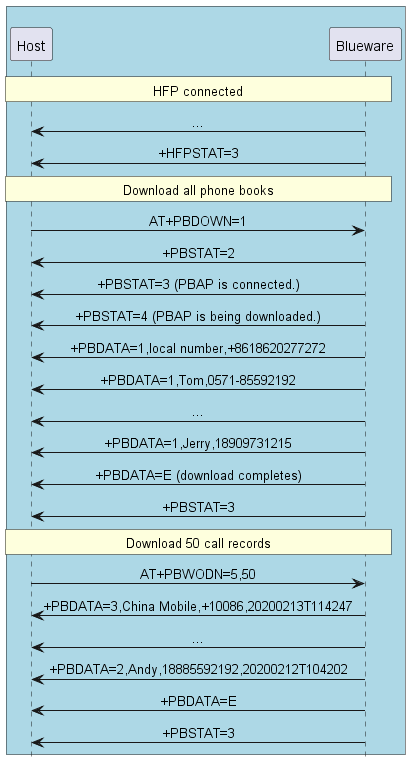

@startuml hide footbox skinparam sequenceMessageAlign center box #LightBlue participant Host as host participant Blueware as bt end box rnote over host, bt: HFP connected bt -> host: ... bt -> host: +HFPSTAT=3 rnote over host, bt: Download all phone books host -> bt: AT+PBDOWN=1 bt -> host: +PBSTAT=2 bt -> host: +PBSTAT=3 (PBAP is connected.) bt -> host: +PBSTAT=4 (PBAP is being downloaded.) bt -> host: +PBDATA=1,local number,+8618620277272 bt -> host: +PBDATA=1,Tom,0571-85592192 bt -> host: ... bt -> host: +PBDATA=1，jerry，18909731215 bt -> host: +PBDATA=E (download completes) bt -> host: +PBSTAT=3 rnote over host, bt: Download 50 call records host -> bt: AT+PBWODN=5,50 bt -> host: +PBDATA=3，yidong，+10086，20200213T114247 bt -> host: ... bt -> host: +PBDATA=2，andy，85592192，20200212T104202 bt -> host: +PBDATA=E bt -> host: +PBSTAT=3 @enduml
