0Hardware Design

[中文版]

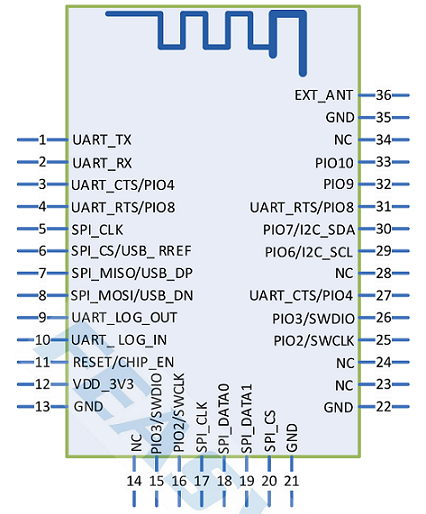

Module Pin Diagram

Pin diagram with FSC-BW236:

bw236_pin_map

Pin Description

Pin

Pin Name

Type

Descriptions

1

UART_TX

O

UART Data output

2

UART_RX

I

UART Data input

3

UART_CTS

I

UART clear to send (active low)

4

UART_RTS

O

UART request to send (active low)

9

UART_LOG_OUT

O

Debugging interface (Data OUT)

10

UART_LOG_IN

I

Debugging interface (Data IN)

11

RESET/CHIP_EN

I/O

External reset input, active low.
Set this pin low reset the module.
(With internal pull-up 100K resistor)

12

VDD_3V3

VDD

Power supply voltage 3.3V

13

GND

VSS

Power Ground

21

GND

VSS

Power Ground

22

GND

VSS

Power Ground

32

LED0

I/O

Bluetooth is connected to output high

33

LED1

I/O

Wi-Fi is connected to output high level

35

GND

VSS

RF Ground

36

EXT_ANT

O

RF signal output

Note: This section provides brief I/O pin descriptions. For detailed descriptions and precautions, please refer to FSC-BW236 Datasheet .

Hardware Interface

  • GPIO

  • PWM

  • UART

  • SPI SLAVE

Hardware Design Note

  • The simple test of the module only requires connecting VDD/GND/UART_RX/UART_TX to be used

  • After drawing the schematic diagram, please send it to Feasycom for review to avoid the Bluetooth or Wi-Fi distance not achieving the best effect
