Quick Start

[中文版]

What you need

Required Hardware

  • 1 x FSC-DB005-HC05 Rapid Development Kit : FSC-DB005 USB-to-Serial Rapid Evaluation Board pre-integrated with FSC-HC05 module (Take FSC-BT836B an example) .

  • 1 x PC (Windows / Mac)

Software and Setup

  • Feasycom Serial Port Tool : A serial port communication analysis tool based on Windows PC.

  • Communication Interface : UART

  • UART Configuration：115200/8/N/1

Hardware Access

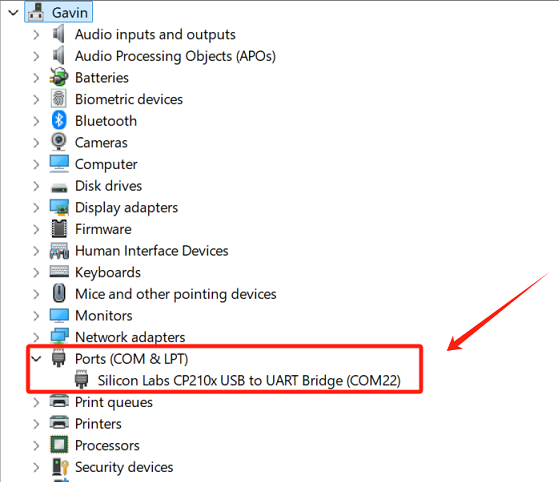

1.Connect the FSC-DB005-HC05 to the PC via USB. The PC will automatically recognize the serial port and create a virtual COM port.

hc05-pc-comx

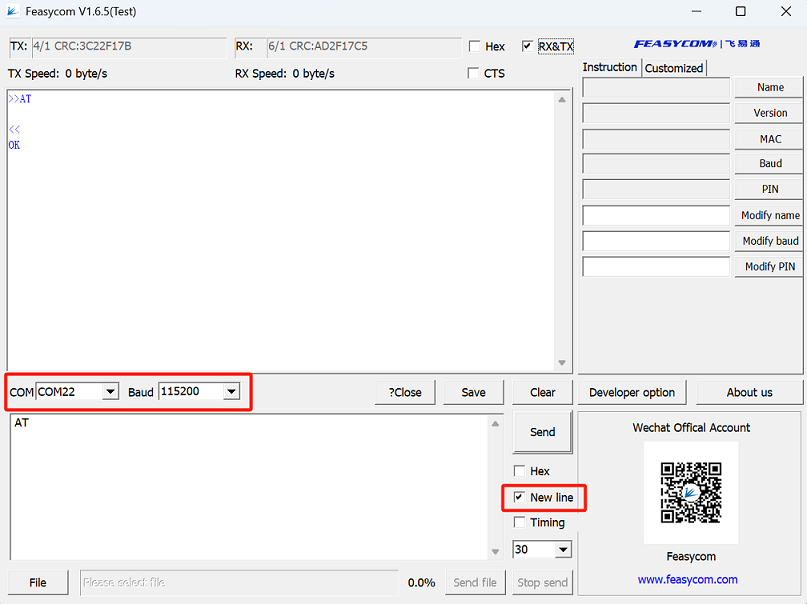

2.Run the Feasycom Serial Port Tool on the PC, set the correct COM and Baud, and check the New Line.

hc05-at

Communication Test

The following are several basic general AT command test examples.

For more AT commands, please refer to FSC-HC05 General Data AT Command Set .

AT - UART Communication Test

Command

AT\r\n

Response

\r\nOK\r\n

Description

Test the UART communication between HOST and Module after power on, baudrate changed, etc.

Example:

send:     >>AT\r\n
response: <<\r\nOK\r\n   //Successfully connected.

AT+NAME - Read/Write Local BR/EDR Name

Example: Read BR/EDR Name

send:     <<AT+NAME\r\n
response: >>\r\n+NAME=FSC-HC05\r\n   //Example, please refer to the actual reading result
response: >>\r\nOK\r\n

AT+VER - Read Current Firmware Version

Example: Read Current Firmware Version

send:     <<AT+VER\r\n
response: >>\r\n+VER=1.0.0,FSC-HC05\r\n     //Example, please refer to the actual reading result
response: >>\r\nOK\r\n
