Development Examples

[中文版]

Bluetooth Networking

FeasyBlue Bluetooth Networking

APP Download

Networking Guide

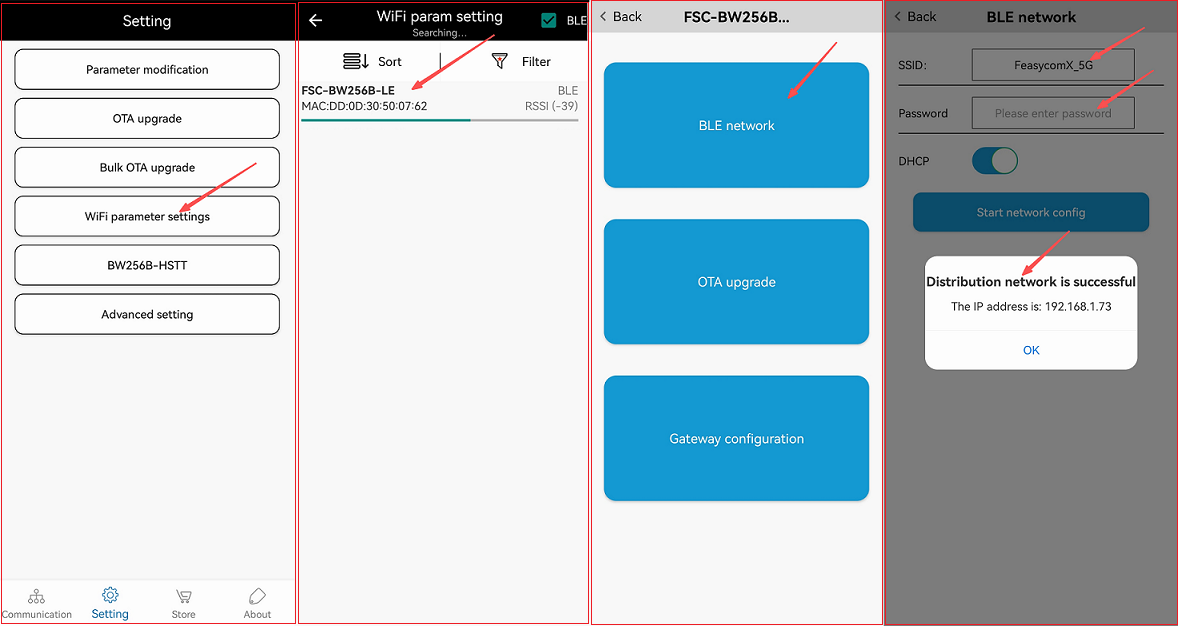

  1. Open the FeasyBlue app and click on Settings - WiFi Parameter Settings in sequence.

  2. Check BLE in the upper right corner of the application interface, scan and select the Bluetooth device BW256B you want to upgrade.

  3. Select and click on Bluetooth Distribution Network - In the pop-up SSID 和 Password window, enter the SSID 和 password of the Wi-Fi AP to be connected, and click Start Distribution Network. After the distribution network is completed, It will display the successful network distribution and the obtained IP address .

../_images/bw256b-bt-network-en.png

Data Throughput Mode Application

What Is Throughput Mode?

FSC-BW256x series Bluetooth & Wi-Fi module features two data transmission modes: Throughput Mode and Command Mode .

The default command mode of the general data transmission application firmware. If you need to switch, you can refer to [FSC-BW256B General Data AT Command Set] , and using the AT+TPMODE command.

The working mechanisms and differences of the two data transmission modes are as follows:

  • Throughput Mode:

Without Bluetooth or Wi-Fi connection ,the data received through the serial port is parsed in the format of AT instructions;

Bluetooth or Wi-Fi connection has been established ,All the data received through the serial port is sent to the remote end as is.

  • Command Mode:

Without Bluetooth or Wi-Fi connection ,The data received through the serial port is parsed in the format of AT instructions;

Bluetooth or Wi-Fi connection has been established ,The data received through the serial port is still parsed in the AT instruction format and needs to be sent to the remote end via AT instructions. For example, when connecting with BLE, use the AT+LESEND command to send data. When establishing a TCP connection, use the AT+WFSEND command to send data.

Switch To Throughput Mode

Enter the Throughput Mode: Before establishing a Bluetooth or Wi-Fi connection, the FSC-BW256B module can use the command AT+TPMODE=1 to activate the transparent transmission mode. The operation example is as follows:

Send：>> AT+TPMODE=1                                         //Set it to transparent transmission mode
Response：<< OK

When Bluetooth or Wi-Fi connection has been established, exit throughput mode:

Send：>> +++          //Send "+++". Note: When operating on the host computer's serial port tool, please uncheck "New Line" at this time.
Response：<< a                 //Received response "a"
Send：>> a                     //Send "a". Note: When operating on the host computer's serial port tool, please uncheck "New Line" at this time.
Response：<< +ok       //Successfully exited

Note

  • Throughput Mode only takes effect when connections (such as Bluetooth, TCP/UDP) have been established. Therefore, the methods to exit transparent transmission also only work under such circumstances. When no connections have been established, you can directly use the AT command (AT+TPMODE) to switch (modes).

  • The data format for sending and receiving mentioned above differs from that of AT commands. Standard AT commands end with <CR><LF> , while the above-mentioned control commands are strings that do not come with <CR><LF>.

Throughput Mode Application

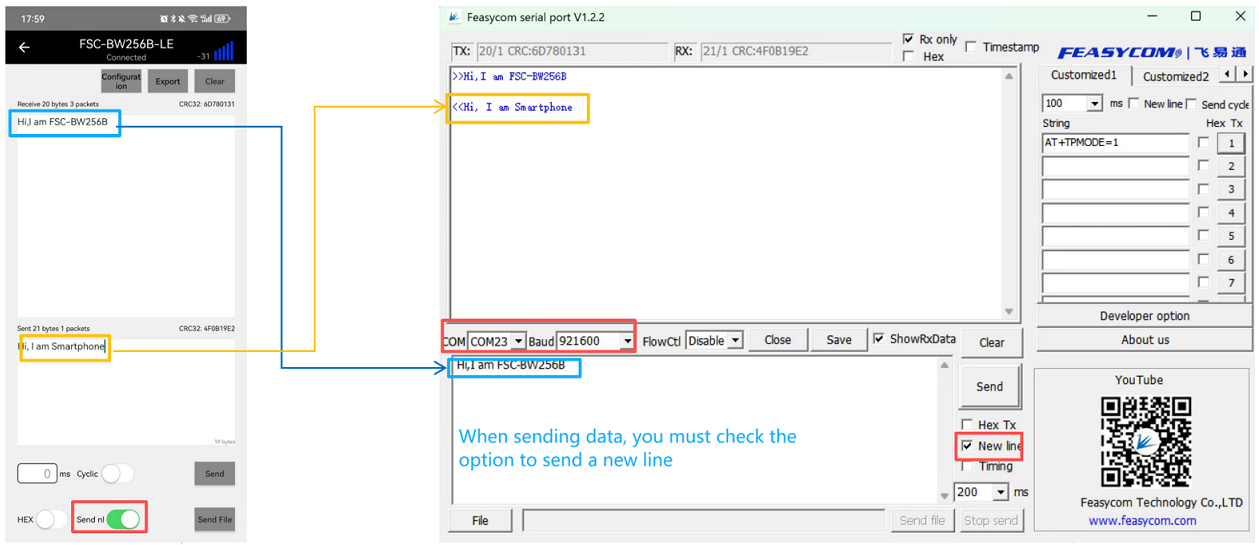

Module to Phone Communication

../_images/bw256-app-com-en.png

TCP Server Application

Tools

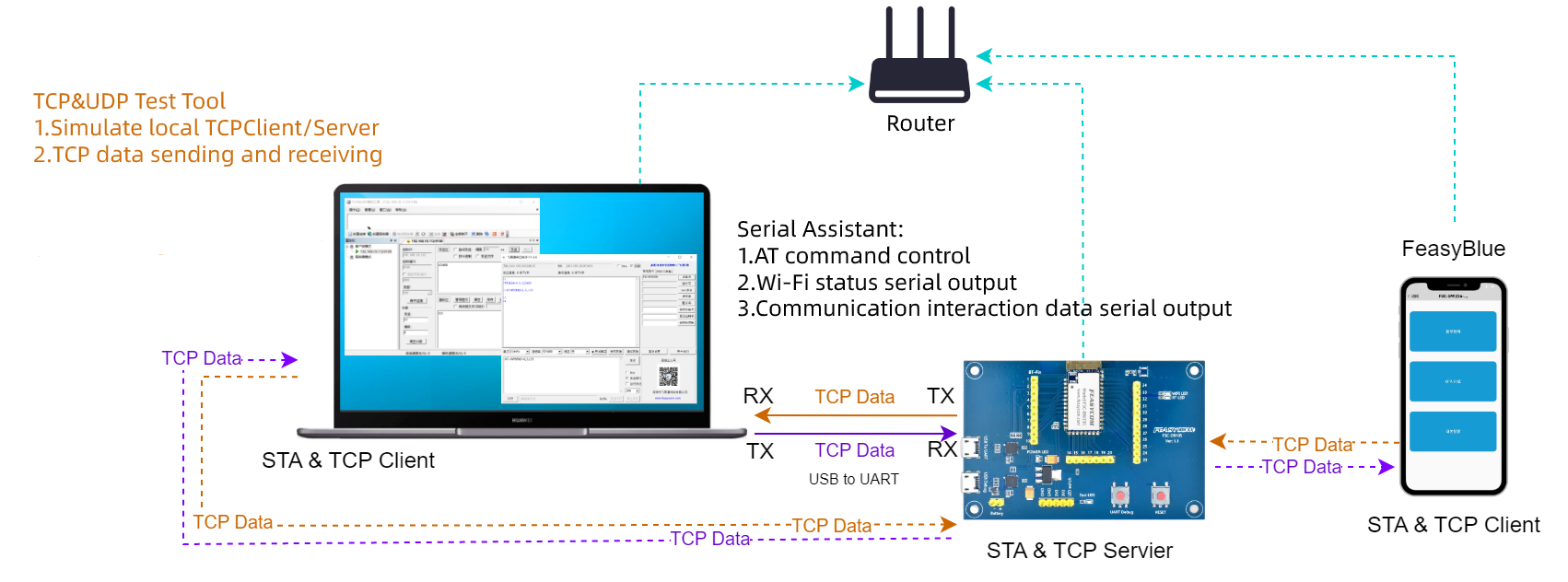

TCP Server Application Block Diagram

../_images/db105-bw256-tcps-200dpi-en.png

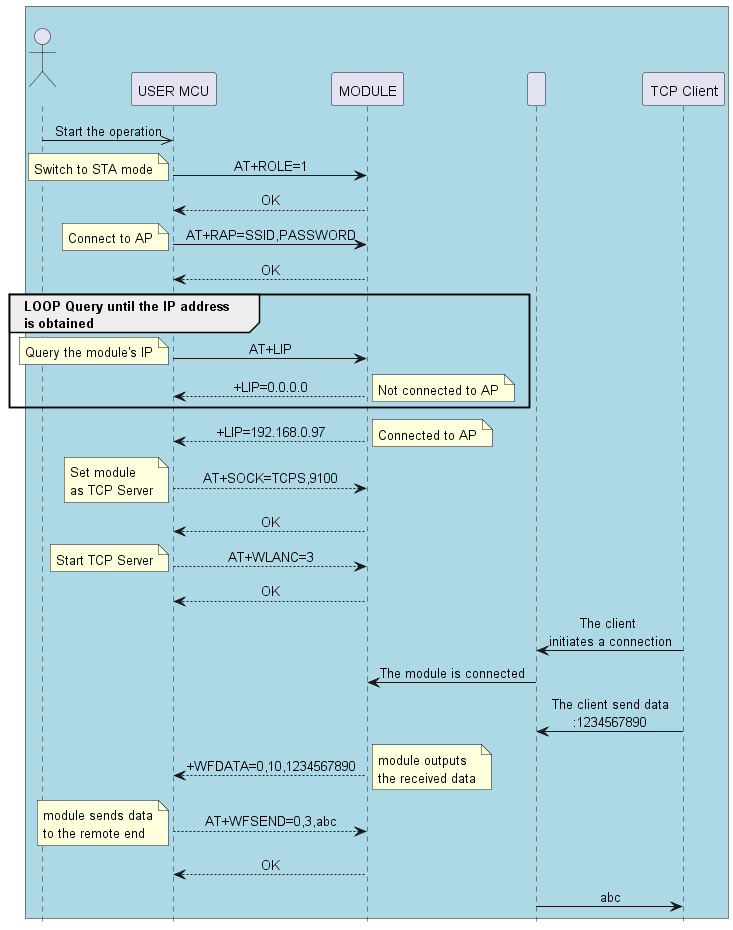

TCP Server Application Flowchart

@startuml hide footbox skinparam sequenceMessageAlign center box #LightBlue actor “ ” as person participant “USER MCU” as mcu participant MODULE as module participant " " as nu participant "TCP Client" as client end box person ->> mcu: Start the operation mcu -> module: AT+ROLE=1 note left Switch to STA mode end note module --> mcu: OK mcu -> module: AT+RAP=SSID,PASSWORD note left Connect to AP end note module --> mcu: OK group LOOP Query until the IP address\nis obtained mcu -> module: AT+LIP note left Query the module's IP end note module --> mcu: +LIP=0.0.0.0 note right Not connected to AP end note end module --> mcu: +LIP=192.168.0.97 note right Connected to AP end note mcu --> module: AT+SOCK=TCPS,9100 note left Set module as TCP Server end note module --> mcu: OK mcu --> module: AT+WLANC=3 note left Start TCP Server end note module --> mcu: OK client -> nu: The client \ninitiates a connection nu -> module: The module is connected client -> nu: The client send data\n:1234567890 module --> mcu: +WFDATA=0,10,1234567890 note right module outputs the received data end note mcu --> module: AT+WFSEND=0,3,abc note left module sends data to the remote end end note module --> mcu: OK nu -> client: abc @enduml

TCP Server Application Example

  1. Set the module to Wi-Fi mode. If it is already in the current mode, you can skip this step. The operation example of the AT command is as follows:

Send：<<AT+ROLE=1
Response：>> OK

  1. The module is connected to the AP hotspot. An example of AT command operation is as follows:

Send：<< AT+RAP=ssid,password
Response： > OK

  1. Query the IP address of the module to confirm that it has been connected to the network. The operation example of the AT command is as follows:

Send：<< AT+LIP
Response：>> +LIP=192.168.0.97  //For local examples, please refer to the actual IP address obtained by connecting to the AP
Response：>> OK

  1. Set the module to TCP server with port 9100. The operation example of the AT command is as follows:

Send：<< AT+SOCK=TCPS,9100
Response：>> OK

  1. To create a TCP server for the module, an example of the AT command operation is as follows:

Send：<< AT+WLANC=3
Response：>> OK

  1. The PC and the module (FSC-BW256B) are connected to the same AP hotspot. On the PC, a third-party network debugging tool is used to create an IP address for the TCP connection to the TCP Server (module) as a TCP client. And after establishing a TCP connection, send TCP data to the TCP Server (module), such as 1234567890

../_images/tcptool-tcpc-en.png

  1. The module receives TCP data sent by the TCP Client. In instruction mode, an example of the received data format serial port response is as follows:

Response：>> +WFDATA=0,10,1234567890   //Supports simultaneously receiving data sent from multiple TCP clients to the TCP Server, with the first parameter being the connection ID
Response：>> +WFDATA=1,10,1234567890
Response：>> +WFDATA=2,10,1234567890

  1. The module supports the simultaneous reception of data sent from multiple TCP clients to the TCP Server. The first parameter is the connection ID. In command mode, an example of the AT command operation is as follows:

Send：<< AT+WFSEND=0,3,abc
Response：>> OK

TCP Client Application

Tools

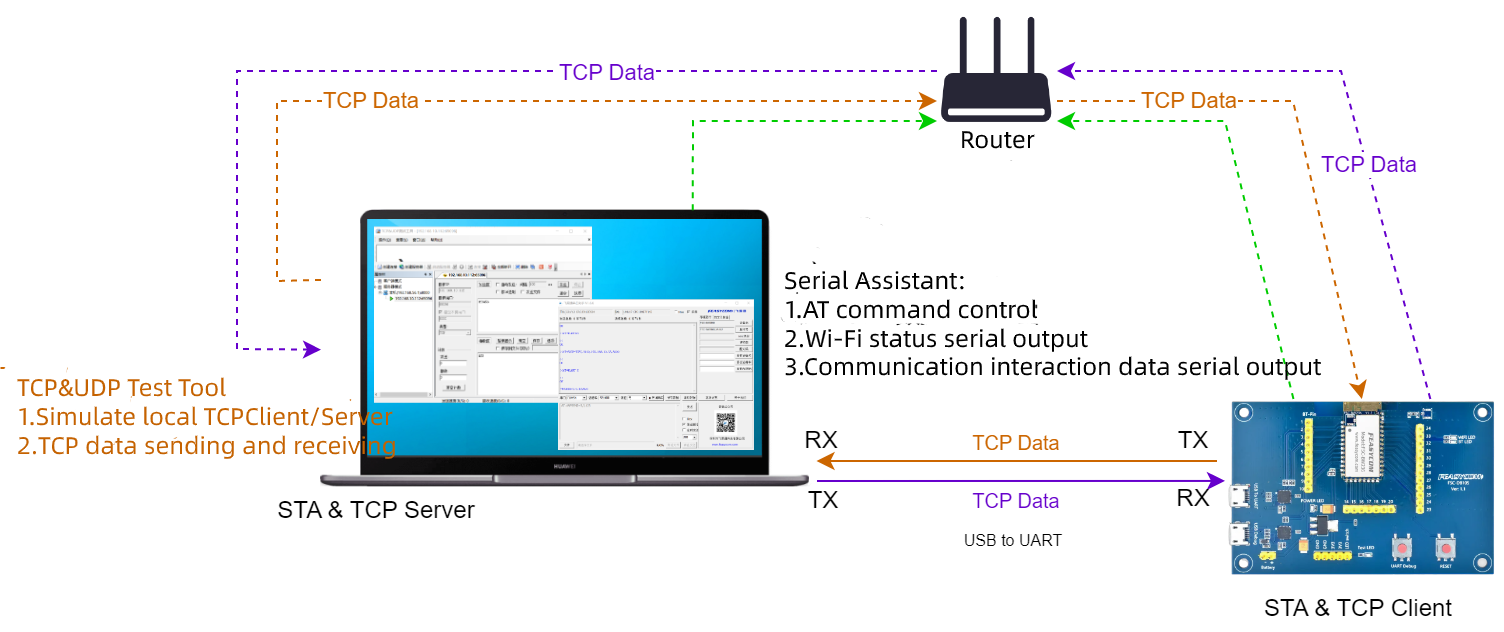

TCP Client application block diagram

../_images/db105-bw256-tcpc-200dpi-en.png

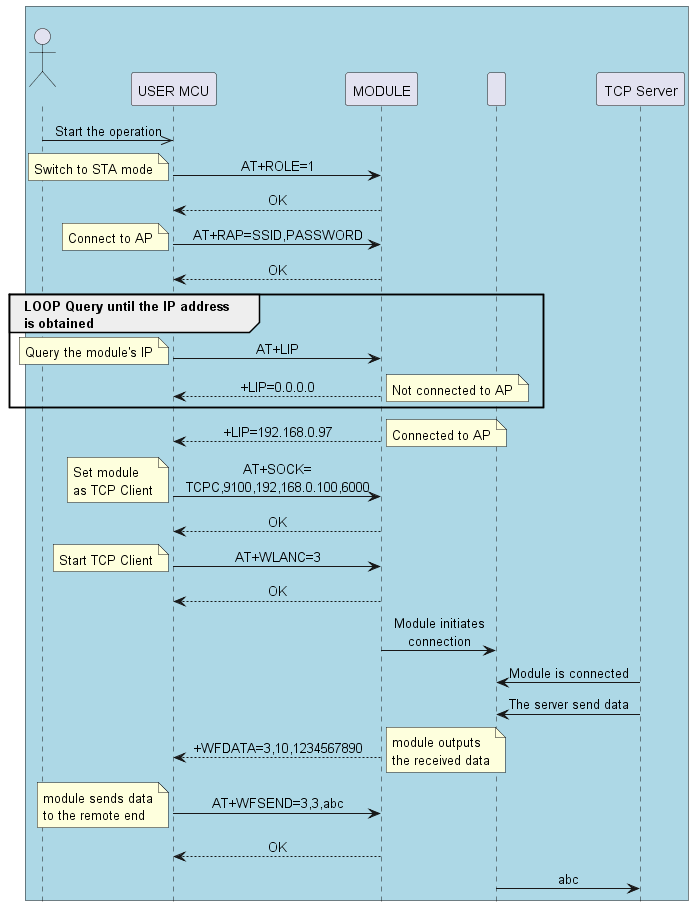

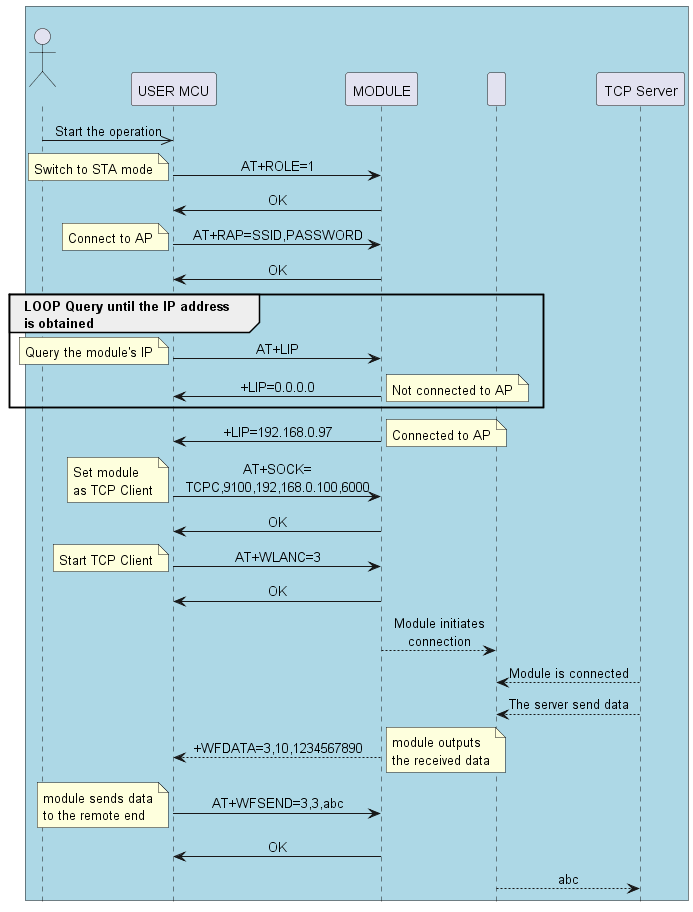

TCP Client Application Flowchart

@startuml hide footbox skinparam sequenceMessageAlign center box #LightBlue actor “ ” as person participant “USER MCU” as mcu participant MODULE as module participant " " as nu participant "TCP Server" as server end box person ->> mcu: Start the operation mcu -> module: AT+ROLE=1 note left Switch to STA mode end note module --> mcu: OK mcu -> module: AT+RAP=SSID,PASSWORD note left Connect to AP end note module --> mcu: OK group LOOP Query until the IP address\nis obtained mcu -> module: AT+LIP note left Query the module's IP end note module --> mcu: +LIP=0.0.0.0 note right Not connected to AP end note end module --> mcu: +LIP=192.168.0.97 note right Connected to AP end note mcu -> module: AT+SOCK=\nTCPC,9100,192,168.0.100,6000 note left Set module as TCP Client end note module --> mcu: OK mcu -> module: AT+WLANC=3 note left Start TCP Client end note module --> mcu: OK module-> nu: Module initiates\nconnection server -> nu: Module is connected server -> nu: The server send data module --> mcu: +WFDATA=3,10,1234567890 note right module outputs the received data end note mcu -> module: AT+WFSEND=3,3,abc note left module sends data to the remote end end note module --> mcu: OK nu -> server: abc @enduml

TCP Server Application Example

  1. Set the module to Wi-Fi mode. If it is already in the current mode, you can skip this step. The operation example of the AT command is as follows:

Send：<< AT+ROLE=1
Response：>> OK

  1. Connect the module to the AP hotspot. The AT command operation example is as follows:

Send：<< AT+RAP=ssid,password
Response：>> OK

  1. To query the IP address of the module, an example of the AT command operation is as follows:

Send：<< AT+LIP
Response：>> +LIP=192.168.0.97   //For local examples, please refer to the actual IP address obtained by connecting to the AP
Response：>> OK

  1. Connect the PC and the module to the same AP hotspot. Use a third-party network debugging tool on the PC to create a TCP Server. For example, the IP address of the TCP Server is 192.168.0.79 and the port number is 8080.

  2. Set the module as TCP client and configure the IP and port number of the remote TCP Server. The operation example of the AT command is as follows:

Send：<< AT+SOCK=TCPC,9100,192.168.0.79,8080
Response：>> OK

  1. The module acts as a TCP client to initiate the establishment of a TCP connection with the remote TCP Server. An example of the AT command operation is as follows:

Send：<< AT+WLANC=3
Response：>> OK

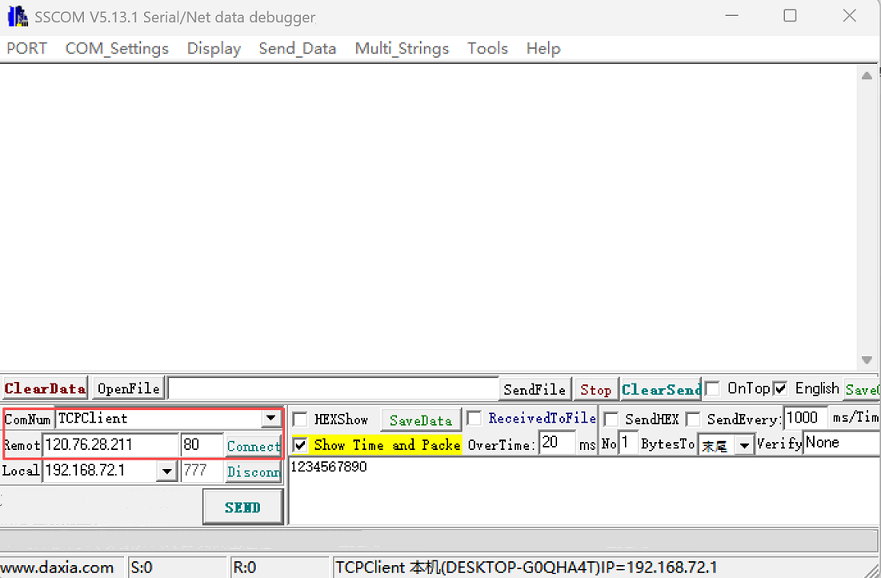

  1. After the TCP connection is successfully established, the PC-end network debugging tool will display the successful connection, as well as the data sending area and receiving area. TCP data sending and receiving can be carried out, such as sending data 1234567890 to the remote TCP Client module

  2. The module receives TCP data sent from the TCP Server. In instruction mode, an example of the received data format response is as follows:

Response：>> +WFDATA=3,10,1234567890

UDP Application

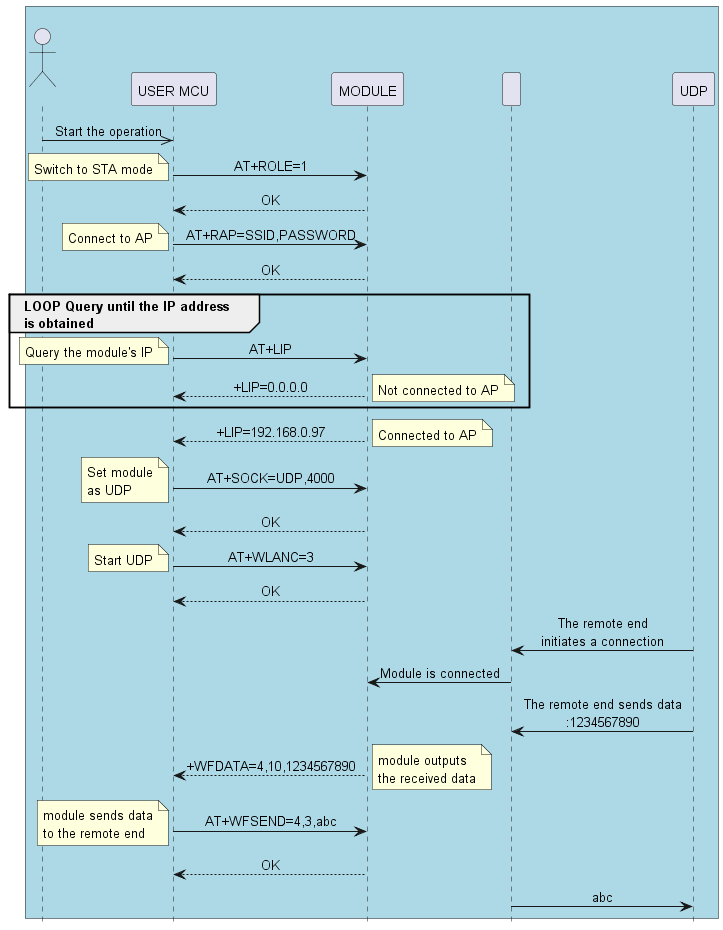

UDP Application Flowchart

@startuml hide footbox skinparam sequenceMessageAlign center box #LightBlue actor “ ” as person participant “USER MCU” as mcu participant MODULE as module participant " " as nu participant "UDP" as udp end box person ->> mcu: Start the operation mcu -> module: AT+ROLE=1 note left Switch to STA mode end note module --> mcu: OK mcu -> module: AT+RAP=SSID,PASSWORD note left Connect to AP end note module --> mcu: OK group LOOP Query until the IP address\nis obtained mcu -> module: AT+LIP note left Query the module's IP end note module --> mcu: +LIP=0.0.0.0 note right Not connected to AP end note end module --> mcu: +LIP=192.168.0.97 note right Connected to AP end note mcu -> module: AT+SOCK=UDP,4000 note left Set module as UDP end note module --> mcu: OK mcu -> module: AT+WLANC=3 note left Start UDP end note module --> mcu: OK udp -> nu: The remote end\ninitiates a connection nu -> module: Module is connected udp -> nu: The remote end sends data\n:1234567890 module --> mcu: +WFDATA=4,10,1234567890 note right module outputs the received data end note mcu -> module: AT+WFSEND=4,3,abc note left module sends data to the remote end end note module --> mcu: OK nu -> udp: abc @enduml

UDP Application Example

  1. Set the Wi-Fi mode. If you are already in the current mode, you can skip this step

Send：<< AT+ROLE=1
Response：>> OK

  1. Connect to AP

Send：<< AT+RAP=ssid,password
Response：>> OK

  1. Query the IP address of the module

Send：<< AT+LIP
Response：>> +LIP=192.168.0.97   //For local examples, please refer to the actual IP address obtained by connecting to the AP
Response：>> OK

  1. Set module as UDP

Send：<< AT+SOCK=UDP,4000
Response：>> OK

  1. Start UDP Server

Send：<< AT+WLANC=3
Response：>> OK

  1. The PC and the module are connected to the same hotspot. On the PC, a network debugging tool is used to start a UDP Client with the target IP 192.168.0.97 and the target port number 4000.

  2. Receive data

Response：>> +WFDATA=4,10,1234567890

  1. Send data

Send：<< AT+WFSEND=4,3,abc
Response：>> OK

Note

  • To use transparent data transmission, simply send “AT+TPMODE=1” before setting the Wi-Fi mode.

SSL Client Application

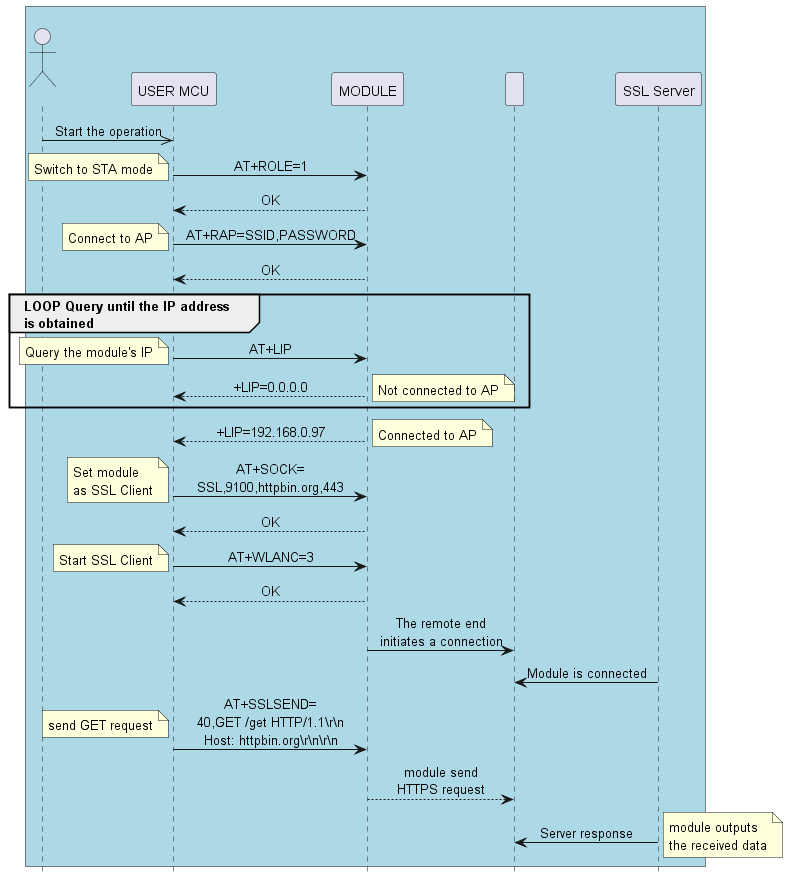

SSL Client Application Flowchart

@startuml hide footbox skinparam sequenceMessageAlign center box #LightBlue actor “ ” as person participant “USER MCU” as mcu participant MODULE as module participant " " as nu participant "SSL Server" as server end box person ->> mcu: Start the operation mcu -> module: AT+ROLE=1 note left Switch to STA mode end note module --> mcu: OK mcu -> module: AT+RAP=SSID,PASSWORD note left Connect to AP end note module --> mcu: OK group LOOP Query until the IP address\nis obtained mcu -> module: AT+LIP note left Query the module's IP end note module --> mcu: +LIP=0.0.0.0 note right Not connected to AP end note end module --> mcu: +LIP=192.168.0.97 note right Connected to AP end note mcu -> module: AT+SOCK=\nSSL,9100,httpbin.org,443 note left Set module as SSL Client end note module --> mcu: OK mcu -> module: AT+WLANC=3 note left Start SSL Client end note module --> mcu: OK module-> nu: The remote end\ninitiates a connection server -> nu: Module is connected mcu -> module: AT+SSLSEND=\n40,GET /get HTTP/1.1\\r\\n\nHost: httpbin.org\\r\\n\\r\\n note left send GET request end note module --> nu: module send\nHTTPS request server -> nu: Server response note right module outputs the received data end note @enduml

SSL Client Application Example

  1. Set the Wi-Fi mode. If you are already in the current mode, you can skip this step

Send：<< AT+ROLE=1
Response：>> OK

  1. Connect to AP

Send：<< AT+RAP=ssid,password
Response：>> OK

  1. Query the IP address of the module

Send：<< AT+LIP
Response：>> +LIP=192.168.0.97   //For local examples, please refer to the actual IP address obtained by connecting to the AP
Response：>> OK

  1. Set the module as SSL client and configure the remote server and port number

Send：<< AT+SOCK=SSL,9100,httpbin.org,443
Response：>> OK

  1. The module initiates a connection to the remote end as an SSL client

Send：<< AT+WLANC=3
Response：>> OK

  1. Send relevant requests, such as GET requests

Send：<< AT+SSLSEND=40,GET /get HTTP/1.1\\r\\nHost: httpbin.org\\r\\n\\r\\n
Response：>> OK

  1. Receive data

Response：>> +SSLDATA=Specific data

Note

  • Note: If you want to use transparent data transmission, just send AT+TPMODE=1 before setting the Wi-Fi mode.

MQTT Application

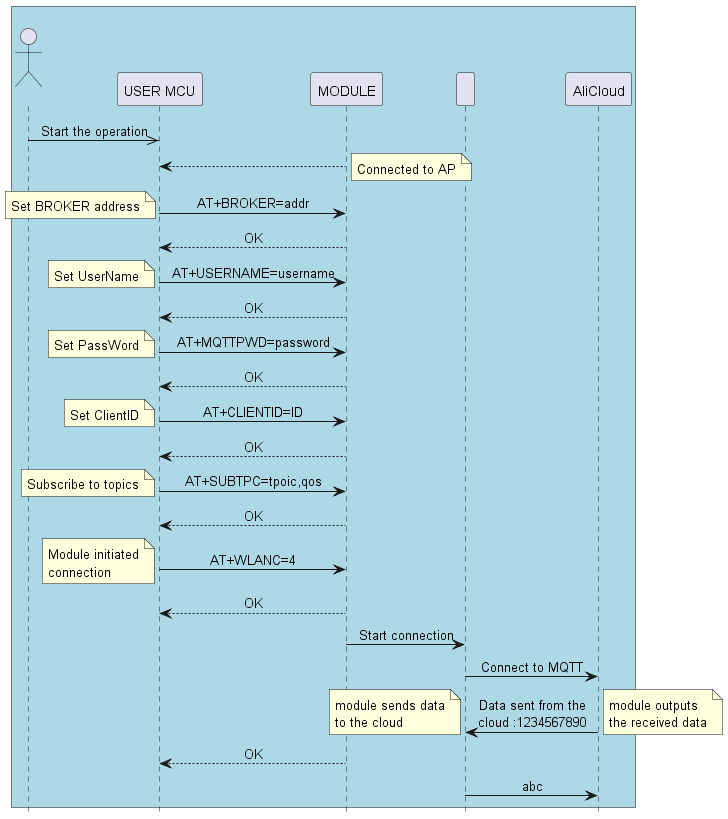

MQTT Application Flowchart

@startuml hide footbox skinparam sequenceMessageAlign center box #LightBlue actor “ ” as person participant “USER MCU” as mcu participant MODULE as module participant " " as nu participant "AliCloud" as cloud end box person ->> mcu: Start the operation module --> mcu: note right Connected to AP end note mcu -> module: AT+BROKER=addr note left Set BROKER address end note module --> mcu: OK mcu -> module: AT+USERNAME=username note left Set UserName end note module --> mcu: OK mcu -> module: AT+MQTTPWD=password note left Set PassWord end note module --> mcu: OK mcu -> module: AT+CLIENTID=ID note left Set ClientID end note module --> mcu: OK mcu -> module: AT+SUBTPC=tpoic,qos note left Subscribe to topics end note module --> mcu: OK mcu -> module: AT+WLANC=4 note left Module initiated connection end note module --> mcu: OK module -> nu: Start connection nu -> cloud: Connect to MQTT cloud -> nu: Data sent from the\ncloud :1234567890 note right module outputs the received data end note note left module sends data to the cloud end note module --> mcu: OK nu -> cloud: abc @enduml

MQTT Application Example

  1. Set the Wi-Fi mode

Send：<< AT+ROLE=1
Response：>> OK

  1. Connect to AP

Send：<< AT+RAP=ssid,password
Response：>> OK

  1. Query the IP address of the module

Send：<< AT+LIP
Response：>> +LIP=192.168.0.97   //For local examples, please refer to the actual IP address obtained by connecting to the AP
Response：>> OK

  1. Set the BROKER address

Send：<< AT+BROKER=gpssensor.ddns.net
Response：>> OK

  1. Set User Name

Send：<< AT+USERNAME=admin
Response：>> OK

  1. Set Password

Send：<< AT+MQTTPWD=12345678
Response：>> OK

  1. Subscribe to topics

Send：<< AT+SUBTPC=user/get,0
Response：>> OK

  1. Connect to MQTT

Send：<< AT+WLANC=4
Response：>> OK

  1. Receive the data sent by the cloud platform

1234567890

  1. Send data to the cloud platform

Send：<< AT+MQTTPUB=user/post,0,3,abc
Response：>> OK
